What HP motor do I need for my Tempstar unit?

The correct replacement for Tempstar model T4A318GKD200 — Condenser Fan | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T4A318GKD200 — Condenser Fan | Ships Today.

My AC fan is not spinning. What part do I need?

A fan that does not spin, spins slowly, or makes grinding or squealing noises needs a new motor. Grinding means the bearings have failed. Squealing means the bearings are dry. No spin with a humming sound means the capacitor may be the issue. Check the motor capacitor before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

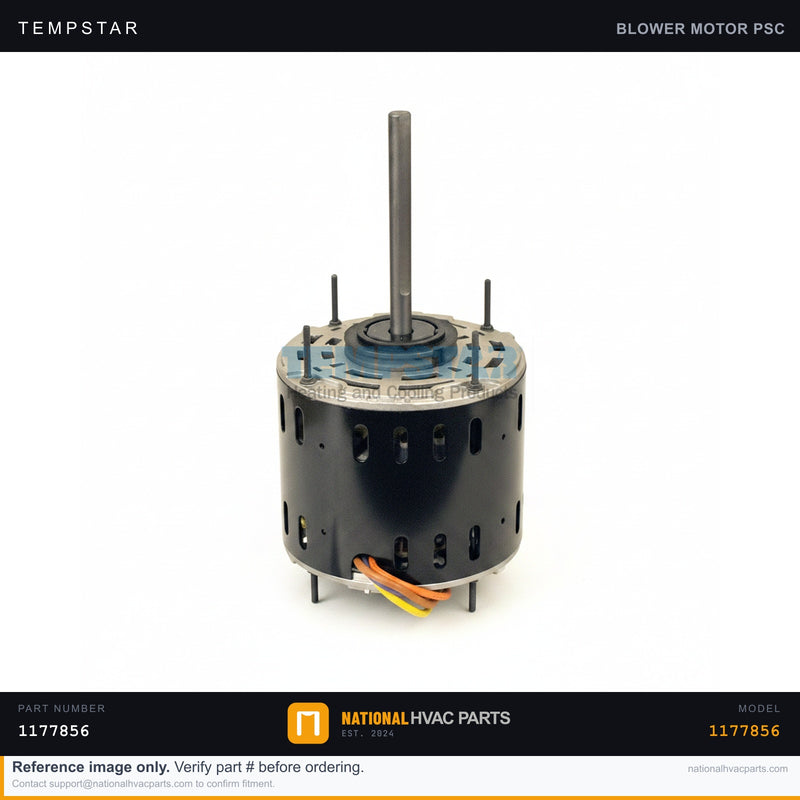

Tempstar 1/12 HP Fan Motor for T4A318GKD200 — Condenser Fan | Ships Today

Name: Tempstar 1/12 HP Fan Motor for T4A318GKD200 — Condenser Fan | Ships Today
Brand: Tempstar
SKU: 1177856-GEN
Price: 139.00 USD
Availability: InStock

SKU: 1177856-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM Tempstar 1/12 HP Condenser Fan Motor (part number 1177856) drives the outdoor fan that pulls air across the condenser coil to reject heat from your T4A318GKD200 system. When this motor fails, the unit loses its ability to shed heat — leading to high head pressure, warm air indoors, compressor overheating, and protection trips. Symptoms include a fan that won't spin, hums but won't start, runs slow, or makes loud bearing noise. Installing the correct OEM 1/12 HP motor restores proper airflow, head pressure, and cooling capacity.

Specifications

Spec	Value
Part Number	1177856
Type	Condenser Fan Motor
Brand	Tempstar (ICP / Heil)
Horsepower	1/12 HP
Application	Outdoor condenser fan
Fitment	OEM direct replacement

Compatibility

Factory-correct condenser fan motor for the Tempstar T4A318GKD200 condensing unit and matching ICP/Heil/Tempstar models that originally used part 1177856.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the top fan grille/panel of the condensing unit.
Document — Photograph all motor and capacitor wiring and the fan blade position before disconnecting.
Remove — Disconnect the leads, loosen the blade set screw and transfer the fan blade, then unbolt the old motor from the bracket.
Install — Mount the new motor, reinstall the blade at the same height, and reconnect leads (and run capacitor) per your photo.
Test — Restore power and verify the fan spins up smoothly in the correct direction at full speed.

Signs You Need a Replacement

Outdoor fan won't start or only hums
Loud grinding or bearing noise from the fan motor
System trips on high pressure or overheats
Warm air indoors with the condenser fan stopped or slow

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 1/12 HP Fan Motor for T...

$139.00

Frequently Asked Questions

Does this Fan Motor fit my Tempstar T4A318GKD200 — Condenser Fan | Ships Today?

Yes. This is the factory-specified OEM fan motor for the Tempstar T4A318GKD200 — Condenser Fan | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the fan motor on my Tempstar T4A318GKD200 — Condenser Fan | Ships Today?

Difficulty: Medium-Hard (1–2 hrs)
Step 1: Turn off breaker. Step 2: Note motor specs: HP, RPM, voltage, rotation direction. Step 3: Remove old motor from mounting. Step 4: Transfer fan blade to new motor. Step 5: Mount new motor, reconnect wiring. Step 6: Restore power, verify rotation direction.

My AC fan isn’t spinning. What part do I need?

Fan not spinning, spinning slowly, or making grinding/squealing noises = motor failure. Grinding = bearings failed. Squealing = bearings dry. No spin + hum = check the motor capacitor first before replacing the entire motor.

Is this fan motor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar fan motor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
