Overview

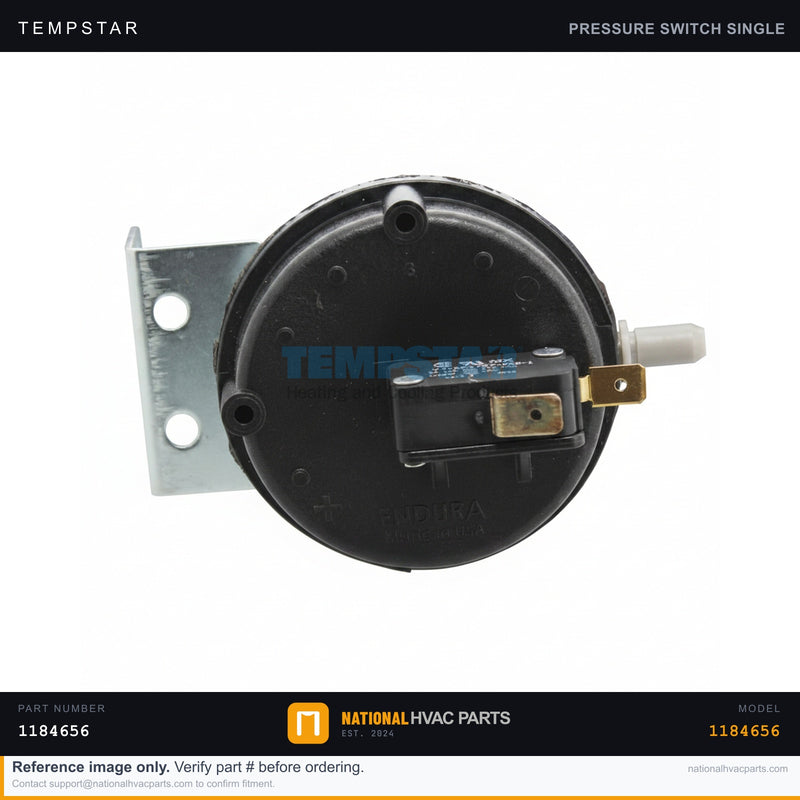

This OEM pressure switch set for the Tempstar TSH536GKA100 includes the high-pressure switch (part number 1184656) and the low-pressure switch (part number 1184655). These refrigerant safety switches protect the compressor by monitoring system pressure. The high-pressure switch opens the control circuit and shuts down the compressor when discharge pressure climbs too high — typically caused by a dirty condenser coil, a failing condenser fan, or an overcharge. The low-pressure switch opens when suction pressure drops too low, protecting against loss of charge, a stuck metering device, or restricted airflow. When either switch trips or fails, the unit will lock out or fail to start, often with no obvious mechanical fault.
Specifications
| Spec | Value |
|---|---|
| High Pressure Switch PN | 1184656 |
| Low Pressure Switch PN | 1184655 |
| Type | Refrigerant Pressure Safety Switch (Hi/Lo Set) |
| Brand | Tempstar |
| Function | Compressor protection / lockout |
| Fitment | OEM Replacement |
Compatibility
This high/low pressure switch set is the factory-specified replacement for the Tempstar TSH536GKA100 condensing unit. The 1184656 and 1184655 switches are also used across equivalent ICP-family units (Tempstar, Heil, Comfortmaker, Arcoaire). Confirm your unit uses both a high- and low-side switch before ordering the set.
Installation Guide
- Safety First — Disconnect power at the disconnect and breaker, and verify zero voltage with a multimeter before working on the unit.
- Access — Remove the service panel to reach the refrigerant lines and switch ports.
- Document — Photograph the wiring and the location of each switch before disconnecting.
- Remove — Pressure switches mount on Schrader-style ports that close when the switch is removed, so most units do not require recovery; disconnect the wires and unthread the old switch.
- Install — Thread in the new switch, snug it to seat the Schrader depressor, and reconnect the leads to the matching switch per your photo.
- Test — Restore power, run the system, and confirm pressures stay within range and the unit no longer locks out.
Signs You Need a Replacement
- Unit short-cycles or locks out on a pressure fault with no actual pressure problem
- Compressor will not start even though refrigerant charge is correct
- Intermittent shutdowns that clear when power is reset
- A switch that fails a continuity test outside its rated pressure range
