What MFD capacitor do I need for my Tempstar AC?

The correct replacement for Tempstar model T9MPX080J12A2 — 7.5 MFD 370V | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T9MPX080J12A2 — 7.5 MFD 370V | Ships Today.

My AC hums but will not start. What part do I need?

An AC that hums but will not start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost needed to start the compressor and fan motors. When it fails, you hear the hum of the motor trying to start but it cannot overcome inertia. Other symptoms include the fan spinning slowly, the AC cycling on and off rapidly, or a visibly swollen or leaking capacitor. Replacement cost: $15 to $80 for the part, DIY in 30 minutes.

Is this capacitor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

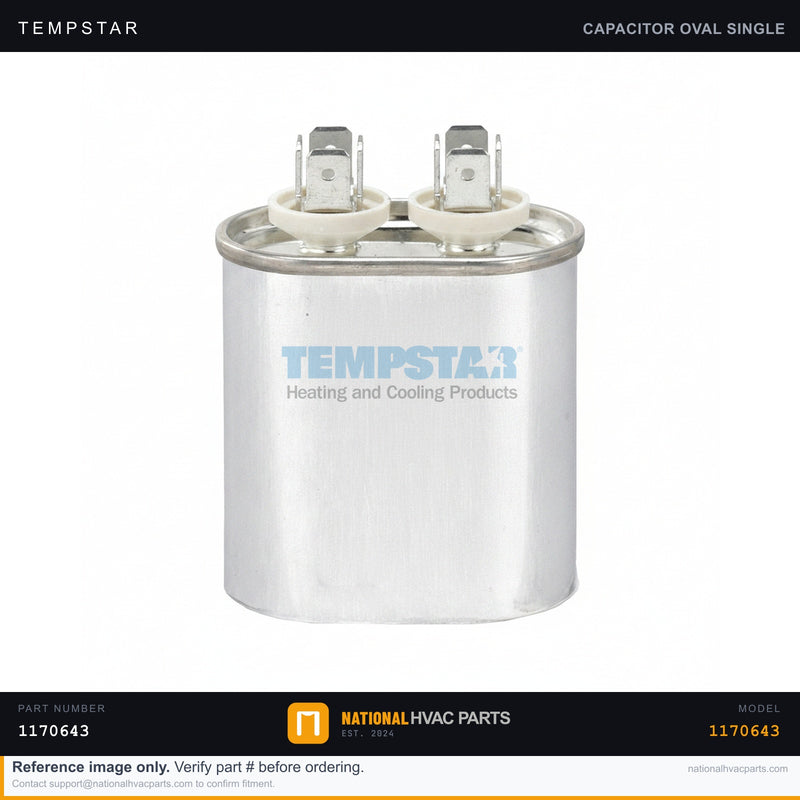

Tempstar Oval Run Capacitor for T9MPX080J12A2 — 7.5 MFD 370V | Ships Today

Name: Tempstar Oval Run Capacitor for T9MPX080J12A2 — 7.5 MFD 370V | Ships Today
Brand: Tempstar
SKU: 1170643-GEN
Price: 19.95 USD
Availability: InStock

SKU: 1170643-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM oval run capacitor (part 1170643) provides the constant phase shift that keeps the blower motor in your Tempstar T9MPX080J12A2 gas furnace running smoothly and efficiently. Rated at 7.5 MFD and 370/440 VAC, it stores and releases the charge that maintains motor torque during continuous operation. A weak or failed run capacitor is one of the most common furnace service calls — when it drifts out of tolerance or shorts, the blower motor draws excess amperage, overheats, hums without starting, or trips on thermal overload. Replacing it restores full airflow and protects the motor windings from premature failure.

Specifications

Spec	Value
OEM Part Number	1170643
Type	Single (Run) Capacitor, Oval
Brand	Tempstar (ICP / Heil)
Capacitance	7.5 MFD
Voltage	370/440 VAC
Tolerance	±6%
Application	Furnace Blower Motor

Compatibility

Engineered as a direct-fit replacement for the Tempstar T9MPX080J12A2 modulating gas furnace. The 1170643 capacitor is also shared across many ICP, Heil, Comfortmaker, and Carrier-built furnace platforms using the same blower assembly. Always verify the MFD and voltage rating stamped on your existing capacitor before installing.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter before touching any terminals.
Access — Remove the blower compartment service panel.
Document — Photograph all wire connections before disconnecting anything.
Remove — Discharge the old capacitor across its terminals with an insulated screwdriver, loosen the mounting strap, label and remove the spade connectors, and pull the old cap.
Install — Mount the new capacitor in the strap and reconnect each lead exactly as photographed.
Test — Restore power, start a heat or fan call, and confirm the blower spins up smoothly with normal amp draw.

Signs You Need a Replacement

Blower motor hums but will not start or starts slowly
Reduced or weak airflow at the registers
Motor running hot or tripping on thermal overload
Visible bulging, leaking, or swelling on the capacitor case

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day hassle-free returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Oval Run Capacitor for ...

$19.95

Frequently Asked Questions

Does this Capacitor fit my Tempstar T9MPX080J12A2 — 7.5 MFD 370V | Ships Today?

Yes. This is the factory-specified OEM capacitor for the Tempstar T9MPX080J12A2 — 7.5 MFD 370V | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the capacitor on my Tempstar T9MPX080J12A2 — 7.5 MFD 370V | Ships Today?

Difficulty: Easy (20–30 min)
Step 1: Turn off power at breaker. Step 2: Open condensing unit panel. Step 3: Photograph the old capacitor wiring (Common/Herm/Fan). Step 4: Discharge old capacitor with insulated screwdriver. Step 5: Disconnect and remove old capacitor. Step 6: Mount new capacitor, reconnect wires to matching terminals. Step 7: Close panel, restore power, test. Tools: screwdriver, needle-nose pliers.

My AC hums but won’t start. What part do I need?

An AC that hums but won’t start is the classic symptom of a failed capacitor. The capacitor provides the electrical boost to start the compressor. When it fails, you hear humming but the motor can’t overcome inertia. Other symptoms: fan spinning slowly, AC cycling on/off rapidly, or a visibly swollen capacitor. Fix: replace capacitor ($15–$80 DIY, 30 min).

Is this capacitor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar capacitor?

OEM strongly recommended. OEM capacitors have ±6% MFD tolerance vs aftermarket ±10%. The looser tolerance causes motor winding stress, higher temps, and shorter compressor life. Price difference is only $10–$20 — OEM is the clear value choice.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
