What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model TDE125J20B2 — HSI | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TDE125J20B2 — HSI | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

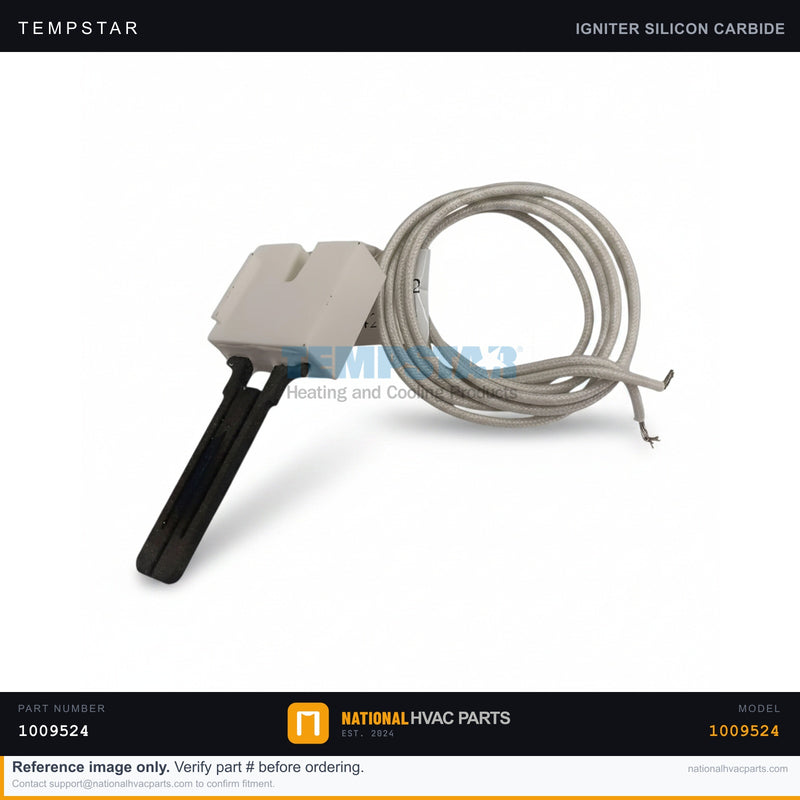

Tempstar Hot Surface Igniter & Sensor Kit for TDE125J20B2 — HSI | Ships Today

Name: Tempstar Hot Surface Igniter & Sensor Kit for TDE125J20B2 — HSI | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 34.95 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM Tempstar hot surface igniter and sensor kit (part #1009524) ignites the burners on each call for heat. When 24V is applied, the silicon-carbide/nitride element glows white-hot and lights the gas as it crosses the burners; the integrated sensor confirms flame. A failed igniter is one of the most common causes of no-heat calls — the furnace cycles the inducer and gas valve but never lights, or it ignites then shuts down on a failed flame-proving sequence. Igniter elements are brittle and degrade with every heating cycle, so replacement is routine maintenance on older furnaces.

Specifications

Spec	Value
Part Number	1009524
Type	Hot Surface Igniter / Sensor Kit (HSP)
Brand	Tempstar
Voltage	24V control
Application	Gas furnace ignition

Compatibility

Built as a direct OEM replacement for the Tempstar TDE125J20B2 gas furnace and compatible Heil, Comfortmaker, and ICP-family models using igniter kit 1009524. Verify your existing igniter part number and mounting before installing.

Installation Guide

Safety First — Disconnect power and shut off the gas; verify zero voltage with a multimeter.
Access — Remove the burner compartment service panel.
Document — Photo the igniter mounting position and wire connector routing.
Remove — Unplug the igniter connector and remove the mounting screw; handle the element only by its ceramic base, never the hot surface.
Install — Mount the new igniter, reconnect the plug, and confirm proper clearance to the burner.
Test — Restore gas and power, then run a full heat cycle to verify ignition and flame proving.

Signs You Need a Replacement

Furnace will not light despite inducer and gas valve cycling
Visible cracks or breaks in the igniter element
No glow when the igniter is energized
Repeated lockouts on failed ignition or flame sensing

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter & S...

$34.95

Frequently Asked Questions

Does this Igniter fit my Tempstar TDE125J20B2 — HSI | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar TDE125J20B2 — HSI | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar TDE125J20B2 — HSI | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
