What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model TNE100J20B1 — Silicon Nitride | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TNE100J20B1 — Silicon Nitride | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

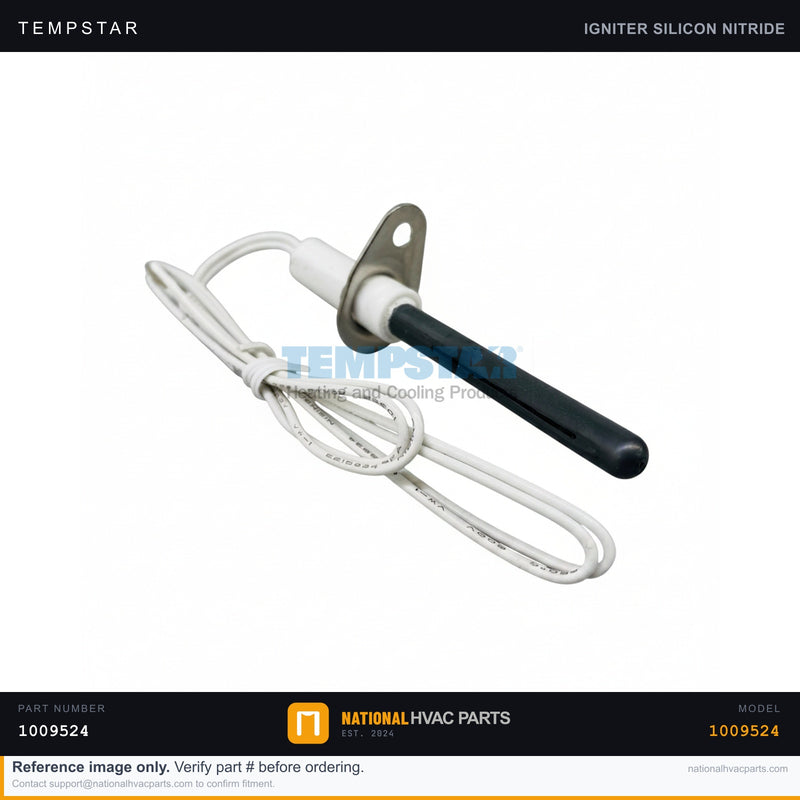

Tempstar Hot Surface Igniter/Sensor for TNE100J20B1 — Silicon Nitride | Ships Today

Name: Tempstar Hot Surface Igniter/Sensor for TNE100J20B1 — Silicon Nitride | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 39.95 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM hot surface igniter/sensor (part number 1009524, HSP-SK) is the ignition component for the Tempstar TNE100J20B1 gas furnace. When the thermostat calls for heat, the control board energizes this igniter; its element heats to over 2,000°F to light the burners, and the integrated sensor function confirms flame. A failed igniter is one of the most common no-heat causes on this furnace platform. The silicon-nitride-style element resists thermal shock better than older silicon carbide igniters, but it still wears out over years of cycling. A cracked or worn igniter produces no glow, a weak glow, or repeated ignition lockouts where the furnace tries several times and then shuts down.

Specifications

Spec	Value
Part Number	1009524
Type	Hot Surface Igniter / Sensor (HSP-SK)
Brand	Tempstar (ICP / Heil family)
Element	Silicon nitride style
Function	Ignition + flame sensing
Fitment	OEM direct replacement

Compatibility

Fits the Tempstar TNE100J20B1 and related ICP / Heil / Comfortmaker furnaces that use the 1009524 hot surface igniter assembly. Match the mounting bracket and connector to your existing igniter before installing.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker and verify zero voltage with a multimeter.
Access — Remove the burner compartment service panel.
Document — Photograph the igniter position, bracket, and connector routing.
Remove — Unplug the igniter connector and remove the mounting screw(s); handle the old igniter by the ceramic base only — never touch the element.
Install — Mount the new igniter using the ceramic base, reconnect the plug, and confirm the element sits correctly over the burner without touching metal.
Test — Restore power, call for heat, and watch for a clean glow, burner light-off, and steady flame.

Signs You Need a Replacement

Furnace ignites no flame — no glow visible at the igniter
Repeated ignition retries followed by lockout (often 3 tries)
Cracked, chipped, or discolored igniter element
Intermittent no-heat that clears after a power reset

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter/Sen...

$39.95

Frequently Asked Questions

Does this Igniter fit my Tempstar TNE100J20B1 — Silicon Nitride | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar TNE100J20B1 — Silicon Nitride | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar TNE100J20B1 — Silicon Nitride | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
