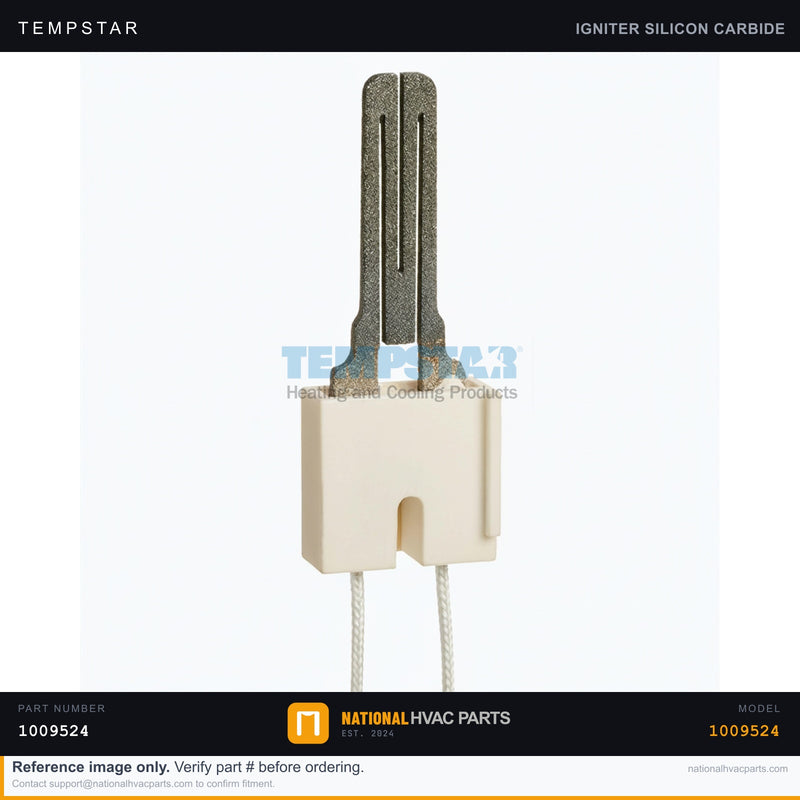

Tempstar Hot Surface Igniter/Sensor for T9MPV100J20A2 — 120V HSP Kit | Ships Today

Overview

This OEM hot surface igniter and sensor kit (part 1009524, HSP SK) is the ignition component for the Tempstar T9MPV100J20A2 gas furnace. When the thermostat calls for heat, the control board energizes this igniter, which heats to over 2,000°F to light the gas burners. The integrated flame-sensing function then confirms a stable flame so the gas valve stays open. A failed or cracked igniter is one of the most common causes of furnace no-heat calls. Symptoms include the furnace cycling on but never lighting, a glowing igniter that produces no flame, or a unit that locks out after several failed ignition attempts. This is a direct-fit replacement built to the original 120V specification.

Specifications

Compatibility

Engineered for the Tempstar T9MPV100J20A2 gas furnace and shared across compatible ICP / Heil / Comfortmaker platforms that use part 1009524. Always verify your model and part number before ordering.

Installation Guide

1. Safety First — Disconnect power at the furnace switch and breaker, shut off the gas, and verify zero voltage with a multimeter.
2. Access — Remove the burner compartment service panel.
3. Document — Photograph the igniter mounting and wire routing before disconnecting.
4. Remove — Unplug the igniter connector and remove the mounting screw(s). Handle the old igniter by its ceramic base only.
5. Install — Mount the new igniter, never touching the element with bare fingers, and reconnect per your photo.
6. Test — Restore gas and power, then run a heat cycle to confirm the igniter glows, lights the burners, and proves flame.

Signs You Need a Replacement

• Igniter glows but burners never light
• Furnace locks out after 3+ ignition attempts
• Visible cracks or hot spots on the igniter element
• No glow at all during a call for heat

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
