What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model T9MPV100J20A1 — 120V HSP Kit | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T9MPV100J20A1 — 120V HSP Kit | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

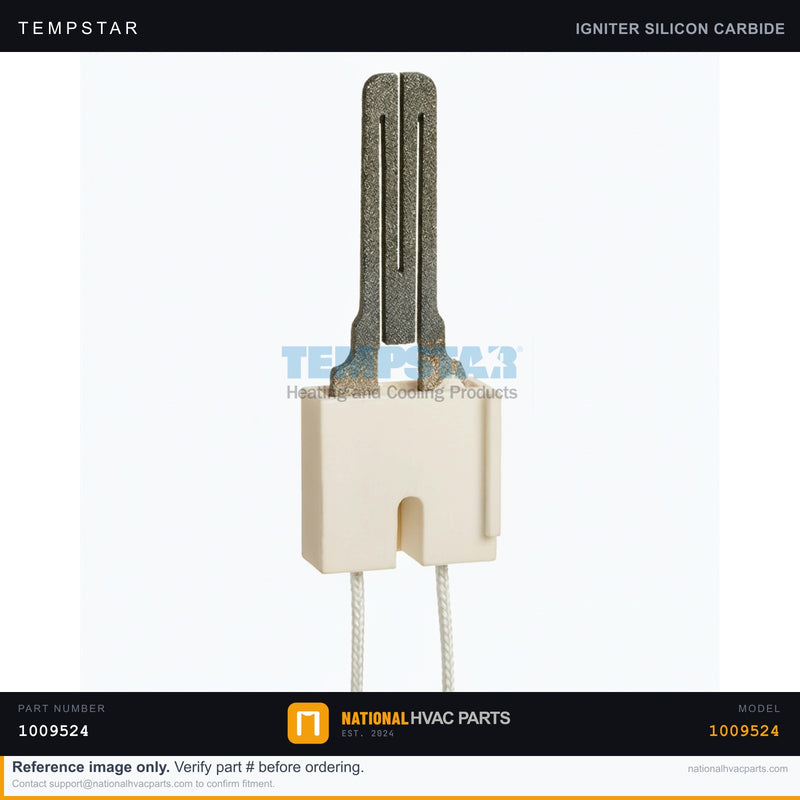

Tempstar Hot Surface Igniter/Sensor for T9MPV100J20A1 — 120V HSP Kit | Ships Today

Name: Tempstar Hot Surface Igniter/Sensor for T9MPV100J20A1 — 120V HSP Kit | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 32.00 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM hot surface igniter and sensor kit (part 1009524, HSP SK) is the ignition component for the Tempstar T9MPV100J20A1 gas furnace. On a call for heat the control board energizes the igniter, which heats past 2,000°F to light the gas burners, and its flame-sensing function confirms a stable flame so the gas valve stays open. A cracked or burned-out igniter is among the most common no-heat failures. Watch for a furnace that cycles but never lights, a glowing igniter with no flame, or repeated ignition lockouts. This direct-fit 120V replacement restores reliable startup.

Specifications

Spec	Value
Part Number	1009524
Type	Hot Surface Igniter / Sensor (HSP)
Brand	Tempstar
Voltage	120V
Function	Ignition + flame sensing
Fitment	OEM direct replacement

Compatibility

Engineered for the Tempstar T9MPV100J20A1 gas furnace and shared across compatible ICP / Heil / Comfortmaker platforms using part 1009524. Verify your model and part number before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, shut off the gas, and verify zero voltage with a multimeter.
Access — Remove the burner compartment service panel.
Document — Photograph the igniter mounting and wire routing before disconnecting.
Remove — Unplug the igniter connector and remove the mounting screw(s), handling the old igniter by its ceramic base.
Install — Mount the new igniter without touching the element, and reconnect per your photo.
Test — Restore gas and power, then run a heat cycle to confirm glow, ignition, and flame proof.

Signs You Need a Replacement

Igniter glows but burners never light
Furnace locks out after 3+ ignition attempts
Visible cracks or hot spots on the element
No glow at all during a call for heat

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter/Sen...

$32.00

Frequently Asked Questions

Does this Igniter fit my Tempstar T9MPV100J20A1 — 120V HSP Kit | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar T9MPV100J20A1 — 120V HSP Kit | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar T9MPV100J20A1 — 120V HSP Kit | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
