What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model T8MPV125J20A1 — HSP SK | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T8MPV125J20A1 — HSP SK | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

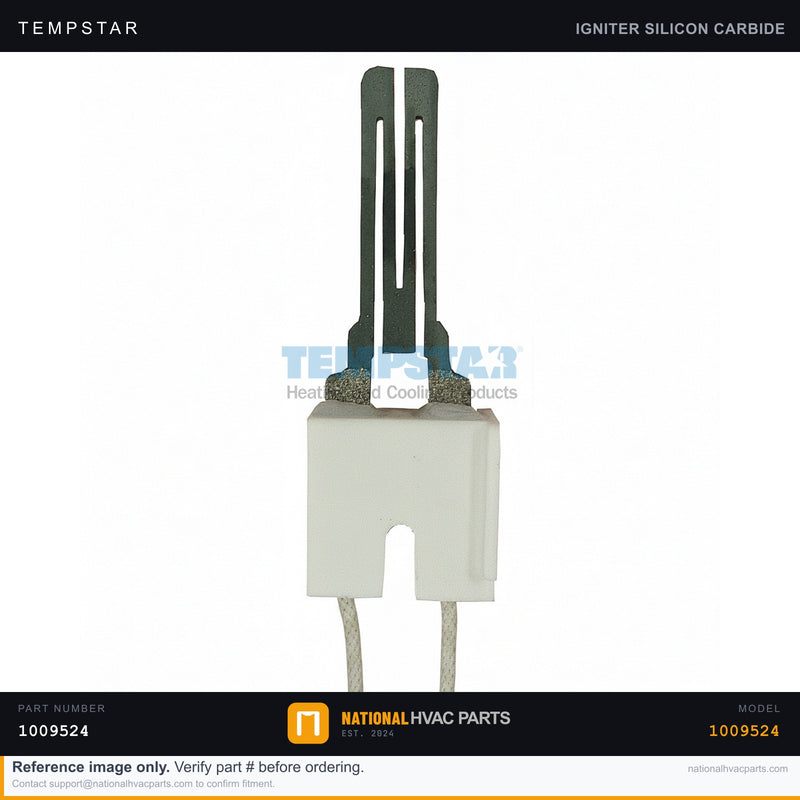

Tempstar Hot Surface Igniter/Sensor for T8MPV125J20A1 — HSP SK | Ships Today

Name: Tempstar Hot Surface Igniter/Sensor for T8MPV125J20A1 — HSP SK | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 42.00 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM hot surface igniter/sensor (part number 1009524, HSP SK) serves the Tempstar T8MPV125J20A1 gas furnace. It is a combined silicon-nitride hot surface igniter and flame-sensing element: on a call for heat the control board energizes it to glow and light the burners, and it also confirms flame presence so the board keeps the gas valve open. Silicon-nitride HSP igniters are more durable than older silicon-carbide elements but still fail from thermal fatigue, soot contamination, or cracking. When it fails the furnace will not light, or it will light and then shut down on a flame-sense fault after a few seconds.

Specifications

Spec	Value
Part Number	1009524
Type	Hot Surface Igniter / Sensor (HSP SK)
Element	Silicon Nitride
Brand	Tempstar (ICP / Heil)
Application	Gas Furnace Ignition & Flame Sensing

Compatibility

Engineered for the Tempstar T8MPV125J20A1 furnace and shared across ICP-family furnaces (Heil, Comfortmaker, Arcoaire, KeepRite) that use the HSP SK silicon-nitride igniter/sensor. Verify the part number and connector against your existing unit before installing.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker and verify zero voltage with a multimeter before handling any wiring.
Access — Remove the burner-compartment service panel.
Document — Photograph the igniter position, bracket, and harness routing before disconnecting.
Remove — Unplug the connector and remove the mounting screw(s); handle the old igniter by the ceramic base only, never the element.
Install — Mount the new igniter/sensor so the element sits correctly in the burner flame path without touching it bare-handed, then reconnect the harness.
Test — Restore power and confirm the element glows, the burners light, and the furnace holds flame without locking out.

Signs You Need a Replacement

No glow on a call for heat
Furnace lights then shuts down on a flame-sense fault
Repeated ignition lockouts after several trials
Visible cracking or breakage in the element

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter/Sen...

$42.00

Frequently Asked Questions

Does this Igniter fit my Tempstar T8MPV125J20A1 — HSP SK | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar T8MPV125J20A1 — HSP SK | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar T8MPV125J20A1 — HSP SK | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
