What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model TNK100J16A1 — Igniter/Sensor HSP | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TNK100J16A1 — Igniter/Sensor HSP | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

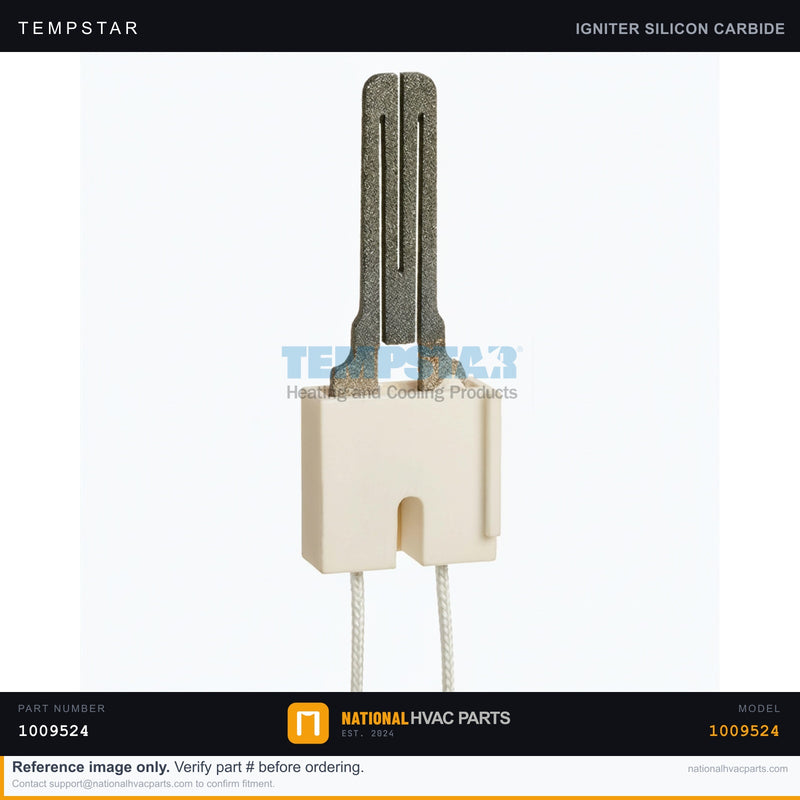

Tempstar Hot Surface Igniter for TNK100J16A1 — Igniter/Sensor HSP | Ships Today

Name: Tempstar Hot Surface Igniter for TNK100J16A1 — Igniter/Sensor HSP | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 39.95 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM hot surface igniter/sensor (part number 1009524, HSP SK) is the ignition source for the Tempstar TNK100J16A1 gas furnace. On a call for heat, the control board energizes the igniter; it glows red-hot and ignites the gas at the burners. The same HSP element also serves a sensing function in this design, confirming flame so the board keeps the gas valve open. Hot surface igniters are the most common furnace failure point — the brittle silicon-carbide element cracks with thermal cycling, age, or rough handling. When it fails, the furnace will not light and typically locks out on an ignition fault.

Specifications

Spec	Value
Part Number	1009524
Type	Hot Surface Igniter / Sensor (HSP SK)
Brand	Tempstar (ICP / Heil)
Function	Ignition + Flame Sensing
Fit	OEM
Application	Gas Furnace

Compatibility

Direct factory replacement for the Tempstar TNK100J16A1. Because ICP shares ignition systems across its Tempstar, Heil, and Comfortmaker furnace lines, this HSP igniter fits numerous sibling models. Verify the connector and mounting bracket match your existing igniter.

Installation Guide

Safety First — Disconnect power and shut off the gas; verify zero voltage with a multimeter before working near the burners.
Access — Remove the burner/control compartment service panel.
Document — Photograph the igniter position, bracket, and wire routing before disconnecting.
Remove — Unplug the igniter connector, remove the mounting screw, and carefully withdraw the old element. Never touch the new igniter's surface with bare fingers — skin oils shorten its life.
Install — Mount the new igniter so it sits correctly in the burner flame path, secure the screw, and reconnect the plug per your photo.
Test — Restore gas and power, run a heat cycle, and confirm the igniter glows and the burners light reliably.

Signs You Need a Replacement

Furnace will not ignite or locks out after several tries
No visible glow at the igniter during a heat call
Cracked, chipped, or blistered igniter element
Intermittent no-heat that clears after a reset

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter for...

$39.95

Frequently Asked Questions

Does this Igniter fit my Tempstar TNK100J16A1 — Igniter/Sensor HSP | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar TNK100J16A1 — Igniter/Sensor HSP | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar TNK100J16A1 — Igniter/Sensor HSP | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
