Tempstar Hot Surface Igniter for TNE125J20G1 — Silicon Nitride | Ships Today
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Overview

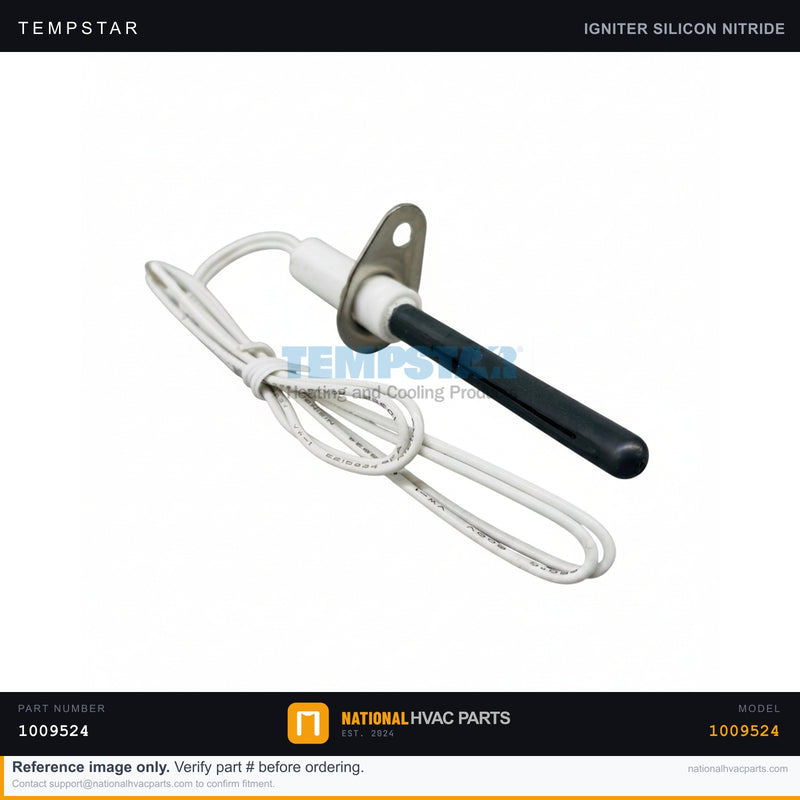

This genuine OEM hot surface igniter/sensor (part #1009524) is the ignition source for the Tempstar TNE125J20G1 gas furnace. On a call for heat the control board sends line voltage to the igniter, which glows white-hot to light the burners, then doubles as a flame-proving element on this combined ignitor/sensor design. The silicon nitride element is more durable and resistant to thermal shock than older silicon carbide igniters. When this part fails, the furnace blower may run but the burners never light, producing no heat and often a lockout fault after several ignition retries. A cracked element, a no-glow condition, or repeated ignition lockouts all point to a failing igniter.
Specifications
| Spec | Value |
|---|---|
| Part Number | 1009524 |
| Type | Hot Surface Igniter / Sensor (HSI) |
| Element | Silicon Nitride |
| Brand | Tempstar (ICP / Heil) |
| Voltage | 120V |
| Function | Ignition + flame sense |
| Fitment | OEM direct replacement |
Compatibility
Built for the Tempstar TNE125J20G1 and shared across many ICP, Heil, and Comfortmaker furnaces using the SmartLite / SK-series hot surface igniter. Confirm the connector style and mounting bracket match your existing igniter before installing.
Installation Guide
- Safety First — Disconnect power at the breaker and shut off the gas supply; verify zero voltage with a multimeter.
- Access — Remove the furnace burner-compartment service panel.
- Document — Photograph the igniter position, bracket, and wire routing before disconnecting.
- Remove — Unplug the igniter harness, remove the mounting screw, and lift out the old igniter. Handle only by the ceramic base — never touch the element.
- Install — Mount the new igniter so the element sits in the burner flame path, secure the screw, and reconnect the harness.
- Test — Restore gas and power, start a heat cycle, and verify the igniter glows and lights the burners cleanly.
Signs You Need a Replacement
- Blower runs but burners never light (no heat)
- Furnace locks out after several ignition attempts
- Igniter shows no glow on a call for heat
- Visible crack, chip, or white spots on the element
