What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

Tempstar Hot Surface Igniter for TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today

Name: Tempstar Hot Surface Igniter for TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 34.95 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

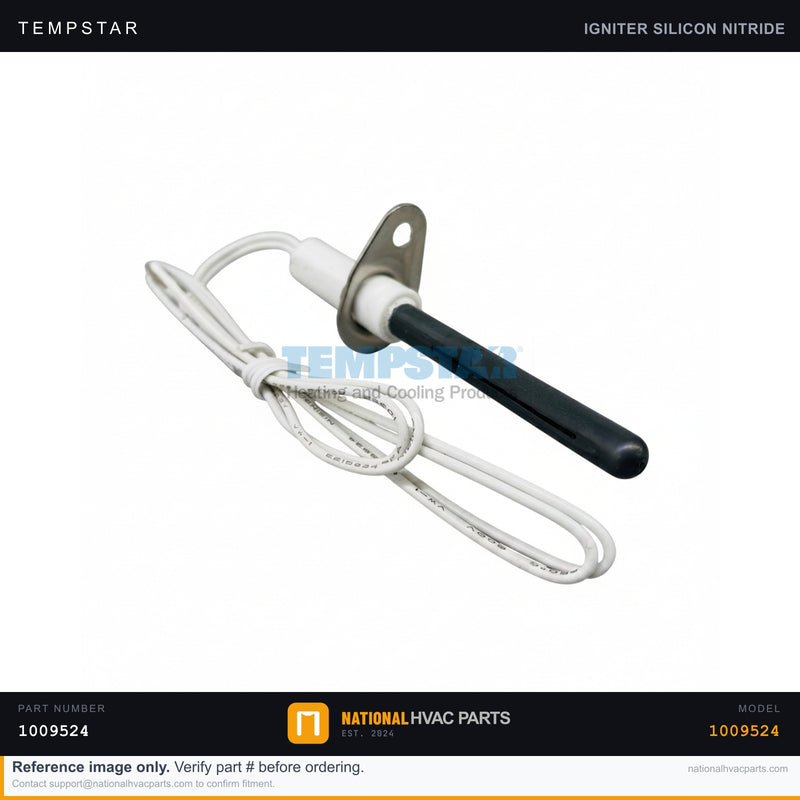

This OEM hot surface igniter (part number 1009524) is the ignition component for the Tempstar TNE125J20B1 gas furnace. It is a durable silicon-nitride "SmartLite"-style igniter/sensor that electrically heats to roughly 2,500°F to light the burners on each call for heat. Unlike fragile silicon-carbide igniters, the silicon-nitride element resists cracking from thermal cycling and contamination, giving longer service life. When this igniter fails you will typically see the furnace try to ignite, fail, and lock out — producing a no-heat condition, repeated clicking, or a control board flashing an ignition-failure fault code.

Specifications

Spec	Value
Part Number	1009524
Description	Igniter / Sensor HSP SK
Type	Hot Surface Igniter (Silicon Nitride)
Brand	Tempstar (ICP / Heil)
Fits Model	TNE125J20B1
Fit	OEM Replacement

Compatibility

Engineered as a direct OEM replacement for the Tempstar TNE125J20B1 furnace and shared across ICP / Heil / Comfortmaker / Tempstar platforms that use the 1009524 igniter/sensor assembly. Always confirm your existing part number before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker; verify zero voltage with a multimeter.
Access — Remove the lower service/burner access panel.
Document — Photograph the igniter bracket and wire routing before disconnecting.
Remove — Unplug the igniter connector, remove the mounting screw, and lift out the old igniter without touching the ceramic element.
Install — Mount the new igniter by its bracket only, align it over the burner per your photo, and reconnect the plug.
Test — Restore power, start a heat cycle, and confirm the igniter glows and the burners light.

Signs You Need a Replacement

Furnace ignites no heat and locks out after several tries.
Igniter no longer glows or glows weakly/unevenly.
Visible cracks, blistering, or white spots on the ceramic element.
Control board flashing an ignition-failure or flame-fault code.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter for...

$34.95

Frequently Asked Questions

Does this Igniter fit my Tempstar TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar TNE125J20B1 — Silicon Nitride OEM 1009524 | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
