What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model TCK100J16A1 — Silicon Nitride HSI | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TCK100J16A1 — Silicon Nitride HSI | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

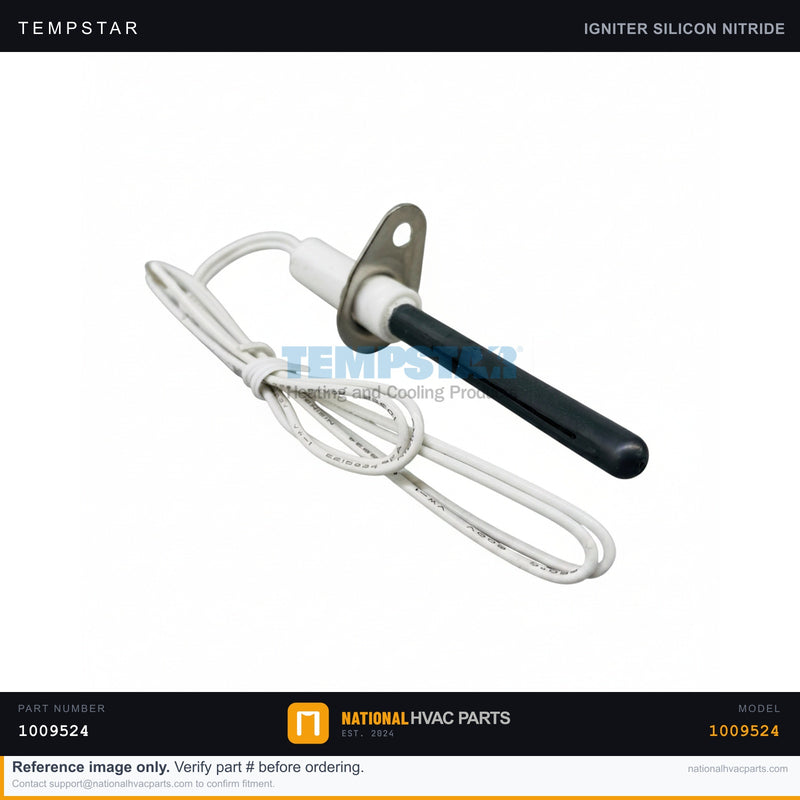

Tempstar Hot Surface Igniter for TCK100J16A1 — Silicon Nitride HSI | Ships Today

Name: Tempstar Hot Surface Igniter for TCK100J16A1 — Silicon Nitride HSI | Ships Today
Brand: Tempstar
SKU: 1009524-GEN
Price: 34.95 USD
Availability: InStock

SKU: 1009524-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM hot surface igniter (HSI) — part number 1009524 (IGNITOR/SENSOR HSP SK) — is the ignition component for the Tempstar TCK100J16A1 gas furnace. On each call for heat, the control board energizes the igniter, which glows to roughly 2,000°F to ignite the gas at the burners. A silicon-nitride hot surface element provides faster, more durable, and more reliable ignition than legacy carbide igniters. When this part fails, the furnace will not light and the system locks out after repeated trial-for-ignition attempts. Typical symptoms include no heat, a furnace that clicks but never fires, and a visibly cracked or no-longer-glowing element.

Specifications

Spec	Value
Part Number	1009524
Description	Ignitor/Sensor HSP Service Kit
Type	Hot Surface Igniter
Brand	Tempstar (ICP/Heil family)
Voltage	120V
Element	Silicon Nitride
Fitment	OEM Direct Replacement

Compatibility

Engineered as a direct OEM fit for the Tempstar TCK100J16A1 furnace and other ICP/Heil/Comfortmaker units that use the 1009524 ignitor/sensor service kit. Always verify your existing part number before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker; verify zero voltage with a multimeter and shut off the gas.
Access — Remove the furnace burner/control access panel.
Document — Photograph the igniter bracket and wiring before disconnecting.
Remove — Unplug the igniter harness and remove the mounting screw; handle the old igniter by the ceramic base only, never the element.
Install — Mount the new igniter, confirm proper position over the burner, and reconnect the harness per your photo. Do not touch the new element with bare hands.
Test — Restore gas and power, then run a heat cycle and confirm the igniter glows and the burners light.

Signs You Need a Replacement

Furnace will not ignite or produces no heat
Igniter no longer glows during the heat cycle
Visible cracks, chips, or breaks in the element
Repeated ignition lockouts or short-cycling on a call for heat

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter for...

$34.95

Frequently Asked Questions

Does this Igniter fit my Tempstar TCK100J16A1 — Silicon Nitride HSI | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar TCK100J16A1 — Silicon Nitride HSI | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar TCK100J16A1 — Silicon Nitride HSI | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
