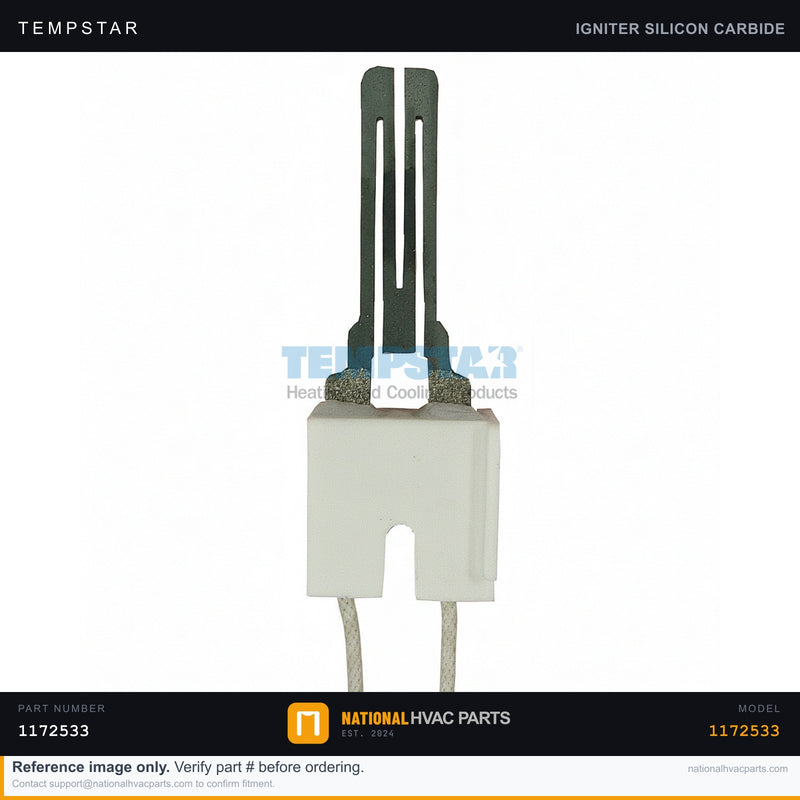

Tempstar Hot Surface Igniter for T9UHX100L20A2 — HSI 120V | Ships Today

Overview

This OEM hot surface igniter (HSI, part #1172533) is the component that lights the burners in your Tempstar T9UHX100L20A2 gas furnace. On each heat call the control board energizes the igniter, which glows white-hot to ignite gas at the burners. Because the silicon-carbide or silicon-nitride element is heated and cooled hundreds of times per season, it becomes brittle and is one of the most frequent no-heat failure points. Symptoms of a failed igniter include the furnace blower running with no flame, no glow at the igniter on a heat call, repeated ignition lockouts, or the system short-cycling on a failed ignition sequence. Related gas valve 1175705 (VR8205S) is used in the same ignition circuit.

Specifications

Compatibility

Direct OEM replacement igniter for the Tempstar T9UHX100L20A2 gas furnace and matching ICP/Heil/Comfortmaker variants using the same HSI assembly. Match the mounting bracket and plug connector to your existing igniter before installing.

Installation Guide

1. Safety First — Shut off gas and disconnect power to the furnace, then verify zero voltage with a multimeter.
2. Access — Remove the furnace burner/service panel to reach the igniter.
3. Document — Photograph the igniter position, wire routing, and connector before disconnecting.
4. Remove — Unplug the igniter connector and remove the mounting screw; handle by the ceramic base only, never the element.
5. Install — Mount the new igniter, taking care not to touch the element with bare fingers, and reconnect the plug.
6. Test — Restore gas and power, call for heat, and confirm the igniter glows and lights the burners.

Signs You Need a Replacement

• Blower runs but burners never light (no heat)
• No glow at the igniter on a heat call
• Visible cracks or breaks in the igniter element
• Repeated ignition lockouts or short-cycling

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
