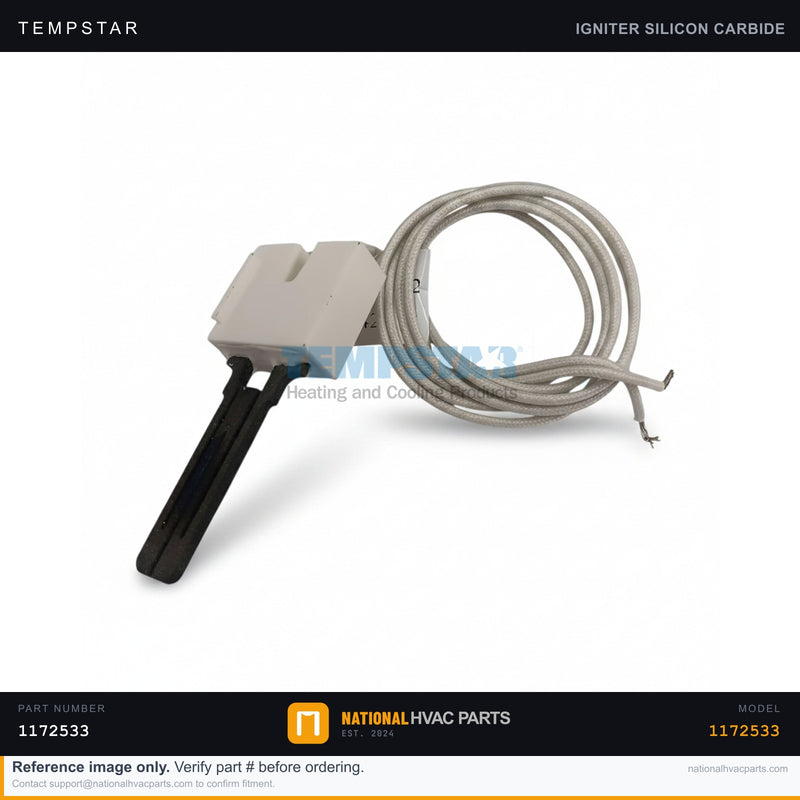

Tempstar Hot Surface Igniter for T8MPT075F14B1 — HSI Furnace Ignitor | Ships Today

Overview

This genuine OEM hot surface igniter (HSI, part number 1172533) provides the glowing element that lights the burners on your Tempstar T8MPT075F14B1 two-stage gas furnace. On a call for heat the control board energizes the igniter until it reaches ignition temperature, then opens the gas valve. The igniter is a normal wear item — the silicon nitride/carbide element becomes brittle with thermal cycling and eventually cracks, leaving the furnace unable to light. This is the single most common no-heat failure on hot surface ignition furnaces.

Specifications

Compatibility

Built for the Tempstar T8MPT075F14B1 gas furnace and other ICP-family units (Tempstar, Heil, Comfortmaker) using this HSI element. Commonly serviced alongside the two-stage Honeywell VR8205Q gas valve (part 1172822). Match the igniter element profile and connector to your original.

Installation Guide

1. Safety First — Disconnect power at the switch and breaker, then verify zero voltage with a multimeter. Handle the new igniter only by its ceramic base — never touch the element.
2. Access — Remove the burner compartment access panel.
3. Document — Photograph the igniter position and wiring connector.
4. Remove — Unplug the connector, remove the mounting screw, and lift out the cracked igniter.
5. Install — Seat the new igniter at the correct depth and alignment over the burner, secure the screw, and reconnect the plug.
6. Test — Restore power, initiate a call for heat, and confirm the element glows and the burners light.

Signs You Need a Replacement

• Furnace will not light — no glow at the igniter
• Visible crack or break in the igniter element
• Furnace locks out after several failed ignition attempts
• Intermittent ignition or delayed light-off
