What igniter fits my Tempstar furnace?

The correct replacement for Tempstar model T8MPL075F16B1 — HSI Furnace Kit | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T8MPL075F16B1 — HSI Furnace Kit | Ships Today.

My furnace will not ignite. What part is bad?

A furnace that will not ignite after the draft inducer runs typically has a failed igniter. The hot surface igniter should glow bright orange within 60 seconds. If it does not glow at all, it is cracked or burned out. If it glows weakly, it is degrading and should be replaced preventively. Average lifespan: 3 to 7 years.

Is this igniter compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

Tempstar Hot Surface Igniter for T8MPL075F16B1 — HSI Furnace Kit | Ships Today

Name: Tempstar Hot Surface Igniter for T8MPL075F16B1 — HSI Furnace Kit | Ships Today
Brand: Tempstar
SKU: 1172533-GEN
Price: 34.95 USD
Availability: InStock

SKU: 1172533-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

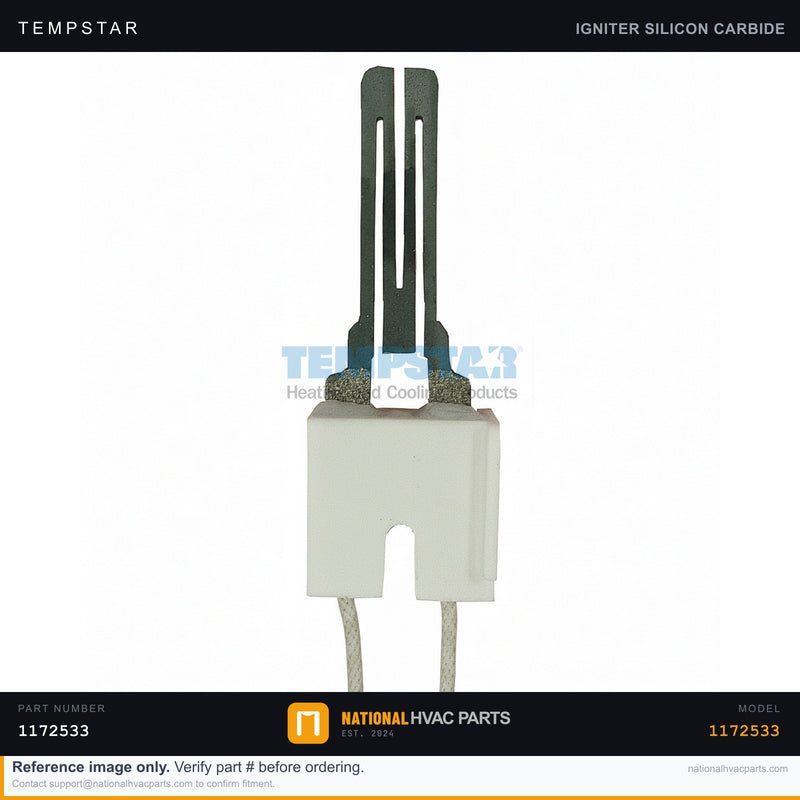

This OEM hot surface igniter (HSI) is the direct-fit ignition component for the Tempstar T8MPL075F16B1 gas furnace. The igniter is a silicon-carbide element that glows red-hot when energized by the control board, lighting the gas at the burners on every call for heat. Because it cycles each heating cycle, the igniter is among the most common furnace wear parts. OEM part numbers covered: 1172533 (IGNITOR HSI) and the related 1172821 (VALVE N HSI SNAP HW VR8205S) gas-valve assembly referenced for this model. Typical failure symptoms include no ignition, a furnace that clicks but never lights, a cracked or visibly fractured igniter element, or a unit that locks out after repeated failed ignition attempts.

Specifications

Spec	Value
Part Number	1172533 (HSI)
Related Part	1172821 (Valve/HSI Snap HW VR8205S)
Type	Hot Surface Igniter
Brand	Tempstar
Element	Silicon Carbide
Voltage	120V
Application	Gas Furnace Burner Ignition

Compatibility

Engineered as a direct replacement for the Tempstar T8MPL075F16B1 gas furnace and shared ICP/Heil/Comfortmaker platforms that use the same burner and ignition assembly. Always confirm the OEM part number on your existing igniter before ordering.

Installation Guide

Safety First — Disconnect power at the furnace switch and breaker, shut off the gas, and verify zero voltage with a multimeter.
Access — Remove the furnace burner-compartment service panel.
Document — Photograph the igniter bracket and wiring before disconnecting.
Remove — Unplug the igniter connector, remove the mounting screw(s), and lift the old igniter out without touching the ceramic element.
Install — Mount the new igniter, handling it only by the ceramic base, then reconnect the plug per your photo.
Test — Restore gas and power, run a heat cycle, and confirm the igniter glows and the burners light cleanly.

Signs You Need a Replacement

Furnace blower runs but burners never ignite.
Igniter element is cracked, broken, or no longer glows.
Repeated ignition lockouts or error codes for failed ignition.
No heat despite the thermostat calling for it.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Hot Surface Igniter for...

$34.95

Frequently Asked Questions

Does this Igniter fit my Tempstar T8MPL075F16B1 — HSI Furnace Kit | Ships Today?

Yes. This is the factory-specified OEM igniter for the Tempstar T8MPL075F16B1 — HSI Furnace Kit | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the igniter on my Tempstar T8MPL075F16B1 — HSI Furnace Kit | Ships Today?

Difficulty: Medium (20–30 min)
Step 1: Turn off power and gas. Step 2: Open furnace panel. Step 3: Locate igniter near burners. Step 4: Disconnect two-wire plug. Step 5: Remove mounting screw. Step 6: Install new igniter — do NOT touch element with fingers. Step 7: Reconnect, close panel, restore power/gas.

My furnace won’t ignite. What part is bad?

Furnace won’t ignite after the draft inducer runs = failed igniter. The hot surface igniter should glow bright orange within 60 seconds. No glow = cracked/burned out. Weak glow = degrading. Average lifespan: 3–7 years. Replacement: $15–$40 DIY.

Is this igniter compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar igniter?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
