Tempstar Hot Surface Igniter for T8MPL075B12B1 | OEM 1172533 HSI | Ships Today
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Overview

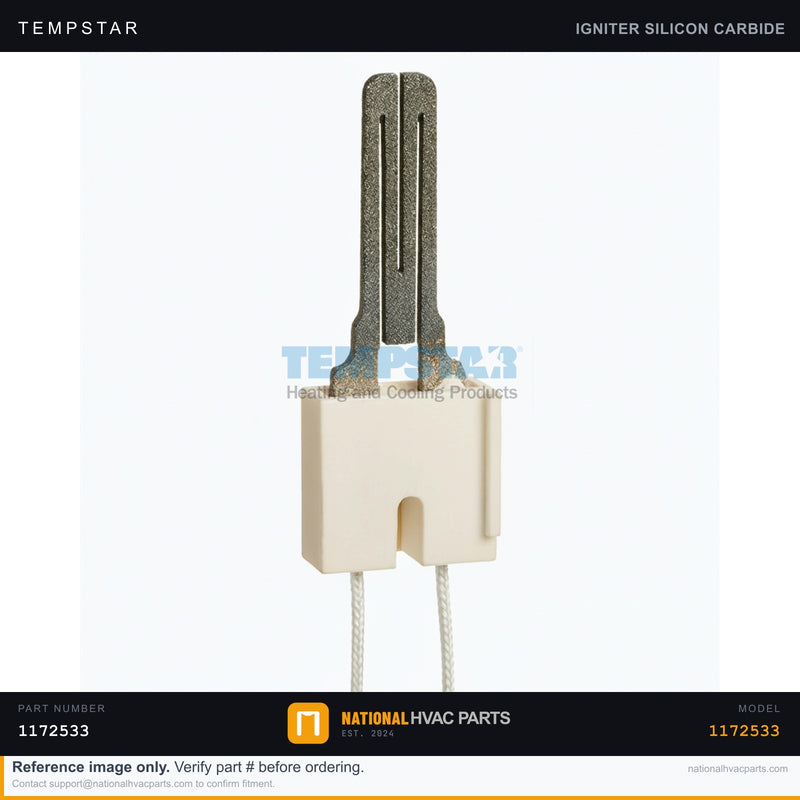

This genuine OEM hot surface igniter (HSI, part number 1172533) is the ignition source for the Tempstar T8MPL075B12B1 gas furnace. On each call for heat the control board energizes the igniter, which glows red-hot to ignite the gas at the burners. Hot surface igniters are a common wear item: the brittle silicon-carbide element degrades with every heating cycle and eventually cracks, leaving the furnace unable to light. Symptoms include the inducer running and gas valve clicking but no flame, or the furnace locking out after several failed ignition attempts. This factory-correct igniter restores reliable first-try ignition. This listing also references companion gas valve part 1172821 (Honeywell VR8205S) used in the same ignition system.
Specifications
| Spec | Value |
|---|---|
| Primary Part Number | 1172533 |
| Type | Hot Surface Igniter (HSI) |
| Brand | Tempstar (ICP) |
| Related Gas Valve | 1172821 (Honeywell VR8205S) |
| Element | Silicon carbide |
| Fitment | OEM exact replacement |
Compatibility
Fits the Tempstar T8MPL075B12B1 gas furnace and related ICP-built models under the Tempstar, Heil, and Comfortmaker brands that use this hot surface ignition system. Confirm the igniter style and mounting bracket match your original before ordering.
Installation Guide
- Safety First - Disconnect power at the furnace switch and breaker, then verify zero voltage with a multimeter before working.
- Access - Remove the burner compartment service panel.
- Document - Photograph the igniter position and wiring before disconnecting.
- Remove - Unplug the igniter connector, remove the mounting screw, and carefully withdraw the old igniter without touching the element.
- Install - Mount the new igniter (handle only by the ceramic base, never the silicon-carbide element), position it correctly over the burner, and reconnect the plug.
- Test - Restore power and run a heat cycle to confirm the igniter glows and lights the burners on the first attempt.
Signs You Need a Replacement
- Igniter no longer glows during a call for heat
- Visible crack or break in the silicon-carbide element
- Furnace locks out after repeated failed ignition attempts
- Inducer and gas valve cycle but the burners never light
