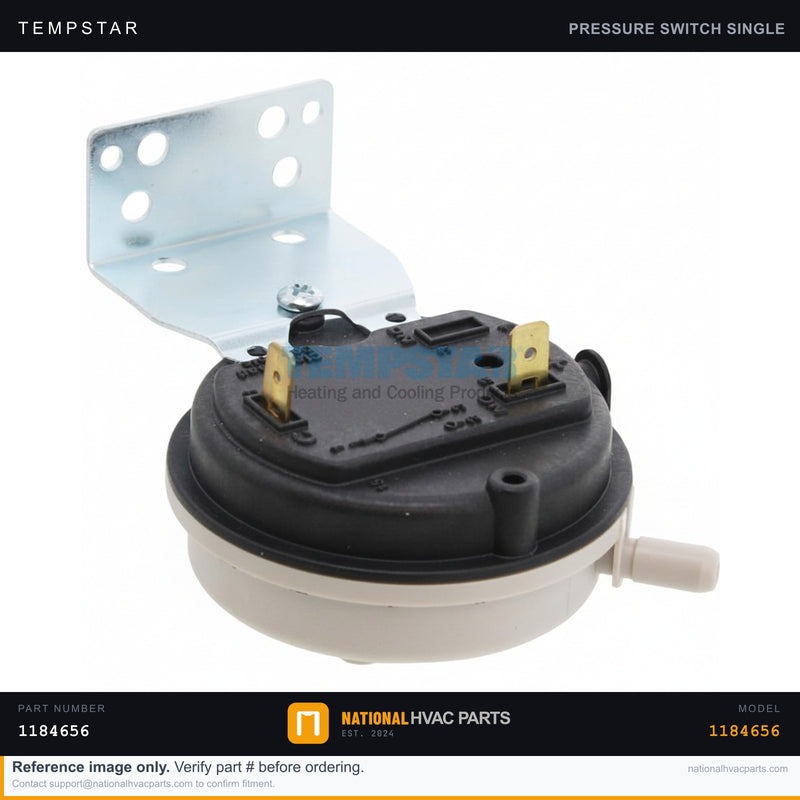

Tempstar Hi/Lo Pressure Switch Set for TSH436GKA101 — 24V Safety | Ships Today

Name: Tempstar Hi/Lo Pressure Switch Set for TSH436GKA101 — 24V Safety | Ships Today
Brand: Tempstar
SKU: 1184656-GEN
Price: 38.00 USD
Availability: InStock

SKU: 1184656-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM high/low refrigerant pressure switch set protects the Tempstar TSH436GKA101 heat pump from running outside safe pressure limits. The high-pressure switch (part 1184656) opens the 24V control circuit if discharge pressure climbs dangerously high — from a blocked condenser, failed fan, or overcharge. The low-pressure switch (part 1184655) opens on loss of charge or restricted flow to prevent compressor damage. A failed or nuisance-tripping switch will lock out the unit and stop cooling/heating even when refrigerant pressures are normal.

Specifications

Spec	Value
Part Numbers	1184656 (Hi), 1184655 (Lo)
Type	High & Low Pressure Safety Switch
Brand	Tempstar (ICP / Heil)
Circuit	24 VAC Control
Application	Heat Pump Refrigerant Safety
Fitment	OEM

Compatibility

Direct-fit for the Tempstar TSH436GKA101 and matching ICP / Heil / Comfortmaker heat pumps using these pressure controls. Verify against OEM 1184656 (high) and 1184655 (low).

Installation Guide

Safety First — Disconnect power and verify zero voltage with a multimeter; switches mount on pressurized refrigerant lines.
Access — Remove the condenser service panel to reach the switch ports.
Document — Photograph the two control wires on each switch before disconnecting.
Remove — Most use Schrader-style ports allowing replacement without recovery; unscrew the switch and disconnect the leads.
Install — Thread the new switch onto its port and reconnect the leads per your photo.
Test — Restore power, call for operation, and confirm the unit runs without nuisance lockout.

Signs You Need a Replacement

Unit locks out and won't run despite normal pressures
Repeated high- or low-pressure trips
Switch fails a continuity check at its rated pressure
Intermittent operation tied to a stuck switch

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. National HVAC Parts fitment guarantee.
