Tempstar HI/LO Pressure Switch Set for TSH424GKA101 — OEM 24V | Ships Today
OEM Guaranteed
Same-Day Ship
30-Day Returns
Secure Checkout
Overview

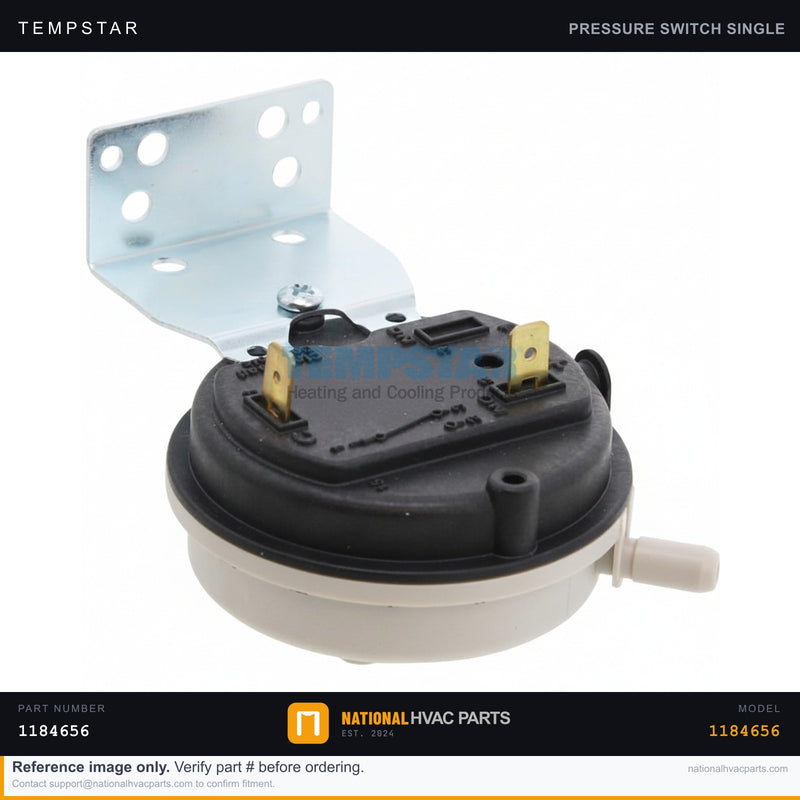

This OEM pressure switch set for the Tempstar TSH424GKA101 includes the high-pressure switch (Part No. 1184656) and the low-pressure switch (Part No. 1184655). These are refrigerant-side safety controls wired into the 24V control circuit. The high-pressure switch opens and shuts the compressor down if discharge pressure climbs to an unsafe level (commonly from a dirty condenser coil, a failed fan, or overcharge). The low-pressure switch opens on a loss of charge or low suction pressure to protect the compressor from running dry. Together they prevent compressor damage and are a frequent cause of a unit that starts and then short-cycles or refuses to run.
Specifications
| Spec | Value |
|---|---|
| High Pressure Switch P/N | 1184656 |
| Low Pressure Switch P/N | 1184655 |
| Type | Refrigerant pressure safety switch (HI & LO pair) |
| Brand | Tempstar (ICP / Heil) |
| Control Voltage | 24 VAC |
| Function | Compressor high/low pressure protection |
| Fitment | OEM replacement |
Compatibility
Direct OEM fit for the Tempstar TSH424GKA101 outdoor unit and shared across many ICP-family heat pumps and condensers under the Tempstar, Heil, Comfortmaker, and Arcoaire brands. Verify the part numbers stamped on your existing switches before installing, as cut-in/cut-out pressures vary by model.
Installation Guide
- Safety First — Disconnect power and verify zero voltage with a multimeter. Note that the switches are tied into the sealed refrigerant system.
- Access — Remove the service panel to reach the control wiring and refrigerant lines.
- Document — Photograph the 24V wiring and switch locations before disconnecting.
- Remove — Disconnect the spade terminals; the switches are typically Schrader-mounted, so recover or pump down refrigerant per EPA requirements before removal.
- Install — Thread the new switches onto the Schrader fittings, reconnect the control leads per your photo.
- Test — Restore power, call for cooling, and confirm normal operation with no nuisance trips.
Signs You Need a Replacement
- Compressor short-cycles or trips on a safety lockout.
- Unit will not start even with proper refrigerant charge.
- Switch contacts stick open or fail to reset.
- Intermittent shutdowns under high outdoor temperatures.
Shipping & Returns
Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
