Tempstar

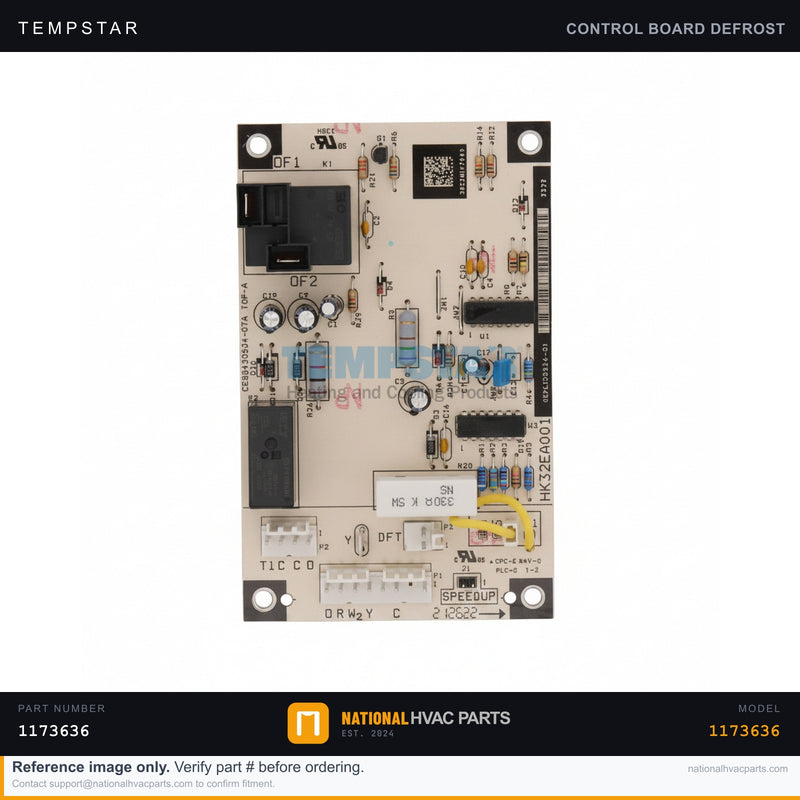

Tempstar Defrost Control Board for TXH536GKA100 — Heat Pump | Ships Today

Name: Tempstar Defrost Control Board for TXH536GKA100 — Heat Pump | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 149.00 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM defrost control board (part #1173636) is the logic center of the Tempstar TXH536GKA100 heat pump's defrost cycle. It monitors the defrost thermostat and outdoor coil temperature, times the defrost interval, and switches the reversing valve and condenser fan to melt frost off the outdoor coil in heating season. A failed board leads to a coil that ices over and stays frozen, a unit that won't defrost (or defrosts constantly), no heat-pump operation, or erratic relay behavior. Because it controls 24V and line-voltage outputs, a dead board can take the whole heat pump offline.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar / ICP / Heil
Function	Defrost timing, reversing valve & fan control
Application	Heat Pump
Fitment	OEM Replacement

Compatibility

Designed for the Tempstar TXH536GKA100 and shared across many ICP-family (Tempstar, Heil, Comfortmaker, Arcoaire) heat pumps using this defrost board revision. Match the exact part number printed on your existing board before ordering, as board pinouts vary by platform.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the condenser/control-box service panel.
Document — Photograph all wiring and connector positions on the board before disconnecting.
Remove — Unplug each harness, release the board standoffs/screws, and lift out the old board.
Install — Seat the new board on its standoffs and reconnect every harness per your photo.
Test — Restore power, run a heating call, and confirm normal operation and a proper defrost cycle.

Signs You Need a Replacement

Outdoor coil ices over and never defrosts
Heat pump runs a constant or never-ending defrost cycle
No heat-pump heating or no reversing-valve switching
Visible scorching or failed relays on the board

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$149.00

Frequently Asked Questions

Does this Control Board fit my Tempstar TXH536GKA100 — Heat Pump | Ships Today?

Yes. This is the factory-specified OEM control board for the Tempstar TXH536GKA100 — Heat Pump | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my Tempstar TXH536GKA100 — Heat Pump | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
