Tempstar

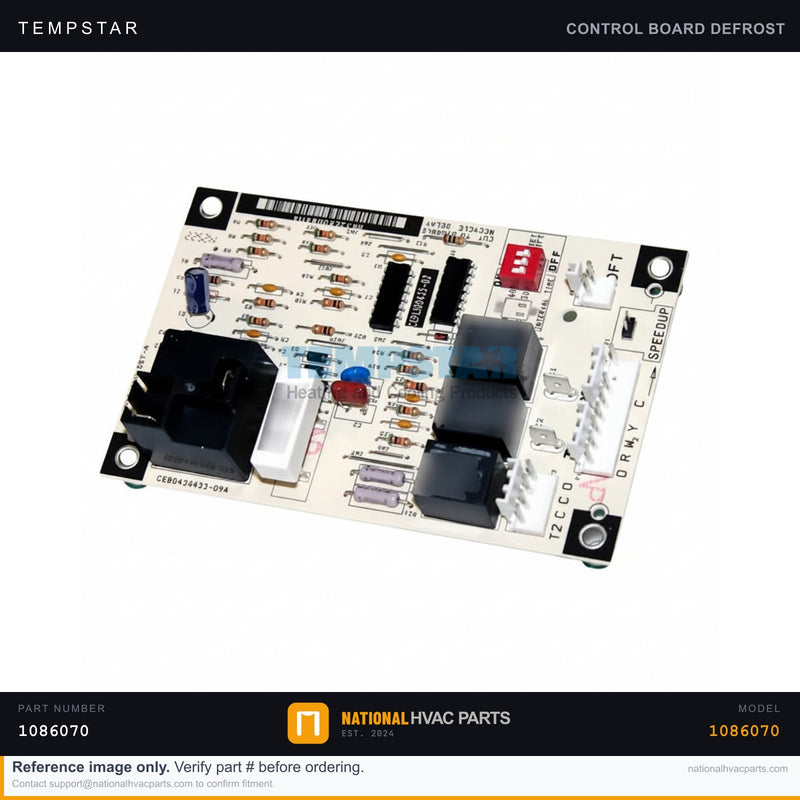

Tempstar Defrost Control Board for TCH224AKAA — 24V Heat Pump | Ships Today

Name: Tempstar Defrost Control Board for TCH224AKAA — 24V Heat Pump | Ships Today
Brand: Tempstar
SKU: 1086070-GEN
Price: 165.00 USD
Availability: InStock

SKU: 1086070-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM defrost control board (part #1086070) is the brain of the Tempstar TCH224AKAA heat pump's defrost cycle. It monitors the outdoor coil temperature sensor and accumulated run time, then commands the reversing valve and stops the outdoor fan to melt frost off the coil during cold-weather heating. The board also manages compressor timing delays to protect against short-cycling. When it fails, the heat pump may ice over in winter, fail to defrost, run defrost cycles too often or never, or lose heating output entirely. A defective board can also leave the outdoor fan running during defrost or trip the system on safety lockouts. Replacing it restores proper defrost timing and protects the compressor.

Specifications

Spec	Value
Part Number	1086070
Type	Defrost Control Board
Brand	Tempstar
Control Voltage	24V
Application	Heat Pump Outdoor Unit

Compatibility

Direct OEM fit for the Tempstar TCH224AKAA heat pump and the matching ICP/Heil/Comfortmaker TCH224 series outdoor units. Match the part number and connector layout to your existing board before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the condenser electrical/control panel.
Document — Photograph every plug and wire on the existing board before unplugging.
Remove — Unplug each harness connector, release the board standoffs/screws, and lift out the old board.
Install — Seat the new board on its standoffs and reconnect each harness per your photo.
Test — Restore power, run a heating call, and confirm normal operation and proper defrost behavior.

Signs You Need a Replacement

Outdoor coil ices over and never defrosts in winter
Heat pump provides little or no heat
Defrost cycles run constantly or at the wrong times
Outdoor fan behavior is erratic during the defrost cycle

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$165.00

Frequently Asked Questions

Does this Control Board fit my Tempstar TCH224AKAA — 24V Heat Pump | Ships Today?

Yes. This is the factory-specified OEM control board for the Tempstar TCH224AKAA — 24V Heat Pump | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my Tempstar TCH224AKAA — 24V Heat Pump | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
