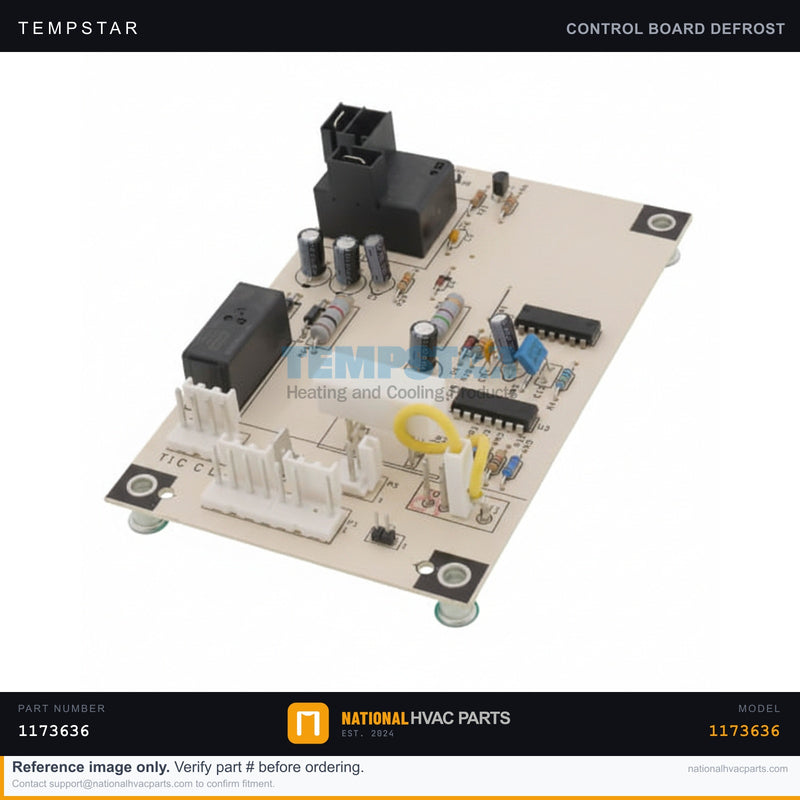

Tempstar Defrost Control Board for T4H560GKB100 — Heat Pump | Ships Today

Name: Tempstar Defrost Control Board for T4H560GKB100 — Heat Pump | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 168.00 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is the genuine OEM defrost control board for the Tempstar T4H560GKB100 heat pump. The defrost board monitors outdoor coil temperature and run time, then commands the reversing valve and a fan shutdown to melt frost from the outdoor coil during heating season. When the board fails, the unit may ice over, run inefficiently, short-cycle, or stop heating entirely. Replacing it with the correct OEM defrost board (1173636) restores proper defrost timing and heat pump performance.

Specifications

Spec	Value
OEM Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar
Control Voltage	24V
Function	Defrost timing & reversing valve control
Fits Model	T4H560GKB100
Fit	OEM Direct Replacement

Compatibility

Direct-fit replacement for the Tempstar T4H560GKB100 heat pump and equivalent ICP / Heil / Comfortmaker units using this defrost control board. Match the OEM number 1173636 and connector layout to your existing board before ordering.

Installation Guide

Safety First — Disconnect power and verify zero voltage with a multimeter.
Access — Remove the outdoor unit's control/electrical panel.
Document — Photograph every connector, the defrost sensor lead, and the timing pin/jumper setting.
Remove — Unplug all connectors and remove the board's mounting screws or standoffs.
Install — Mount the new board, set the defrost timer pin to match the original, and reconnect each plug per your photo.
Test — Restore power and initiate a defrost test (per service instructions) to confirm proper operation.

Signs You Need a Replacement

Outdoor coil ices up and never defrosts in heating mode
Heat pump short-cycles or won't run in defrost
No reversing valve or fan response during defrost
Visible burn marks, corrosion, or relay failure on the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
