Overview

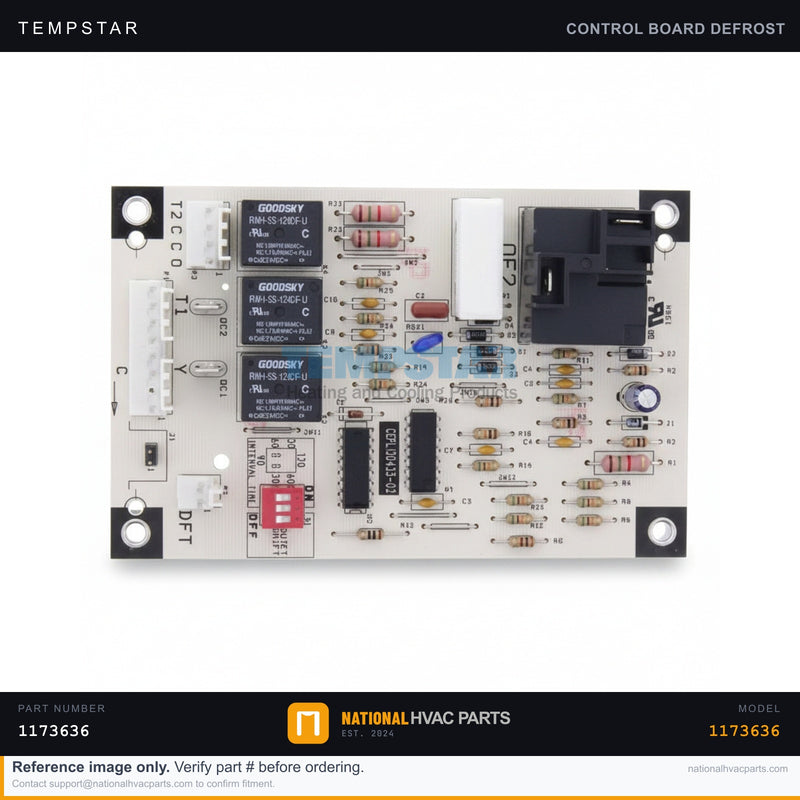

The Tempstar defrost control board (OEM part #1173636) governs the defrost cycle on your T4H524GKD200 heat pump. It reads coil temperature and accumulated run time, then initiates and terminates defrost so the outdoor coil sheds frost and ice during heating operation. A failed board can leave the coil iced over, trigger continuous defrost, skip defrost entirely, or mis-time the reversing valve and auxiliary heat handoff. Installing a new defrost board restores correct, efficient defrost control and shields the compressor from damage.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar (ICP / Heil)
Application	Heat Pump Outdoor Unit
Fit	Genuine OEM

Compatibility

Engineered for the Tempstar T4H524GKD200 heat pump and shared across many ICP-family outdoor units (Tempstar, Heil, Comfortmaker, Arcoaire). Verify the existing board part number before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker; verify zero voltage with a multimeter.
Access — Remove the outdoor unit control/access panel.
Document — Photograph every wire and connector position before disconnecting.
Remove — Unplug low-voltage harnesses and line-voltage terminals, then unscrew the old board from its standoffs.
Install — Mount the new board, match the defrost timing jumper setting, and reconnect every wire per your photo.
Test — Restore power, force a defrost cycle, and verify the reversing valve and fan respond correctly.

Signs You Need a Replacement

Outdoor coil freezes solid in heating mode
Unit runs defrost constantly or never defrosts
No 24V output to reversing valve or fan during defrost
Scorched relays, corrosion, or burn marks on the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
