Tempstar

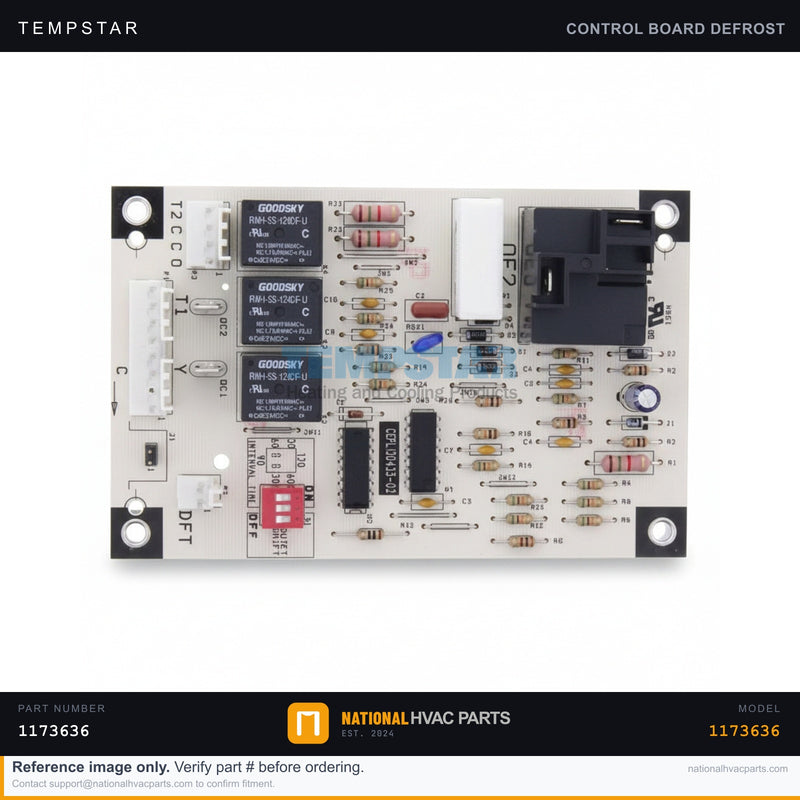

Tempstar Defrost Control Board for T4H524GKA200 — Heat Pump | Ships Today

Name: Tempstar Defrost Control Board for T4H524GKA200 — Heat Pump | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 165.00 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM defrost control board (OEM part #1173636) manages the defrost cycle on the Tempstar T4H524GKA200 heat pump. The board monitors outdoor coil temperature and run time, then commands the reversing valve and outdoor fan to clear frost from the coil during cold-weather heating. It also coordinates compressor timing and auxiliary heat staging. A failed defrost board is a frequent cause of a heat pump that ices over, blows cold air in heat mode, or runs the outdoor fan erratically.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar (ICP/Heil)
Control Voltage	24V
Function	Defrost timing, reversing valve & fan control

Compatibility

Direct OEM replacement for the Tempstar T4H524GKA200 and related ICP-family heat pumps (Heil, Comfortmaker, Arcoaire) that use defrost board 1173636. Verify the OEM number on your existing board before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and main panel; verify zero voltage with a multimeter.
Access — Remove the condenser electrical/service panel.
Document — Photograph every wire and connector position on the old board.
Remove — Unplug the harness connectors and remove the board from its standoffs/screws.
Install — Mount the new board, reconnect each connector and wire exactly per your photo.
Test — Restore power and confirm normal operation; initiate or wait for a defrost cycle to verify reversing-valve and fan response.

Signs You Need a Replacement

Outdoor coil ices up and never defrosts
Heat pump blows cold air during heating
Defrost cycle runs constantly or never runs
No response from board LEDs or burnt/scorched components

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$165.00

Frequently Asked Questions

Does this Control Board fit my Tempstar T4H524GKA200 — Heat Pump | Ships Today?

Yes. This is the factory-specified OEM control board for the Tempstar T4H524GKA200 — Heat Pump | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my Tempstar T4H524GKA200 — Heat Pump | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
