Tempstar Defrost Control Board for T4H524GKA100 — Heat Pump Defrost | Ships Today

Name: Tempstar Defrost Control Board for T4H524GKA100 — Heat Pump Defrost | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 98.00 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

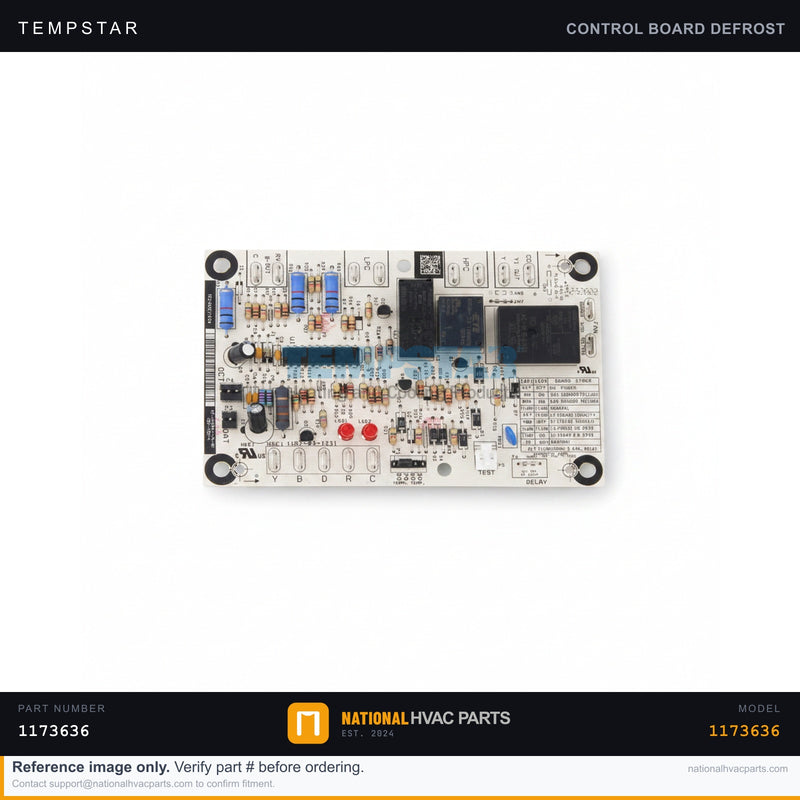

This genuine OEM defrost control board (OEM 1173636, DEFROST CONTROL BOARD) manages the defrost cycle on the Tempstar T4H524GKA100 heat pump. It monitors the defrost thermostat and timing intervals, then commands the reversing valve and shuts off the outdoor fan to melt frost off the outdoor coil during winter operation. A failed board causes excessive coil icing, no defrost, short cycling, or a unit that won't switch into heating properly. Replacing it restores correct, efficient heat-pump operation.

Specifications

Spec	Value
OEM Part Number	1173636
Type	Defrost control board
Brand	Tempstar (ICP / Heil family)
Control Voltage	24V
Function	Defrost timing, reversing valve and fan control

Compatibility

Designed for the Tempstar T4H524GKA100 heat pump and shared across matching ICP/Heil/Comfortmaker outdoor units. Confirm the OEM part number, board layout, and connector configuration against your existing board before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and verify zero voltage with a multimeter.
Access — Remove the condenser control-panel cover to expose the board.
Document — Photograph every connector and wire position before disconnecting.
Remove — Unplug the connectors, release the board's mounting standoffs or screws, and lift out the old board.
Install — Seat the new board on the standoffs and reconnect each plug and wire exactly per your photo.
Test — Restore power, initiate a defrost (or force one per the board's test pins), and confirm correct reversing-valve and fan operation.

Signs You Need a Replacement

Outdoor coil ices over heavily and never defrosts
Heat pump short cycles or won't enter heating mode
Reversing valve or outdoor fan don't respond during defrost
No board activity / status LED dark with power applied

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$98.00
