Tempstar

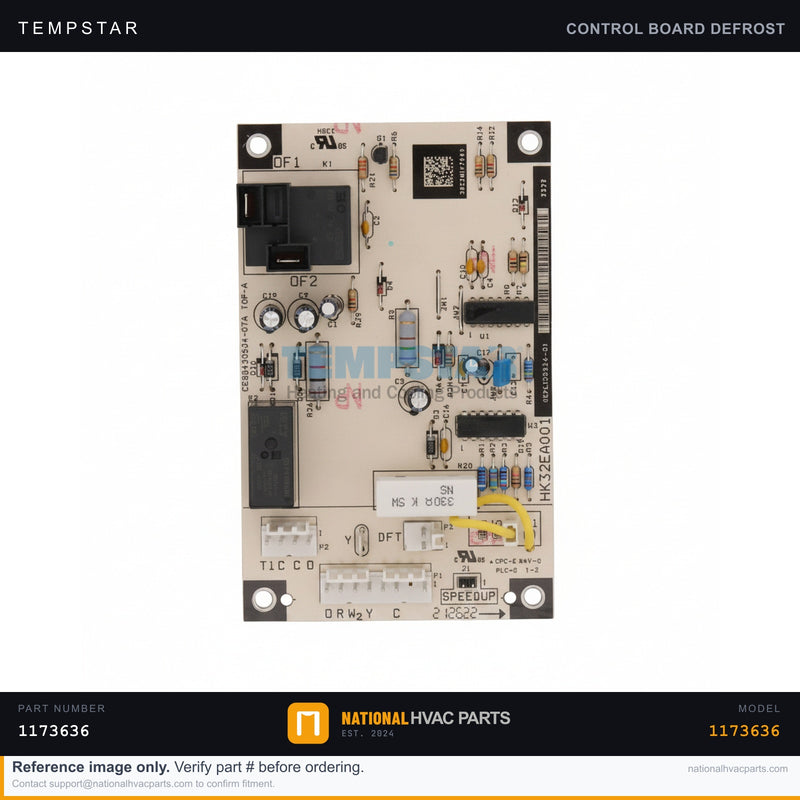

Tempstar Defrost Control Board for T4H336GKE200 — 24V Heat Pump Timer | Ships Today

Name: Tempstar Defrost Control Board for T4H336GKE200 — 24V Heat Pump Timer | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 124.95 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

The 1173636 Defrost Control Board is the OEM control center for your Tempstar T4H336GKE200 heat pump's outdoor section. It tracks coil temperature and accumulated run time to decide when to start and stop the defrost cycle, momentarily reversing refrigerant flow to clear frost from the outdoor coil during heating. The board also sequences the compressor, reversing valve solenoid, and outdoor fan, and enforces anti-short-cycle protection on a 24V control circuit. A failed board commonly causes the coil to ice over, the compressor to run without defrosting, weak heating, or a dead outdoor unit.

Specifications

Spec	Value
OEM Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar (ICP / Heil)
Control Voltage	24V
Application	Heat Pump Defrost
Fitment	OEM Replacement

Compatibility

A direct OEM fit for the Tempstar T4H336GKE200 heat pump and widely shared across ICP-family outdoor units (Heil, Comfortmaker, Arcoaire) that use the 1173636 board. Confirm the part number on your current board before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, verify zero voltage with a multimeter.
Access — Remove the outdoor unit's control-panel access cover.
Document — Photograph all low-voltage and line-voltage connections before disconnecting.
Remove — Label and unplug each terminal, then unscrew the failed board from its standoffs.
Install — Mount the new 1173636 board and reconnect every wire exactly per your photo.
Test — Restore power and confirm proper defrost initiation and heating operation.

Signs You Need a Replacement

Outdoor coil frosts over and never clears during heating
Compressor or outdoor fan won't energize
Constant defrost cycling or reduced heat output
Burn marks, corrosion, or failed relays visible on the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$124.95

Frequently Asked Questions

Does this Control Board fit my Tempstar T4H336GKE200 — 24V Heat Pump Timer | Ships Today?

Yes. This is the factory-specified OEM control board for the Tempstar T4H336GKE200 — 24V Heat Pump Timer | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my Tempstar T4H336GKE200 — 24V Heat Pump Timer | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
