Tempstar

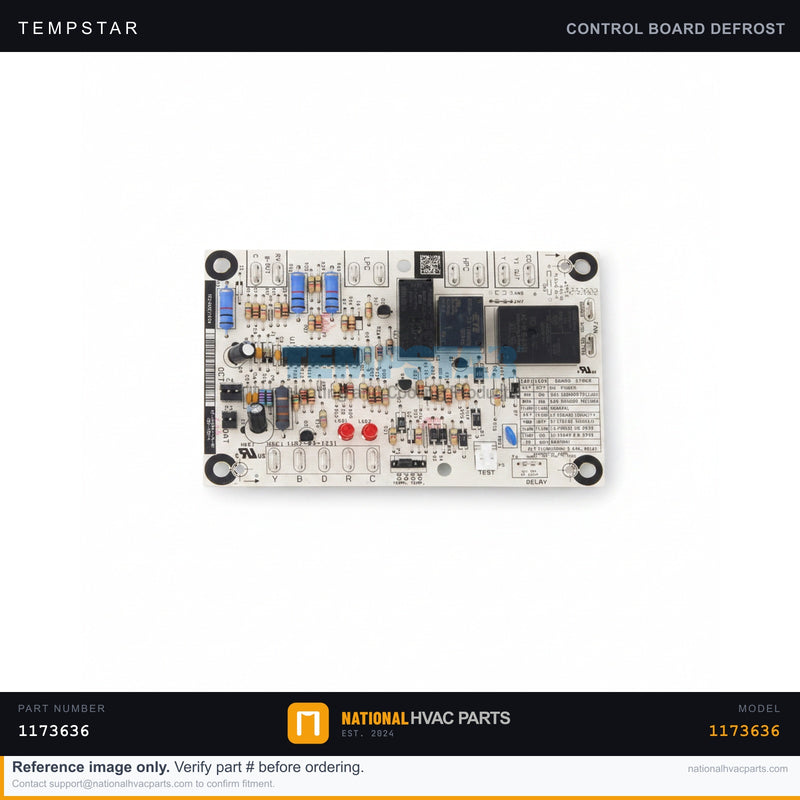

Tempstar Defrost Control Board for T2H324GKD100 — Heat Pump Timer | Ships Today

Name: Tempstar Defrost Control Board for T2H324GKD100 — Heat Pump Timer | Ships Today
Brand: Tempstar
SKU: 1173636-GEN
Price: 149.00 USD
Availability: InStock

SKU: 1173636-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is the OEM defrost control board (part number 1173636) for the Tempstar T2H324GKD100 heat pump. The defrost control board is the brain of the heat pump's defrost cycle — it monitors outdoor coil temperature and run time, then reverses the system into defrost mode to melt frost and ice off the outdoor coil during heating operation. It coordinates the reversing valve, outdoor fan motor, and auxiliary heat. When this board fails, the unit may ice over completely, fail to defrost, run the compressor without defrosting, or lock out on a fault. Common failure symptoms include the outdoor coil staying frozen, no heat output, the system stuck in defrost, or relays that chatter and won't pull in.

Specifications

Spec	Value
Part Number	1173636
Type	Defrost Control Board
Brand	Tempstar (ICP / Heil)
Control Voltage	24V
Application	Heat Pump Defrost Control
Fit	OEM Direct Replacement

Compatibility

Direct-fit OEM replacement for the Tempstar T2H324GKD100 heat pump. This board is shared across many ICP-family heat pumps (Tempstar, Heil, Comfortmaker, Arcoaire) built on the same platform. Always confirm the printed part number 1173636 matches the board you are removing before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker. Verify zero voltage at the control board with a multimeter before touching wiring.
Access — Remove the outdoor unit's control-access service panel.
Document — Photograph every wire and terminal on the existing board before disconnecting anything.
Remove — Label and disconnect the low-voltage and line-voltage connections, release the board standoffs/screws, and lift out the old defrost board.
Install — Mount the new 1173636 board on the same standoffs and reconnect each wire to the matching terminal per your photos. Set any defrost timing jumper to match the original.
Test — Restore power and confirm normal heating, then initiate a test defrost (per the board's forced-defrost procedure) to verify the reversing valve and fan respond.

Signs You Need a Replacement

Outdoor coil ices or frosts over and never clears during heating
Heat pump produces little or no heat in cold weather
System stuck running in defrost, or never enters defrost
Relays on the board are burnt, chattering, or won't energize

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Defrost Control Board f...

$149.00

Frequently Asked Questions

Does this Control Board fit my Tempstar T2H324GKD100 — Heat Pump Timer | Ships Today?

Yes. This is the factory-specified OEM control board for the Tempstar T2H324GKD100 — Heat Pump Timer | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the control board on my Tempstar T2H324GKD100 — Heat Pump Timer | Ships Today?

Difficulty: Advanced (1–2 hrs)
Step 1: Turn off breaker. Step 2: PHOTOGRAPH all wire connections before touching anything. Step 3: Label each wire with tape. Step 4: Disconnect all wires, remove old board. Step 5: Mount new board, reconnect all wires matching your photo exactly. Step 6: Restore power and test all modes. Exact part number match is critical.

My HVAC system is completely dead. What could be wrong?

Completely dead HVAC (no LED on board) = failed control board or blown fuse. Check board fuse first (3A or 5A, costs $1–$5). If fuse is good and board has power but no LED, board is dead. Always photograph wiring before replacing.

Is this control board compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar control board?

OEM essential. Control boards are model-specific with precise firmware and connector layouts. Aftermarket boards rarely match all functions and can cause intermittent failures or safety issues. Always match the exact OEM part number.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
