Tempstar

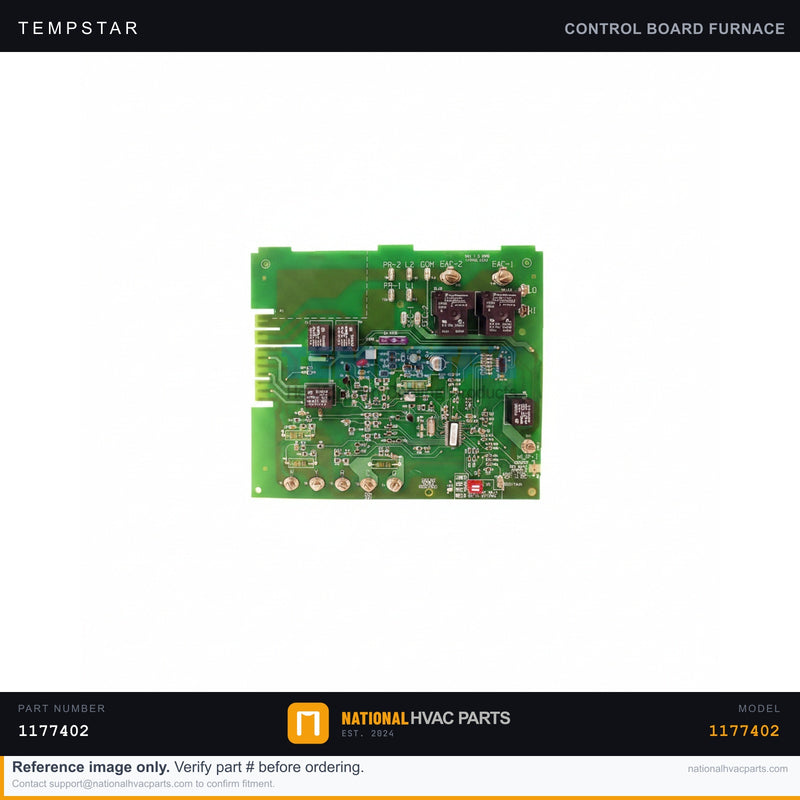

Tempstar Control Board for T2A336GKD200 — ComfortAlert Diagnostic Module | Ships Today

Name: Tempstar Control Board for T2A336GKD200 — ComfortAlert Diagnostic Module | Ships Today
Brand: Tempstar
SKU: 1177402-GEN
Price: 164.95 USD
Availability: InStock

SKU: 1177402-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This is a genuine OEM ComfortAlert control board (part number 1177402) for the Tempstar T2A336GKD200 condensing unit. The ComfortAlert module is a compressor diagnostic and protection board that continuously monitors compressor and electrical operation — tracking voltage, current draw, and run behavior to detect faults such as locked rotor, open circuit, missing phase, low voltage, short cycling, and welded contactor conditions. When a fault occurs, the board flashes a diagnostic alert code via its onboard LED so a technician can pinpoint the problem quickly instead of guessing. A failed control board can leave the compressor unprotected or prevent the system from running at all, so a known-good OEM replacement keeps the equipment safe and serviceable.

Specifications

Spec	Value
OEM Part Number	1177402
Type	ComfortAlert Diagnostic Control Board
Brand	Tempstar
Function	Compressor monitoring & fault diagnostics
Control Voltage	24 VAC
Indicators	LED alert/flash codes
Fits Model	T2A336GKD200

Compatibility

Engineered as a direct OEM replacement for the Tempstar T2A336GKD200 condensing unit. ComfortAlert board 1177402 is also used across matching ICP-family outdoor units — including comparable Heil, Comfortmaker, and Tempstar single-stage condensers equipped with the ComfortAlert diagnostic module. Confirm the part number on the existing board before ordering.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and main breaker, then verify zero voltage with a multimeter.
Access — Remove the condenser service panel to reach the control compartment.
Document — Photograph every harness and terminal connection on the board before disconnecting.
Remove — Unplug the low-voltage and sensing leads, release the mounting standoffs or screws, and lift out the old board.
Install — Seat the new board on its standoffs and reconnect each harness exactly per your photo.
Test — Restore power, call for cooling, and confirm the LED shows normal status with the compressor running correctly.

Signs You Need a Replacement

No diagnostic LED activity or a board that won't power up.
Compressor will not start or the board reports false/constant fault codes.
Visible burn marks, corrosion, or scorched components on the board.
Erratic compressor protection — short cycling or no fault response when one is expected.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
