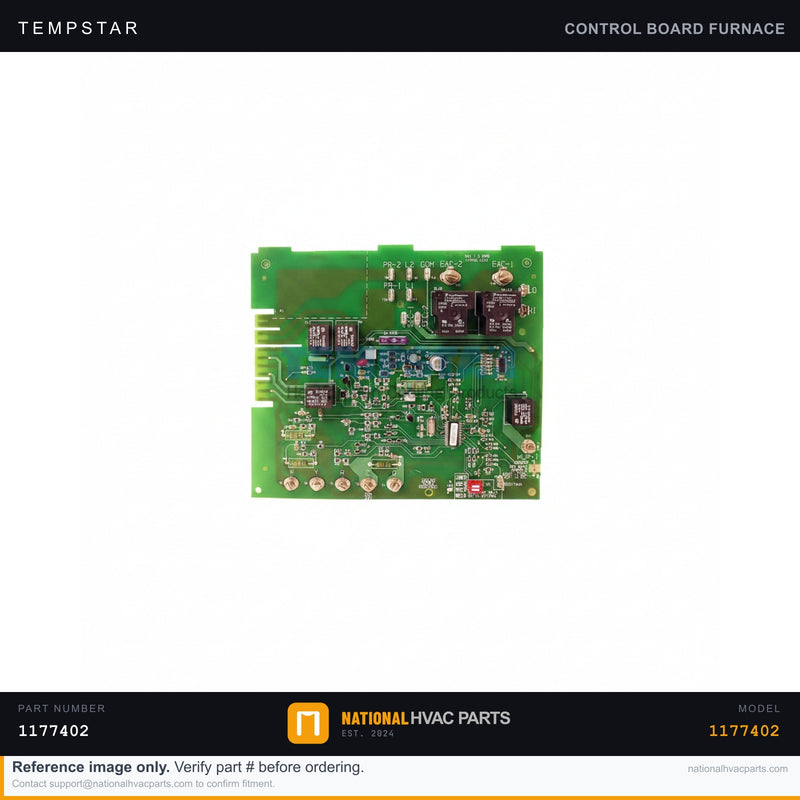

Tempstar Control Board ComfortAlert for TXA636GKA100 — OEM 1177402 | Ships Today

Name: Tempstar Control Board ComfortAlert for TXA636GKA100 — OEM 1177402 | Ships Today
Brand: Tempstar
SKU: 1177402-GEN
Price: 149.95 USD
Availability: InStock

SKU: 1177402-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

The Tempstar 1177402 ComfortAlert control board is the OEM diagnostic and compressor-protection module for the TXA636GKA100 condensing unit. It constantly monitors compressor and system behavior and flashes coded faults that identify issues like locked rotor, open circuit, low line voltage, and short cycling. A failed board can leave the outdoor unit dead, tripping on protection faults, or running with no compressor safeguard — putting the compressor at risk. The genuine OEM 1177402 restores factory diagnostics and protection.

Specifications

Spec	Value
Part Number	1177402
Type	ComfortAlert Control / Diagnostic Board
Brand	Tempstar (ICP / Heil)
Function	Compressor monitoring & fault-code diagnostics
Fits Model	TXA636GKA100
Fitment	OEM Direct Replacement

Compatibility

Designed for the Tempstar TXA636GKA100 air conditioner/heat pump condensing unit and equivalent ICP-family (Heil, Comfortmaker) systems that originally shipped with the 1177402 ComfortAlert module. Confirm the part number on your existing board before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the control-panel service cover on the condensing unit.
Document — Photograph all wiring and connector positions before disconnecting anything.
Remove — Unplug the low-voltage connectors and release the board from its standoffs/mounting clips.
Install — Snap the new 1177402 board onto the standoffs and reconnect every wire exactly per your photo.
Test — Restore power, start a cooling cycle, and confirm the diagnostic LED shows normal operation with no fault codes.

Signs You Need a Replacement

Outdoor unit will not start or compressor won't engage
Persistent or erratic fault-code LED flashes
Frequent short cycling or nuisance protection trips
No diagnostic LED activity with power confirmed at the board

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
