What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model TSA560GKA101 — 40A Definite Purpose | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TSA560GKA101 — 40A Definite Purpose | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

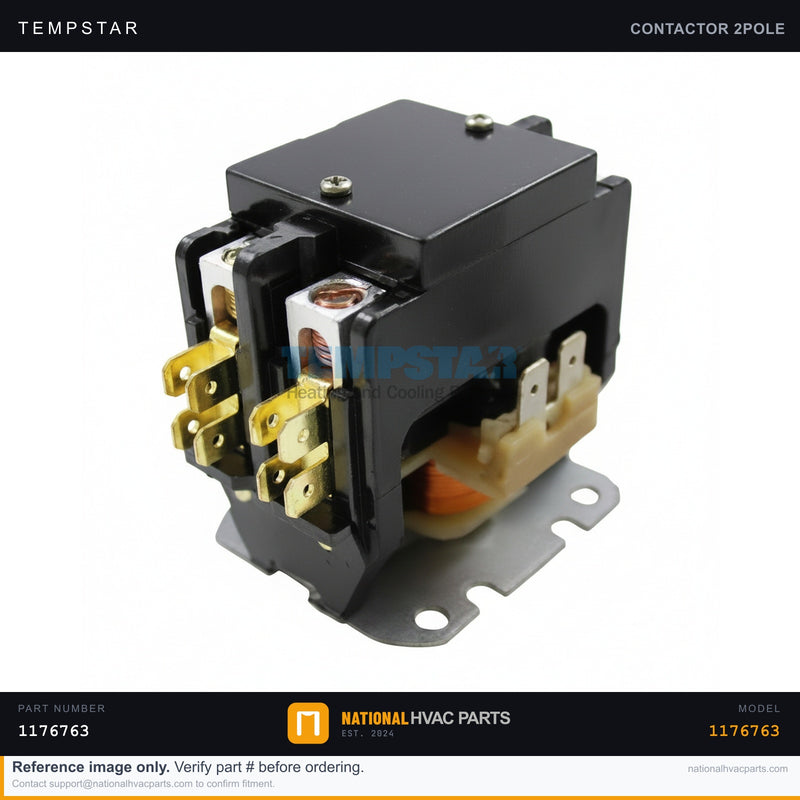

Tempstar Contactor for TSA560GKA101 — 40A Definite Purpose | Ships Today

Name: Tempstar Contactor for TSA560GKA101 — 40A Definite Purpose | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 36.00 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM 40-amp definite purpose contactor (OEM part number 1176763) is the factory replacement for the Tempstar TSA560GKA101 condensing unit. The contactor is the heavy-duty relay that switches line voltage to the compressor and condenser fan motor on every cooling cycle. A 24-volt control coil energizes the electromagnet, pulling the main contacts closed to start the outdoor unit; when the thermostat is satisfied, the contacts open and the system stops. The 40A rating supports the higher inrush current of larger condensers. Because the contacts make and break under load thousands of times per season, they erode over time — making the contactor one of the most frequent failure points in residential AC service.

Specifications

Spec	Value
OEM Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar
Contact Rating	40 Amps
Coil Voltage	24 VAC
Fits Model	TSA560GKA101

Compatibility

Direct OEM fit for the Tempstar TSA560GKA101 outdoor condenser. The 1176763 contactor is used across comparable ICP-family units (Tempstar, Heil, Comfortmaker). Verify the part number stamped on your existing contactor and the coil voltage (24V) before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and main breaker, then verify zero voltage with a multimeter.
Access — Remove the condenser service panel to reach the electrical compartment.
Document — Photograph all wire connections and terminal positions before disconnecting anything.
Remove — Disconnect the line and load conductors and the 24V coil leads, remove the mounting screws, and take out the old contactor.
Install — Mount the new 40A contactor and reconnect each wire to the matching terminal per your photo.
Test — Restore power and confirm the contactor pulls in on a cooling call and the compressor and fan run normally.

Signs You Need a Replacement

Condenser fails to energize on a cooling call
Persistent buzzing, humming, or chattering at the contactor
Burned, pitted, or welded contact points
Compressor or fan runs continuously due to stuck-closed contacts

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar Contactor for TSA560GKA...

$36.00

Frequently Asked Questions

Does this Contactor fit my Tempstar TSA560GKA101 — 40A Definite Purpose | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TSA560GKA101 — 40A Definite Purpose | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TSA560GKA101 — 40A Definite Purpose | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
