What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

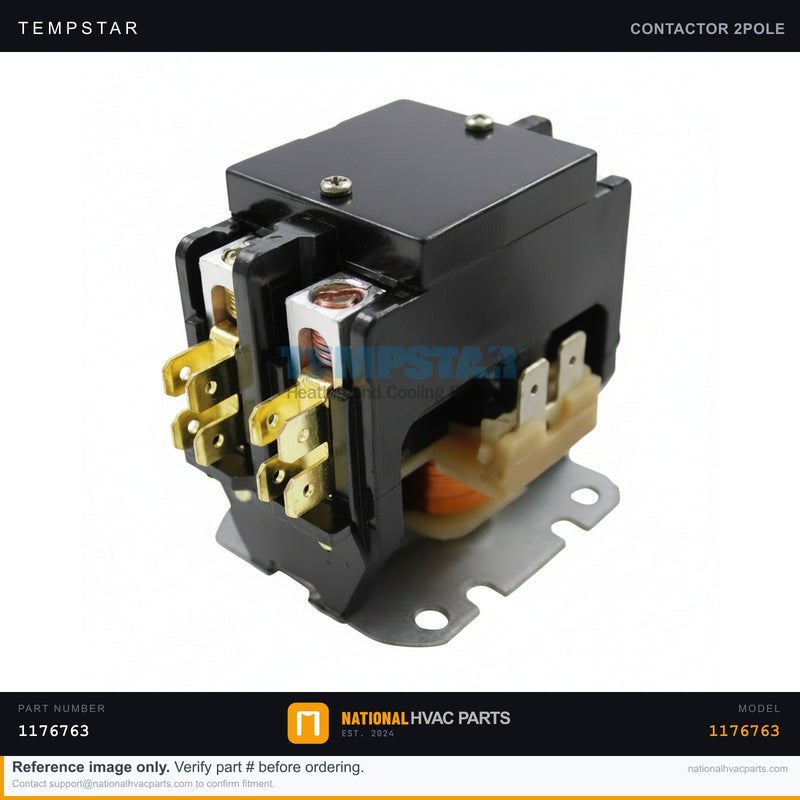

Tempstar 40A Contactor for TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today

Name: Tempstar 40A Contactor for TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 32.95 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40 Amp contactor (part number 1176763) is the primary switching relay for the Tempstar TXA660GKA100 condensing unit. When the thermostat calls for cooling, the 24-volt control circuit energizes the contactor coil, which pulls the contacts closed and sends line voltage to the compressor and condenser fan motor. Rated at 40A with a 24V coil, it carries the full inrush and running current of the outdoor unit. Common failure symptoms include a unit that hums but won't start, pitted or welded contacts, chattering, or an outdoor unit that runs continuously because the contacts are stuck closed. A worn contactor is one of the most frequent causes of no-cooling service calls.

Specifications

Spec	Value
Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar
Current Rating	40 Amps
Coil Voltage	24V
Poles	2-Pole
Application	AC Condenser / Compressor

Compatibility

Engineered as a direct OEM replacement for the Tempstar TXA660GKA100 condensing unit. This contactor is also used across many ICP-family outdoor units (Heil, Comfortmaker, Tempstar) that share the same 40A 24V coil specification. Always confirm your existing contactor's amp rating, pole count, and coil voltage match before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and breaker; verify zero voltage with a multimeter at the contactor terminals.
Access — Remove the condenser service panel to expose the contactor.
Document — Photograph all wire connections before disconnecting anything.
Remove — Label and disconnect line, load, and 24V coil wires; unscrew the old contactor from the mounting bracket.
Install — Mount the new contactor, then reconnect each wire per your photo (line in, compressor/fan out, 24V to coil terminals).
Test — Restore power and call for cooling; confirm the contacts pull in cleanly and the compressor and fan start.

Signs You Need a Replacement

Outdoor unit hums or buzzes but the compressor won't start
Visible pitting, burning, or melting on the contact points
Unit runs nonstop because contacts are welded closed
Chattering or rapid clicking when the system cycles

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 40A Contactor for TXA66...

$32.95

Frequently Asked Questions

Does this Contactor fit my Tempstar TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TXA660GKA100 — 24V Coil Condenser Contactor | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
