What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model TSH460GKA101 — 24V Coil Condenser | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TSH460GKA101 — 24V Coil Condenser | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

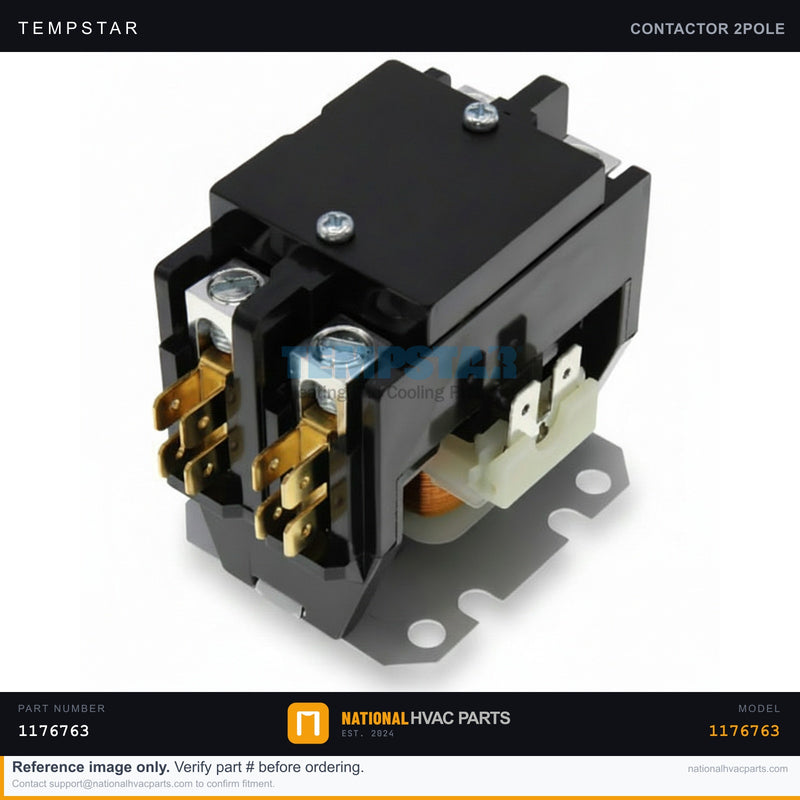

Tempstar 40A Contactor for TSH460GKA101 — 24V Coil Condenser | Ships Today

Name: Tempstar 40A Contactor for TSH460GKA101 — 24V Coil Condenser | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 34.00 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40-amp contactor is the high-voltage switch that powers the compressor and condenser fan motor on your Tempstar TSH460GKA101. A 24V control signal from the thermostat energizes the contactor coil, pulling the contacts closed to deliver line voltage to the outdoor unit. Over time the contacts pit, burn, or weld, and the coil can fail open — leaving the condenser dead even though the indoor blower runs. Common failure symptoms include a humming or chattering contactor, pitted/blackened contacts, a compressor that won't start, or contacts that stick closed so the unit never shuts off. This 40A contactor is built to original specification for a clean, direct swap.

Specifications

Spec	Value
Part Number	1176763 (Contactor 40A)
Type	Definite Purpose Contactor, 2-Pole
Brand	Tempstar (ICP / Heil)
Contact Rating	40 Amps
Coil Voltage	24V
Poles	2
Fitment	OEM Direct Replacement

Compatibility

Fits the Tempstar TSH460GKA101 heat pump and other ICP-family condensing units (Heil, Comfortmaker, Arcoaire) using the 1176763 40A definite-purpose contactor with a 24V coil. Verify amperage and coil voltage match your existing part.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker; verify zero voltage at the line terminals with a multimeter.
Access — Remove the condenser service panel to reach the contactor in the electrical box.
Document — Photograph all line, load, and 24V coil wires before disconnecting.
Remove — Label and disconnect each lead, then unscrew the old contactor from its mounting.
Install — Mount the new 40A contactor and reconnect every wire exactly per your photo.
Test — Restore power and call for cooling/heating; confirm the contactor pulls in cleanly and the compressor and fan start.

Signs You Need a Replacement

Loud humming, buzzing, or chattering from the contactor.
Pitted, burned, or welded contacts visible on inspection.
Compressor and condenser fan fail to start on a cooling call.
Unit runs continuously because contacts are stuck closed.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 40A Contactor for TSH46...

$34.00

Frequently Asked Questions

Does this Contactor fit my Tempstar TSH460GKA101 — 24V Coil Condenser | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TSH460GKA101 — 24V Coil Condenser | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TSH460GKA101 — 24V Coil Condenser | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
