What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model TCH960GKA200 — 2-Pole 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TCH960GKA200 — 2-Pole 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

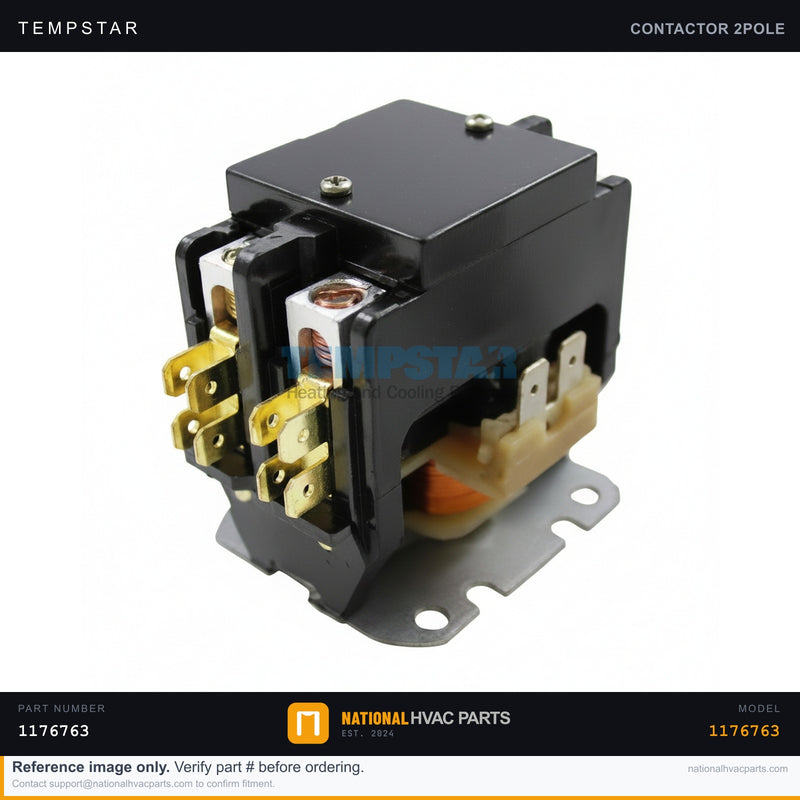

Tempstar 40A Contactor for TCH960GKA200 — 2-Pole 24V Coil | Ships Today

Name: Tempstar 40A Contactor for TCH960GKA200 — 2-Pole 24V Coil | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 34.95 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40-amp definite purpose contactor (part number 1176763) is the electromechanical switch that energizes the compressor and condenser fan circuit on your Tempstar TCH960GKA200 system. When the thermostat calls for cooling, the 24-volt control coil pulls the contacts closed and sends line voltage to the high-draw components. A failing contactor is one of the most common no-cool service calls: pitted or welded contacts cause hard starts, chattering, buzzing, or a unit that simply will not energize. This 2-pole contactor is rated for 40 FLA with a 24V coil and replaces the original switch with an exact-fit OEM component.

Specifications

Spec	Value
Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar
Poles	2-Pole
Rating	40 Amps (FLA)
Coil Voltage	24V
Fits Model	TCH960GKA200

Compatibility

Engineered for the Tempstar TCH960GKA200 and shared across many ICP-family condensing units and heat pumps built by Tempstar, Heil, Comfortmaker, and Carrier under the same platform. Always confirm amperage, pole count, and coil voltage against your existing contactor before installing.

Installation Guide

Safety First — Disconnect power at the breaker and the outdoor disconnect, then verify zero voltage with a multimeter across the line terminals.
Access — Remove the condensing unit service panel to expose the control box.
Document — Photograph every wire connection before disconnecting anything.
Remove — Label and transfer the line, load, and 24V coil leads one at a time, then unbolt the old contactor from its bracket.
Install — Mount the new contactor, move each wire to the matching terminal per your photo, and torque connections snug.
Test — Restore power, call for cooling, and confirm the contacts pull in cleanly with no chatter.

Signs You Need a Replacement

Loud buzzing, humming, or chattering at the outdoor unit
Compressor and fan won't start, or start intermittently
Pitted, burned, or welded contacts visible on inspection
Coil that no longer pulls the contacts closed on a cooling call

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 40A Contactor for TCH96...

$34.95

Frequently Asked Questions

Does this Contactor fit my Tempstar TCH960GKA200 — 2-Pole 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TCH960GKA200 — 2-Pole 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TCH960GKA200 — 2-Pole 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
