What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model TCH660GKA200 — 2-Pole 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number TCH660GKA200 — 2-Pole 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

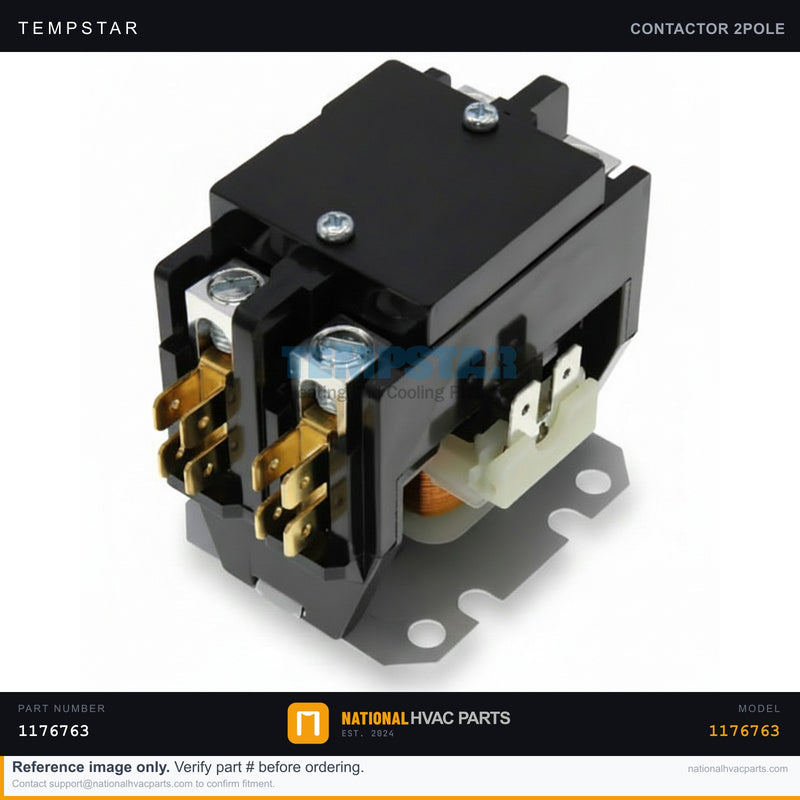

Tempstar 40A Contactor for TCH660GKA200 — 2-Pole 24V Coil | Ships Today

Name: Tempstar 40A Contactor for TCH660GKA200 — 2-Pole 24V Coil | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 32.00 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40-amp definite purpose contactor (Tempstar part number 1176763) is the primary switching relay for your Tempstar TCH660GKA200 condensing unit. When the 24-volt coil is energized by the thermostat call for cooling, the contactor pulls in and closes its line-voltage contacts, sending power to the compressor and condenser fan motor. It is a 2-pole device rated at 40 amps with a 24V control coil. A failed contactor is one of the most common reasons an outdoor unit will not start, hum without engaging, or run continuously after the thermostat is satisfied. Pitted, welded, or burned contacts cause hard starts, chatter, and premature compressor wear.

Specifications

Spec	Value
Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar
Current Rating	40 Amps
Poles	2-Pole
Coil Voltage	24V
Fit	OEM Replacement

Compatibility

Engineered for the Tempstar TCH660GKA200 condensing unit and shared across many Tempstar, Heil, ICP, and Comfortmaker outdoor units using the same 40A 2-pole platform. Always confirm your existing contactor is 40A with a 24V coil before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the condenser service panel to expose the control compartment.
Document — Photograph all line, load, and coil wiring before disconnecting.
Remove — Label and detach the wires, then unscrew the old contactor from the bracket.
Install — Mount the new contactor, reconnect line/load and 24V coil wires per your photo.
Test — Restore power, call for cooling, and confirm the contactor pulls in and the unit starts.

Signs You Need a Replacement

Outdoor unit hums but compressor and fan won't start.
Visible pitting, burning, or welded contacts.
Chattering or buzzing from the contactor on a cooling call.
Unit keeps running after the thermostat is satisfied (stuck contacts).

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 40A Contactor for TCH66...

$32.00

Frequently Asked Questions

Does this Contactor fit my Tempstar TCH660GKA200 — 2-Pole 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TCH660GKA200 — 2-Pole 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TCH660GKA200 — 2-Pole 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
