What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model T4H360GKD400 — Condenser Switching | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T4H360GKD400 — Condenser Switching | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

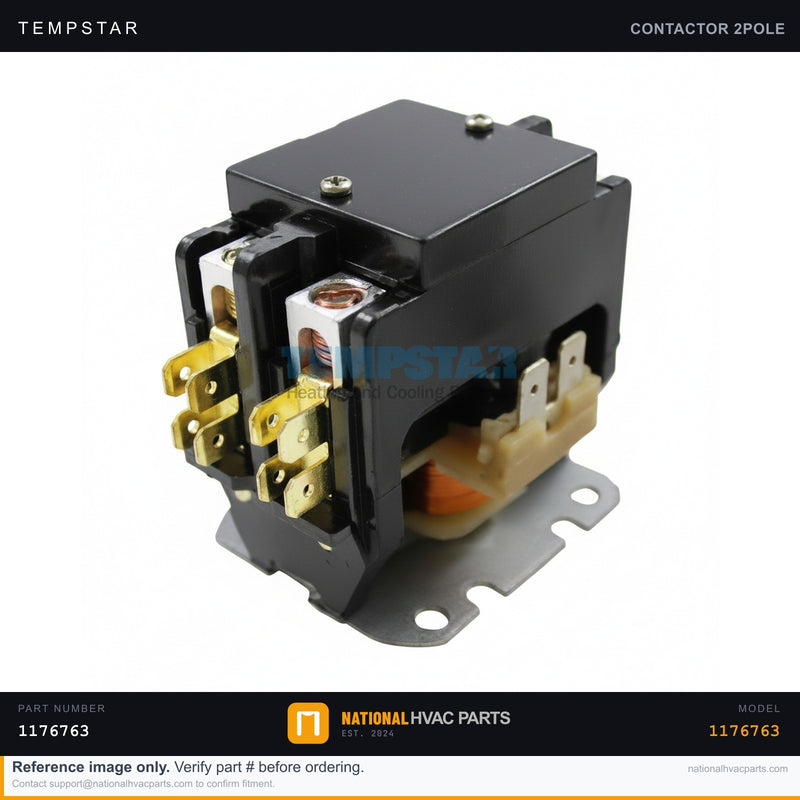

Tempstar 40A Contactor for T4H360GKD400 — Condenser Switching | Ships Today

Name: Tempstar 40A Contactor for T4H360GKD400 — Condenser Switching | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 39.00 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40-amp definite purpose contactor (part 1176763) is the main power switching relay for the Tempstar T4H360GKD400 condensing unit. On a thermostat cooling call, the low-voltage coil energizes and pulls the contacts closed, delivering line voltage to the compressor and condenser fan motor. Rated at 40 amps, it handles the higher inrush and run current of this larger condenser. Contactors are among the highest-wear components in any outdoor unit — repeated arcing pits and burns the contacts until they either fail to make contact (no cooling) or weld shut (compressor won't stop). Replacing a worn contactor before it welds prevents downstream compressor and capacitor damage.

Specifications

Spec	Value
OEM Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar (ICP / Heil)
Contact Rating	40 Amp
Application	Condenser Compressor & Fan

Compatibility

Designed for the Tempstar T4H360GKD400 and compatible ICP/Heil/Comfortmaker condensing units specifying the 1176763 contactor. Confirm amp rating, pole count, and coil voltage against your existing contactor before swapping.

Installation Guide

Safety First — Disconnect power at the breaker and pull the outdoor disconnect. Verify zero voltage across the terminals with a multimeter.
Access — Remove the electrical access panel on the condensing unit.
Document — Photograph all line, load, and coil wiring before disconnecting.
Remove — Note wire positions, disconnect each spade terminal, and unscrew the failed contactor.
Install — Mount the new 40A contactor and reconnect every wire exactly per your photo.
Test — Restore power and confirm the contactor pulls in on a cooling call and releases cleanly when satisfied.

Signs You Need a Replacement

Condenser silent on a cooling call — contacts not making
Loud buzzing or chattering from the contactor
Compressor and fan won't shut off (welded contacts)
Pitted, burned, or melted contact surfaces

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 40A Contactor for T4H36...

$39.00

Frequently Asked Questions

Does this Contactor fit my Tempstar T4H360GKD400 — Condenser Switching | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar T4H360GKD400 — Condenser Switching | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar T4H360GKD400 — Condenser Switching | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
