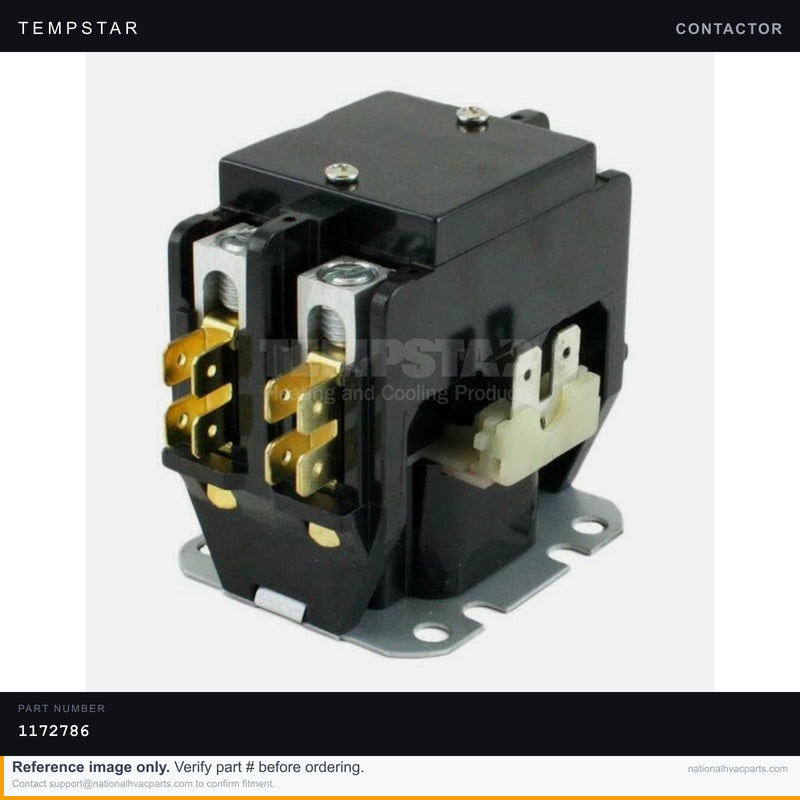

Tempstar 2-Pole 40A Contactor for T4H360GKD200 — 24V Coil | Ships Today

Overview

This 2-pole, 40-amp contactor with a 24V coil is the OEM switching relay for the Tempstar T4H360GKD200 heat pump (OEM part 1172786). When the thermostat calls for cooling or heating, the 24V coil pulls the contacts closed, sending line voltage to the compressor and condenser fan motor. Contactors are high-wear parts — the contacts arc every cycle and eventually pit, weld, or corrode. A failed contactor causes a unit that won't start, chatters loudly, or runs continuously because the contacts are stuck closed. Pitted contacts also drop voltage to the compressor, leading to overheating and hard starts.

Specifications

Compatibility

Direct OEM replacement for the Tempstar T4H360GKD200 and shared across ICP/Heil/Comfortmaker condensing units using a 2-pole 40A definite-purpose contactor with a 24V coil. Match poles, amp rating, and coil voltage to your existing part.

Installation Guide

1. Safety First — Disconnect power and verify zero voltage with a multimeter.
2. Access — Remove the condenser service panel.
3. Document — Photograph every line, load, and 24V coil wire before disconnecting.
4. Remove — Transfer wires one at a time, or label them, then unbolt the old contactor.
5. Install — Mount the new contactor and reconnect each wire to the matching terminal per your photo.
6. Test — Restore power and confirm the contactor pulls in on a thermostat call.

Signs You Need a Replacement

• Compressor and fan won't start despite a cooling call
• Loud chattering or buzzing at the contactor
• Burned, pitted, or welded contacts
• Unit runs nonstop because contacts are stuck closed

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
