What amp contactor do I need for my Tempstar system?

The correct replacement for Tempstar model T2H360GKD100 — 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Tempstar equipment which lists the model number T2H360GKD100 — 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

Is this contactor compatible with Bryant or Payne systems too?

Many Tempstar parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Tempstar

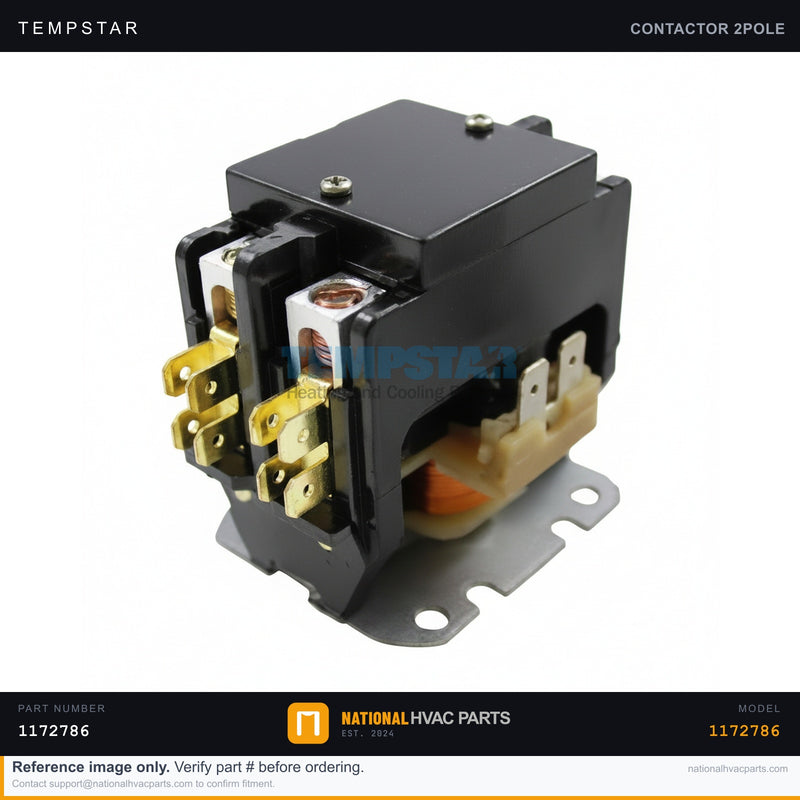

Tempstar 2-Pole 40A Contactor for T2H360GKD100 — 24V Coil | Ships Today

Name: Tempstar 2-Pole 40A Contactor for T2H360GKD100 — 24V Coil | Ships Today
Brand: Tempstar
SKU: 1172786-GEN
Price: 27.95 USD
Availability: InStock

SKU: 1172786-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This genuine OEM 2-pole, 40-amp contactor with a 24-volt coil (part number 1172786) is the main switching relay for the Tempstar T2H360GKD100 outdoor unit. When the thermostat calls, the 24V coil energizes and pulls the contacts closed, sending line voltage to the compressor and condenser fan motor. Contactors are high-wear parts: the contacts arc and pit every cycle, and the coil can burn open. Symptoms of a failing contactor include a buzzing or chattering outdoor unit, a system that won't start even though the thermostat is calling, contacts welded shut so the unit never shuts off, or pitted/blackened contact faces. A worn contactor stresses the compressor and is one of the most common no-cool service calls.

Specifications

Spec	Value
Part Number	1172786
Type	Definite-purpose contactor
Brand	Tempstar (ICP / Heil)
Poles	2-Pole
Contact Rating	40 Amps
Coil Voltage	24V
Fit	OEM direct replacement

Compatibility

Direct-fit for the Tempstar T2H360GKD100 and equivalent ICP, Heil, and Comfortmaker outdoor units built on the same platform. Confirm pole count, amp rating, and 24V coil voltage against your existing contactor before installing.

Installation Guide

Safety First — Disconnect outdoor power and verify zero voltage with a multimeter across the line terminals.
Access — Remove the service panel from the outdoor unit's electrical compartment.
Document — Photograph every line, load, and 24V coil wire before disconnecting anything.
Remove — Transfer wires one at a time to the new contactor, or label them, then unscrew the old contactor from the bracket.
Install — Mount the new contactor and reconnect each wire to its matching terminal per your photo.
Test — Restore power, call for cooling, and confirm the coil pulls in cleanly with no chatter and the compressor/fan energize.

Signs You Need a Replacement

Loud buzzing or chattering from the outdoor unit.
Unit won't start despite a valid thermostat call.
Compressor won't shut off (contacts welded closed).
Visibly pitted, burnt, or blackened contact faces.

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 2-Pole 40A Contactor fo...

$27.95

Frequently Asked Questions

Does this Contactor fit my Tempstar T2H360GKD100 — 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar T2H360GKD100 — 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar T2H360GKD100 — 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
