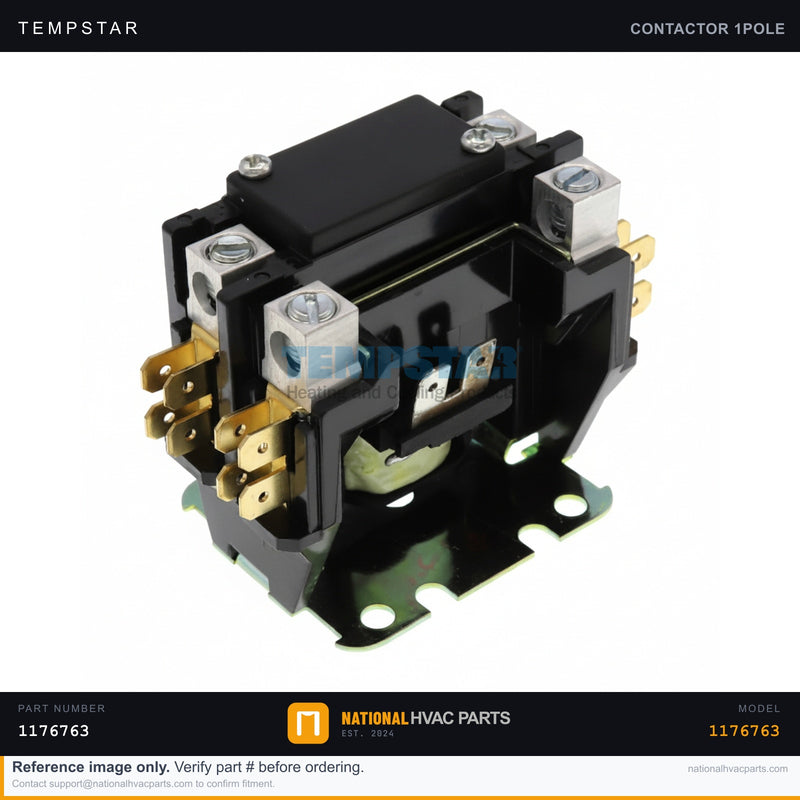

Tempstar 1-Pole 40A Contactor for TSH560GKA100 — 24V Coil | Ships Today

Name: Tempstar 1-Pole 40A Contactor for TSH560GKA100 — 24V Coil | Ships Today
Brand: Tempstar
SKU: 1176763-GEN
Price: 29.00 USD
Availability: InStock

SKU: 1176763-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM 40-amp contactor (part #1176763) is the high-voltage switch that powers the compressor and outdoor fan on the Tempstar TSH560GKA100 heat pump. Its 24V coil is energized by the thermostat through the control circuit; when energized, the contacts close and send line voltage to the compressor and condenser fan. Over time the silver contacts pit, burn, and weld from the constant arcing of high inrush current. A failing contactor causes a unit that won't start, a humming or chattering coil, or — when contacts weld shut — a compressor that runs continuously and won't shut off even when the thermostat is satisfied.

Specifications

Spec	Value
Part Number	1176763
Type	Definite Purpose Contactor
Brand	Tempstar
Rating	40A
Poles	1-Pole
Coil Voltage	24V
Application	Condenser / Compressor

Compatibility

Direct OEM replacement for the Tempstar TSH560GKA100 series and equivalent Heil, Comfortmaker, and ICP-built units using 40A contactor 1176763. Confirm amperage, pole count, and 24V coil rating against your existing contactor before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and verify zero voltage with a multimeter.
Access — Remove the outdoor service panel to expose the contactor and wiring.
Document — Photograph every line, load, and 24V coil connection before disconnecting.
Remove — Unbolt the failed contactor and transfer wires one at a time to avoid mix-ups.
Install — Mount the new contactor and reconnect line, load, and coil leads per your photo.
Test — Restore power, call for cooling, and confirm the contacts pull in cleanly without chatter.

Signs You Need a Replacement

Outdoor unit is silent and won't start on a cooling call
Contactor hums, buzzes, or chatters instead of pulling in
Burned, pitted, or welded contacts visible on inspection
Compressor runs nonstop and won't shut off

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 1-Pole 40A Contactor fo...

$29.00

Frequently Asked Questions

Does this Contactor fit my Tempstar TSH560GKA100 — 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the Tempstar TSH560GKA100 — 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my Tempstar TSH560GKA100 — 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many Tempstar parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Tempstar contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
