Tempstar 1-Pole 30A Contactor for TSH536HKA200 — 24V Coil w/ Shunt | Ships Today

Name: Tempstar 1-Pole 30A Contactor for TSH536HKA200 — 24V Coil w/ Shunt | Ships Today
Brand: Tempstar
SKU: 1172472-GEN
Price: 29.00 USD
Availability: InStock

SKU: 1172472-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

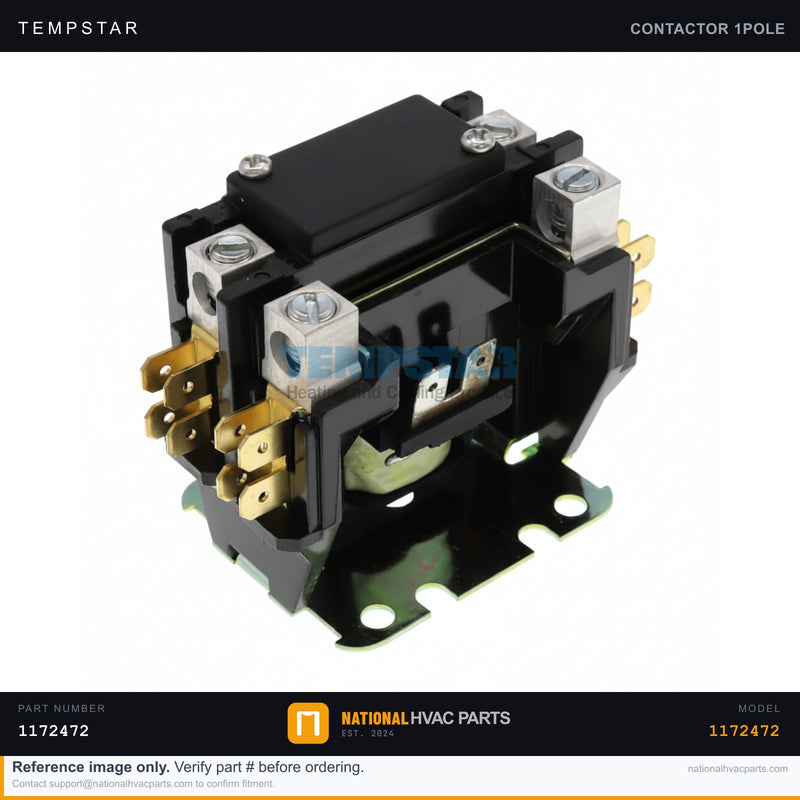

This OEM 1-pole 30-amp contactor (part 1172472) with a 24V coil and integrated shunt switches line-voltage power to the compressor and condenser fan in your Tempstar TSH536HKA200. On a call for cooling, the 24V coil pulls the contacts closed and energizes the outdoor unit. Worn, pitted, or welded contacts are a leading no-cool failure — causing the unit to hum without starting, run intermittently, or fail to shut off.

Specifications

Spec	Value
Part Number	1172472
Type	Definite Purpose Contactor
Brand	Tempstar (ICP/Heil)
Poles	1-Pole
Contact Rating	30A
Coil Voltage	24V
Feature	Integrated Shunt

Compatibility

Direct OEM fit for the Tempstar TSH536HKA200 and shared ICP/Heil/Comfortmaker condensing units using a 1-pole 30A definite-purpose contactor with a 24V coil. Verify your existing coil voltage and amp rating before installing.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker; verify zero voltage with a multimeter.
Access — Remove the condenser unit's electrical access panel.
Document — Photo all line, load, and 24V coil wiring before disconnecting.
Remove — Transfer or label wires one at a time, then unscrew the old contactor from the bracket.
Install — Mount the new contactor and reconnect each wire to the matching terminal per your photo.
Test — Restore power, call for cooling, and confirm the contactor pulls in and the compressor and fan start.

Signs You Need a Replacement

Outdoor unit hums but compressor/fan won't start
Visibly pitted, burned, or welded contacts
Chattering or buzzing contactor
Intermittent cooling or unit that won't shut off

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

Tempstar 1-Pole 30A Contactor fo...

$29.00
