Tempstar 1-Pole 30A Contactor for TSH536GKA100 — 24V Coil with Shunt | Ships Today

Name: Tempstar 1-Pole 30A Contactor for TSH536GKA100 — 24V Coil with Shunt | Ships Today
Brand: Tempstar
SKU: 1172472-GEN
Price: 32.95 USD
Availability: InStock

SKU: 1172472-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

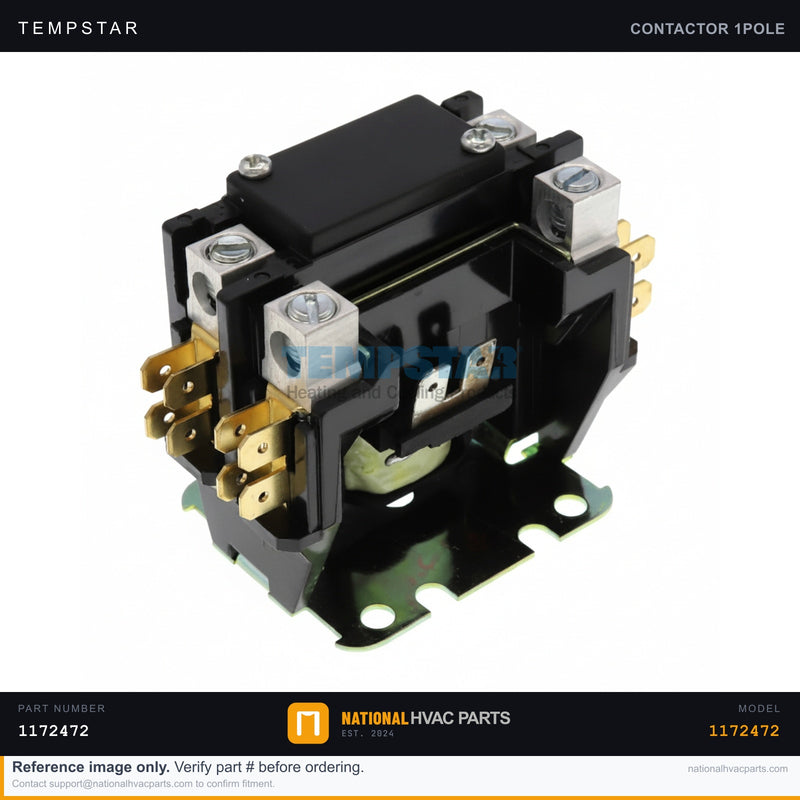

This is the OEM definite-purpose contactor (part number 1172472) for the Tempstar TSH536GKA100 condensing unit. It is a single-pole, 30-amp device with a 24-volt control coil and an integrated shunt. The contactor is the electrical switch that energizes the compressor and condenser fan motor each time the thermostat calls for cooling. When the coil is energized by the 24V control signal, the contacts close and pass line voltage to the outdoor unit; when the call ends, the contacts open. Contactors are one of the most common failure points in a condensing unit because the contacts arc and pit every cycle. Typical failure symptoms include a humming or chattering sound at the unit, pitted or welded contacts that leave the compressor running continuously, or an outdoor unit that will not start even though the thermostat is calling.

Specifications

Spec	Value
OEM Part Number	1172472
Type	Definite Purpose Contactor
Brand	Tempstar
Poles	1-Pole (Single Pole)
Contact Rating	30 Amps
Coil Voltage	24 VAC
Features	Integrated Shunt
Fitment	OEM Replacement

Compatibility

This contactor is the factory-specified replacement for the Tempstar TSH536GKA100 outdoor unit. The same 1172472 contactor is shared across many ICP-family condensing units (Tempstar, Heil, Comfortmaker, Arcoaire), so it also fits a wide range of equivalent models. Always confirm your existing contactor is single-pole, 30A, with a 24V coil before installing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and the breaker, then verify zero voltage across the line terminals with a multimeter.
Access — Remove the electrical access panel on the condensing unit.
Document — Photograph all wire connections before disconnecting anything.
Remove — Note the line, load, and 24V coil wires, then transfer them one at a time from the old contactor to the new one to avoid mistakes. Unscrew and remove the old contactor.
Install — Mount the new contactor, reconnect each wire to its matching terminal per your photo, and confirm the 24V coil leads are landed correctly.
Test — Restore power and run a cooling call; verify the contactor pulls in cleanly and the compressor and fan start.

Signs You Need a Replacement

Loud humming, buzzing, or chattering from the outdoor unit
Burned, pitted, or welded contacts
Compressor runs continuously and will not shut off (stuck closed)
Outdoor unit fails to start on a cooling call (stuck open)

Shipping & Returns

Ships same day on orders placed before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days
