Tempstar 1-Pole 30A Contactor for TSH524HKA200 — 24V Coil w/ Shunt | Ships Today

Name: Tempstar 1-Pole 30A Contactor for TSH524HKA200 — 24V Coil w/ Shunt | Ships Today
Brand: Tempstar
SKU: 1172472-GEN
Price: 32.95 USD
Availability: InStock

SKU: 1172472-GEN Brand: Tempstar

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

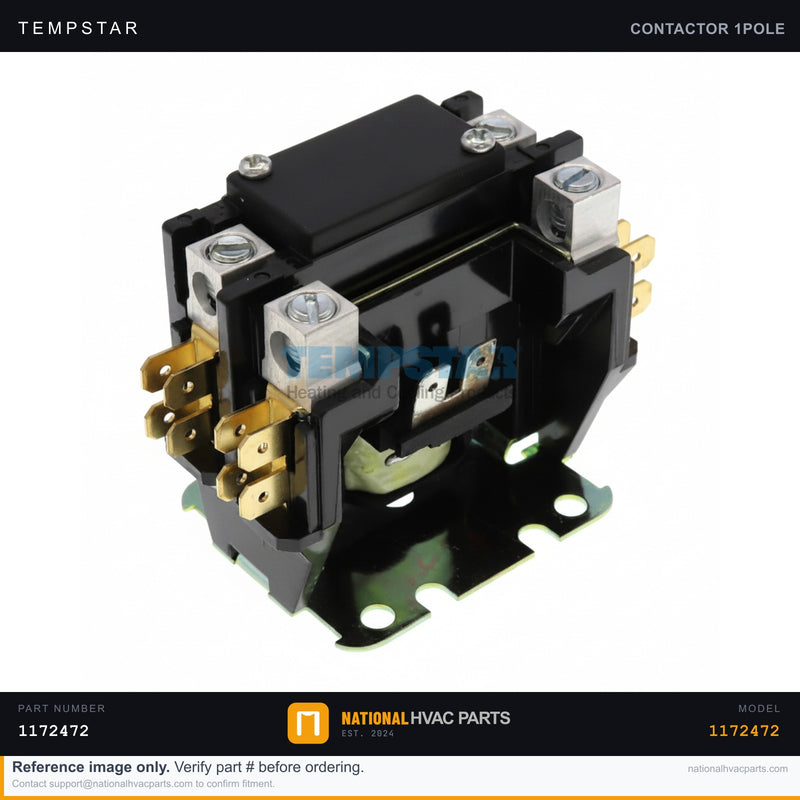

This OEM single-pole definite-purpose contactor (part 1172472) switches the compressor and condenser-fan load on your Tempstar TSH524HKA200. Rated 30 amps with a 24V coil and an integrated shunt, it energizes when the thermostat calls for cooling and the control board sends 24V to the coil. Contactors are a top wear item: the contacts pit and arc over thousands of cycles, leading to chattering, welded contacts that won't drop out, or a no-start when the coil fails. Symptoms include a buzzing outdoor unit, a compressor that won't engage, or burnt/pitted contact faces. A genuine ICP/Heil contactor restores clean, reliable switching at the factory rating.

Specifications

Spec	Value
Part Number	OEM 1172472
Type	1-Pole Definite Purpose Contactor w/ Shunt
Brand	Tempstar (ICP / Heil)
Rating	30 Amp
Coil Voltage	24V
Poles	1
Fit	OEM factory replacement

Compatibility

Direct factory replacement for the Tempstar TSH524HKA200 condensing unit. The 1172472 contactor is used across many ICP, Heil, and Comfortmaker single-phase units of this size — confirm your existing part number and coil voltage before ordering.

Installation Guide

Safety First — Disconnect power at the disconnect and breaker, then verify zero voltage with a multimeter.
Access — Remove the service panel on the condensing unit.
Document — Photograph all line, load, and coil wiring before disconnecting.
Remove — Transfer wires one at a time or label them; unscrew the old contactor from its bracket.
Install — Mount the new contactor and reconnect line, load, and 24V coil leads per your photo.
Test — Restore power, call for cooling, and confirm the contactor pulls in and the compressor/fan start.

Signs You Need a Replacement

Loud buzzing or chattering at the outdoor unit
Compressor/fan won't start even with a cooling call
Contacts welded closed — unit runs constantly
Pitted, burnt, or melted contact faces

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
