Overview

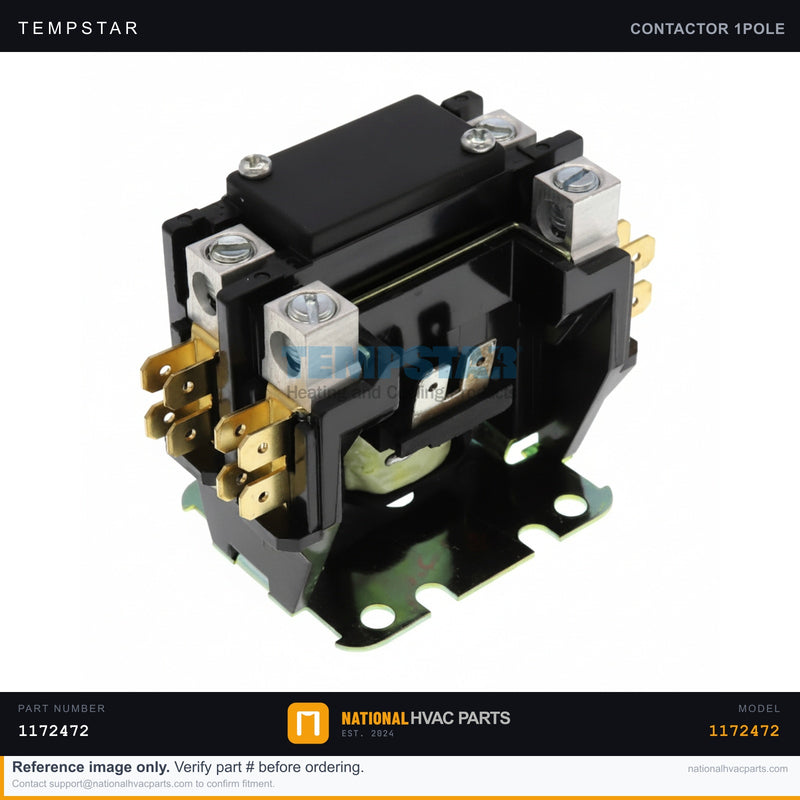

This is a genuine OEM single-pole 30 amp definite purpose contactor with a 24V coil and integrated shunt (part 1172472) for the Tempstar T4H524GKD100. The contactor is the high-voltage switch that powers the compressor and condenser fan. When the thermostat calls for cooling, the 24V coil pulls the contacts closed, sending line voltage to the compressor. Contactors are one of the most common HVAC failure points — their contacts pit, burn, and weld over thousands of cycles, and the coil can fail open. Symptoms include a compressor that won't start, chattering or buzzing at the contactor, or a condenser that runs continuously because the contacts have welded shut.

Specifications

Compatibility

Designed for the Tempstar T4H524GKD100 and other ICP / Heil / Comfortmaker condensing units using a 1-pole 30A 24V contactor. Verify amperage, pole count, and coil voltage against your existing part before installing.

Installation Guide

1. Safety First — Disconnect power at the disconnect and breaker, verify zero voltage with a multimeter.
2. Access — Remove the condenser service panel.
3. Document — Photograph every wire on the line, load, and coil terminals before disconnecting.
4. Remove — Move wires one at a time to the new contactor, or label them; unscrew the old contactor from its bracket.
5. Install — Mount the new contactor and reconnect each wire to the matching terminal per your photo.
6. Test — Restore power, call for cooling, and confirm the contactor pulls in and the compressor/fan start.

Signs You Need a Replacement

• Pitted, burned, or welded contacts
• Loud chatter or buzzing when energized
• Compressor won't start on a cooling call
• Condenser runs nonstop (contacts stuck closed)

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
