What are the specs for this Pressure Switch?

The correct replacement for Goodman model ACVC950915DXAD Furnace — 0130F00070 is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Goodman equipment which lists the model number ACVC950915DXAD Furnace — 0130F00070.

Is this pressure switch compatible with Bryant or Payne systems too?

Many Goodman parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Goodman

OEM Goodman Pressure Switch for ACVC950915DXAD Furnace — 0130F00070

Name: OEM Goodman Pressure Switch for ACVC950915DXAD Furnace — 0130F00070
Brand: Goodman
SKU: 0130F00070-GEN
Price: 13.95 USD
Availability: InStock

SKU: 0130F00070-GEN Brand: Goodman

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

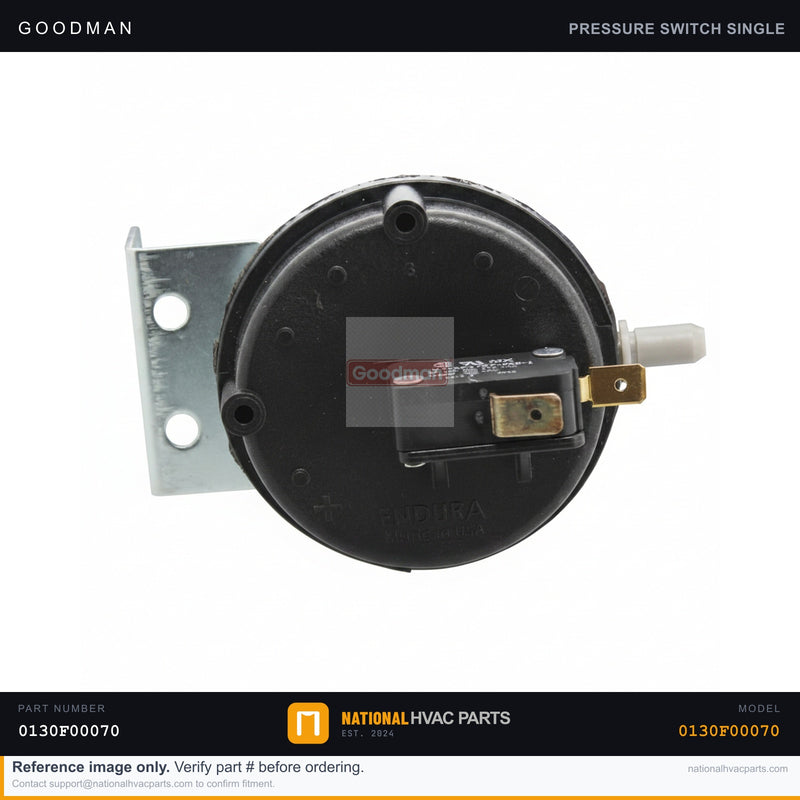

Goodman 0130F00070 Furnace Pressure Switch

The Goodman 0130F00070 is a genuine OEM air-proving pressure switch engineered for the Goodman/Amana ACVC950915DXAD 95% AFUE gas furnace. This safety control monitors negative pressure (vacuum) in the venting system and confirms the inducer motor is moving combustion gases before the control board allows ignition. A failed or out-of-spec switch is a common cause of furnaces that lock out, short-cycle, or throw a pressure-switch fault code.

Specifications

Part Number: 0130F00070
Type: Single-stage normally-open air pressure switch
Connection: 1/4 in. hose port, spade terminals
Function: Combustion air / vent proving safety
Compatibility: Goodman/Amana ACVC950915DXAD furnace

OEM vs. Generic

This is a factory OEM Goodman component built to the exact trip-point pressure (W.C.) the furnace control board expects. Generic substitutes often carry an approximate setpoint that can cause nuisance lockouts in two-stage furnaces. We recommend OEM for guaranteed staging accuracy and warranty compliance.

Install Difficulty: Easy to Moderate

Disconnect power, remove the hose and the two spade connectors, unscrew the switch, and reverse. Most homeowners with basic tools complete this in 15–20 minutes. Always verify vent tubing is clear of condensate before replacing.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

OEM Goodman Pressure Switch for ...

$13.95

Frequently Asked Questions

Does this Pressure Switch fit my Goodman ACVC950915DXAD Furnace — 0130F00070?

Yes. This is the factory-specified OEM pressure switch for the Goodman ACVC950915DXAD Furnace — 0130F00070. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the pressure switch on my Goodman ACVC950915DXAD Furnace — 0130F00070?

Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.

My furnace shows a pressure switch error. What do I replace?

Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.

Is this pressure switch compatible with Bryant or Payne too?

Many Goodman parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Goodman pressure switch?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.
