Gas Valves
How to Choose the Right HVAC Gas Valve
The gas valve controls the flow of natural gas or propane to the burners in your furnace, boiler, or water heater. Modern HVAC systems use combination gas valves that integrate the gas regulator, safety shutoff, and pilot or direct ignition controls into a single unit. When a gas valve fails, the furnace cannot light or may produce irregular flame patterns. Gas valves are safety-critical components that must be replaced with the exact OEM part.

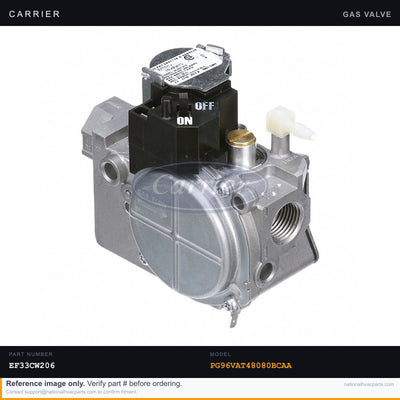

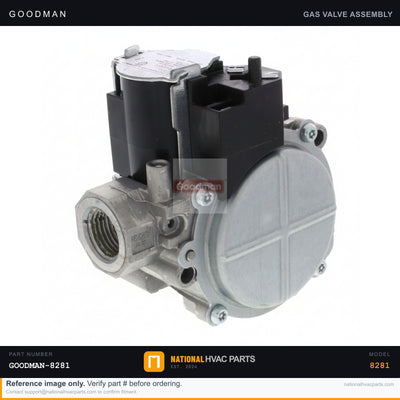

Combination Gas Valves
Most residential furnaces use a 24V combination gas valve that receives a signal from the control board to open during the ignition sequence. These valves include a built-in pressure regulator that maintains consistent gas pressure to the burners regardless of fluctuations in the supply line. Common models include the Honeywell VR8205 and VR8304 series, White-Rodgers 36G and 36J series, and Robertshaw 7200 series.
Natural Gas vs LP (Propane)

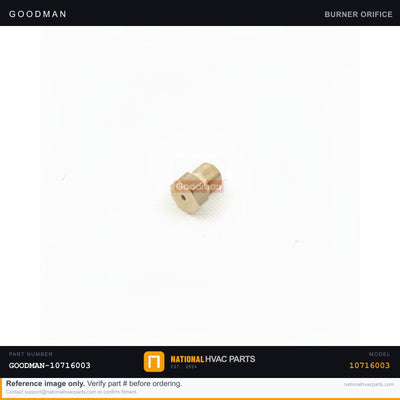

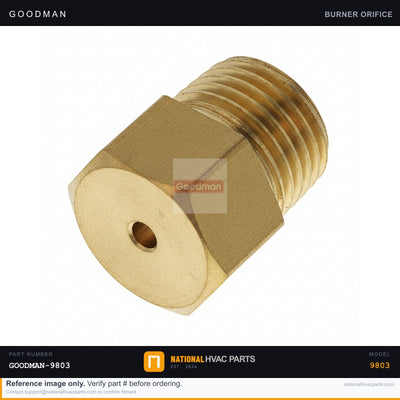

Gas valves are calibrated for either natural gas or LP (propane) operation. Natural gas operates at lower pressure (3.5 inches WC) while propane operates at higher pressure (10-11 inches WC). Some valves can be converted between fuel types by changing the regulator spring and orifices, but many modern valves are factory-set for one fuel type. Always verify the fuel type matches your installation.
Two-Stage Gas Valves
Two-stage gas valves operate at two different firing rates: a lower rate for mild weather (typically 60-70% capacity) and full rate for cold conditions. This provides better comfort and efficiency compared to single-stage operation. Two-stage valves require a compatible two-stage control board and thermostat to function properly. Replacing a two-stage valve with a single-stage will eliminate the low-fire capability.
Signs Your Gas Valve Needs Replacement
Symptoms include the furnace not lighting despite a working igniter and pressure switch, gas smell near the valve when it should be closed, the valve clicking but not opening, delayed ignition with a loud bang when the burners light, or the valve not closing completely when the heating cycle ends. Never attempt to repair a gas valve — always replace with the correct OEM part.
Finding Your Replacement
Note the complete part number from the label on your existing gas valve. Use our Look Up by Model Number tool above to find the exact replacement. Gas valve replacement should be performed by a licensed HVAC technician. Every order placed before 3 PM CST ships same day from National HVAC Parts.
Frequently Asked Questions
How do I know if my gas valve is actually bad?
Before replacing the gas valve ($150-$250), rule out cheaper causes. Check the flame sensor ($15) — a dirty sensor causes the valve to shut off after 3-7 seconds. Check the igniter ($25-$40) — if it doesn't glow, the control board won't open the gas valve. Test the valve's solenoid coils with a multimeter — you should read 24V AC when the board calls for heat. If you have 24V at the valve but no gas flow, the valve has failed internally.
Can I repair a gas valve or does it need full replacement?
Gas valves cannot be repaired — they're sealed assemblies with internal solenoids and regulators. When they fail, the entire valve must be replaced. Never attempt to disassemble or adjust the internal regulator — this voids the safety certification and creates a gas leak risk.
What's the difference between a single-stage and two-stage gas valve?
A single-stage valve has one setting — fully open or fully closed. A two-stage valve has a low-fire and high-fire setting, controlled by the furnace board. Two-stage valves provide quieter, more efficient operation at low-fire and full capacity at high-fire during extreme cold. You must replace with the same type — a single-stage valve won't work in a two-stage furnace.
Are Honeywell and White-Rodgers gas valves interchangeable?
Not directly — they have different mounting patterns, gas port orientations, and wiring connections. Always replace with the same brand and model specified for your furnace. Cross-referencing is possible in some cases (Honeywell VR8200 vs White-Rodgers 36J series), but the manifold pressure settings and port positions must match exactly. Use your furnace model number to find the correct valve.
Is replacing a gas valve a DIY job?
It's an intermediate DIY job but involves working with gas lines, which carries risk. You'll need to shut off the gas supply, disconnect the old valve, transfer the manifold pressure regulator settings to the new valve, and leak-test all connections with soapy water after installation. If you're not comfortable working with gas piping, hire a licensed technician. The part itself is the major cost — labor is typically $100-$150 on top.
