OEM Goodman Wiring Harness for WGHP4436AAE — B1225020

Name: OEM Goodman Wiring Harness for WGHP4436AAE — B1225020
Brand: Goodman
SKU: B1225020-GEN
Price: 9.95 USD
Availability: InStock

SKU: B1225020-GEN Brand: Goodman

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

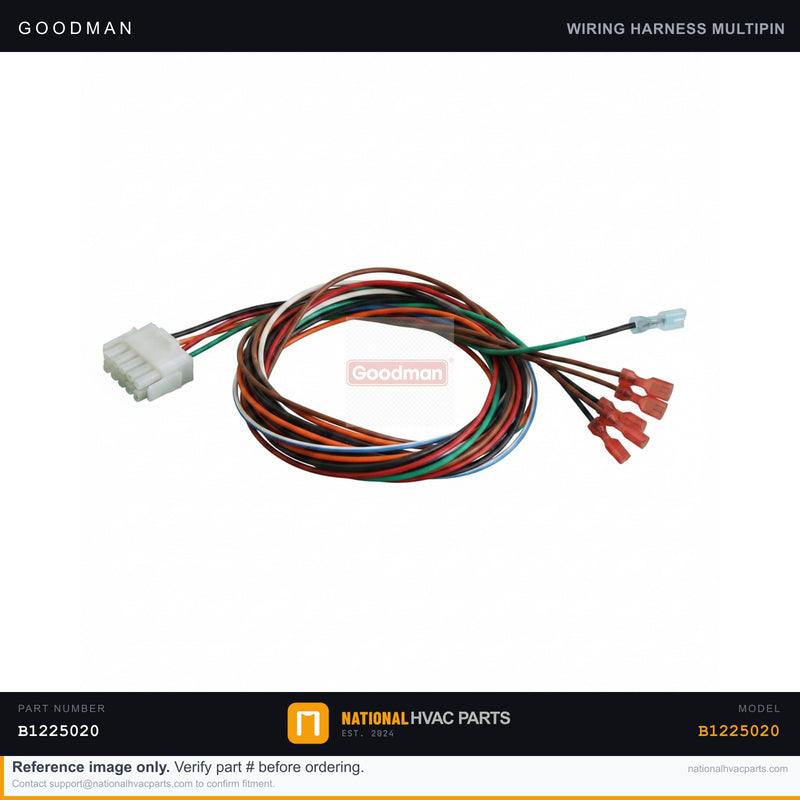

The Goodman B1225020 Wiring Harness is a genuine OEM replacement assembly engineered for the Goodman WGHP4436AAE packaged heat pump and air conditioner. This harness consolidates the low- and high-voltage connections inside the control compartment, routing power and signal between the contactor, control board, capacitor, and motor leads. Brittle insulation, corroded terminals, or a chafed wire that shorts to the cabinet are common failure points — a fresh factory harness restores safe, reliable connections without splicing individual conductors by hand.

Specifications

OEM Part Number: B1225020
Brand: Goodman
Compatible Model: WGHP4436AAE
Type: Pre-terminated wiring harness assembly
Equipment: Packaged Air Conditioner / Heat Pump
Factory-crimped connectors and color-coded leads

OEM vs. Generic

This is the authentic Goodman OEM harness, manufactured to the exact wire gauge, connector style, and lead length your unit requires. Universal harnesses force manual re-pinning and polarity checks that invite miswiring and nuisance trips. The OEM part offers plug-and-play connectors so the repair matches factory specs on the first try.

Installation Difficulty

Rating: Easy–Moderate. Typically a 20–30 minute job with basic hand tools. Always shut off power at the breaker before opening the control box. Photograph the existing routing, move connectors one at a time to prevent cross-wiring, and verify each terminal is fully seated. If you are not comfortable around line-voltage HVAC wiring, hand this off to a licensed HVAC technician.
