What are the specs for this Pressure Switch?

The correct replacement for Goodman model ACES960804CNAA — 0130F00439 is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Goodman equipment which lists the model number ACES960804CNAA — 0130F00439.

Is this pressure switch compatible with Bryant or Payne systems too?

Many Goodman parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Goodman

OEM Goodman -1.27" WC Pressure Switch for ACES960804CNAA — 0130F00439

Name: OEM Goodman -1.27" WC Pressure Switch for ACES960804CNAA — 0130F00439
Brand: Goodman
SKU: 0130F00439-GEN
Price: 47.94 USD
Availability: InStock

SKU: 0130F00439-GEN Brand: Goodman

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

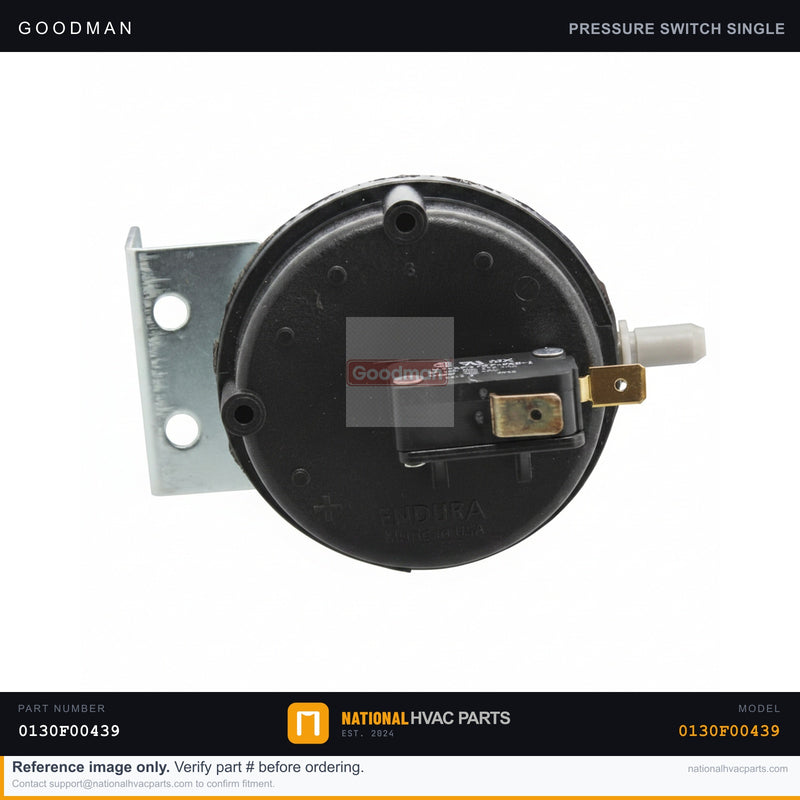

The Goodman 0130F00439 Pressure Switch is a genuine OEM combustion-air/draft safety control factory-calibrated to -1.27" water column (rose-colored body) for the ACES960804CNAA gas furnace. It verifies that the inducer motor is producing adequate venting draft before allowing ignition, preventing the furnace from firing if the flue is blocked or the inducer fails.

Specifications

Trip point: -1.27" WC (negative pressure)
Color code: Rose
Type: Single-stage diaphragm pressure switch, normally open
Function: Confirms inducer draft / vent safety proving
Compatibility: Goodman ACES960804CNAA condensing furnaces

OEM vs. Generic

The OEM 0130F00439 is set to the precise -1.27" WC setpoint your furnace requires. Pressure switches are setpoint-specific — installing a generic switch with the wrong WC rating is the #1 cause of furnaces that lock out, short-cycle, or run unsafely. Matching the rose -1.27" rating guarantees correct draft proving and warranty integrity.

Install Difficulty

Easy–Moderate (2/5). Plan for 15–20 minutes: kill power, label and detach the silicone sensing hose(s), unplug the wire harness, remove the mounting screws, and reverse for the new switch. Verify the hose seats fully and is free of moisture. When in doubt, use a qualified HVAC technician.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

OEM Goodman -1.27" WC Pressure S...

$47.94

Frequently Asked Questions

Does this Pressure Switch fit my Goodman ACES960804CNAA — 0130F00439?

Yes. This is the factory-specified OEM pressure switch for the Goodman ACES960804CNAA — 0130F00439. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the pressure switch on my Goodman ACES960804CNAA — 0130F00439?

Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.

My furnace shows a pressure switch error. What do I replace?

Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.

Is this pressure switch compatible with Bryant or Payne too?

Many Goodman parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Goodman pressure switch?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
