What are the specs for this Pressure Switch?

The correct replacement for Goodman model ACSH960905DXAA — 0130F00069 is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your Goodman equipment which lists the model number ACSH960905DXAA — 0130F00069.

Is this pressure switch compatible with Bryant or Payne systems too?

Many Goodman parts are cross-compatible with Bryant and Payne systems since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across multiple brand labels with different model numbers. To verify cross-compatibility, check your Bryant or Payne equipment service manual for cross-compatible part numbers, or contact info@nationalhvacparts.com with your model number for confirmation.

Goodman

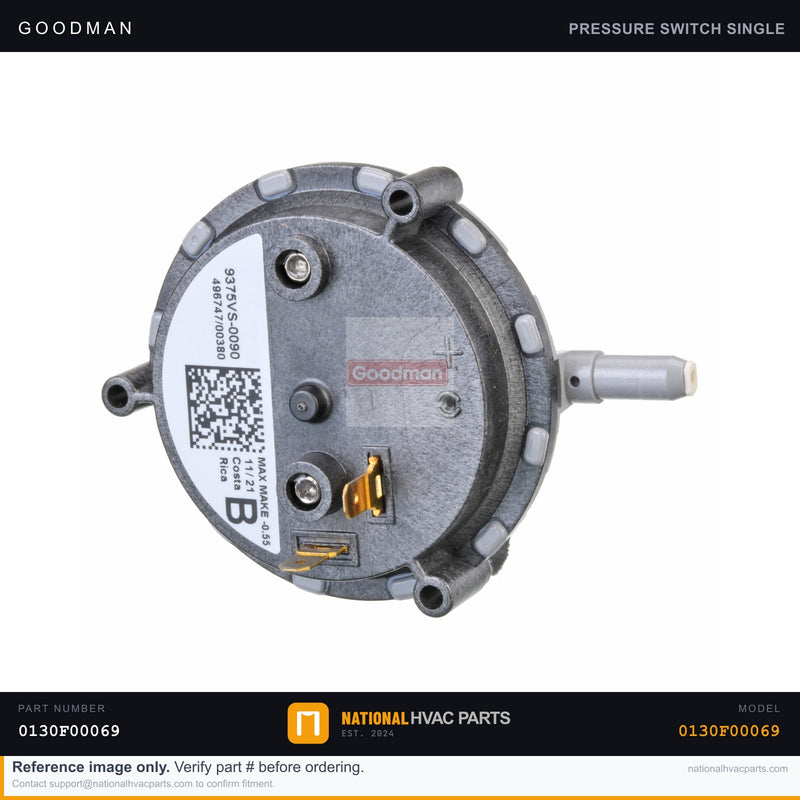

OEM Goodman -0.95" WC Pressure Switch for ACSH960905DXAA — 0130F00069

Name: OEM Goodman -0.95" WC Pressure Switch for ACSH960905DXAA — 0130F00069
Brand: Goodman
SKU: 0130F00069-GEN
Price: 31.14 USD
Availability: InStock

SKU: 0130F00069-GEN Brand: Goodman

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

The genuine OEM Goodman 0130F00069 Pressure Switch is a draft-proving safety control for the Goodman ACSH960905DXAA gas furnace and compatible models. It verifies that the inducer motor is moving combustion gases properly before the ignition sequence is allowed to begin, then continuously monitors draft during the heat cycle. If venting is blocked or the inducer fails, the switch prevents ignition — a key safety function against unsafe combustion.

Specifications

Trip point: -0.95" Water Column (WC)
Configuration: Normally Open (NO), closes on negative pressure
Type: Single-stage diaphragm pressure switch
OEM Part Number: 0130F00069
Fits: Goodman ACSH960905DXAA and compatible furnaces

OEM vs. Generic

The OEM 0130F00069 is calibrated to the exact -0.95" WC set point this furnace requires. Pressure switches with the wrong set point are the leading cause of furnaces that lock out on a flashing error code or short-cycle. Generic substitutes rarely match both the set point and the hose-port orientation, so genuine OEM is the safest, most reliable choice.

Install Difficulty

Easy to Moderate (2/5). Cut power, photograph the wiring and tubing first, transfer the spade terminals and silicone hose to the new switch in the same orientation, and mount with the original screws. Verify continuity with a meter on a known-good draft. Confirm your furnace model before ordering.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

OEM Goodman -0.95" WC Pressure S...

$31.14

Frequently Asked Questions

Does this Pressure Switch fit my Goodman ACSH960905DXAA — 0130F00069?

Yes. This is the factory-specified OEM pressure switch for the Goodman ACSH960905DXAA — 0130F00069. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the pressure switch on my Goodman ACSH960905DXAA — 0130F00069?

Difficulty: Medium (20–30 min)
Step 1: Turn off power. Step 2: Locate pressure switch near draft inducer. Step 3: Note tubing orientation. Step 4: Disconnect tubing and wires. Step 5: Remove screw, install new switch. Step 6: Reconnect tubing and wires, restore power.

My furnace shows a pressure switch error. What do I replace?

Furnace LED showing pressure switch error = switch not detecting draft inducer airflow. Try first: clear the rubber tubing to the switch (often clogged with condensation). If problem persists, replace the pressure switch.

Is this pressure switch compatible with Bryant or Payne too?

Many Goodman parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my Goodman pressure switch?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
