ICP X-13 ECM Blower Motor Control for WJH342000KTP0A1 — 1/2 HP | Ships Today

Overview

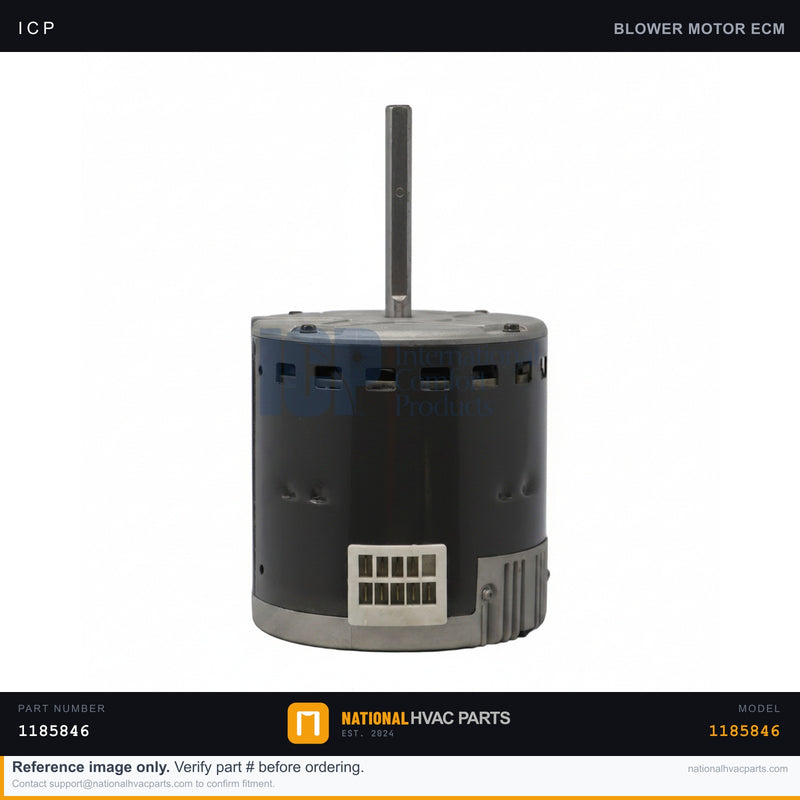

This OEM X-13 ECM motor control (part 1185846) is the 1/2 HP constant-torque blower motor control module for the ICP/Tempstar/Heil WJH342000KTP0A1 air handler. The X-13 ECM platform delivers energy-efficient, multi-tap airflow control and runs significantly quieter and cooler than a standard PSC motor. The control module manages motor speed based on the tap selected by the control board. Symptoms of failure include a blower that won't start, runs at the wrong speed, surges, or stops intermittently — often with no fault at the thermostat. A failed ECM control is a frequent cause of weak airflow and comfort complaints.

Specifications

Compatibility

Direct OEM fit for the ICP/Tempstar/Heil model WJH342000KTP0A1. The 1/2 HP X-13 ECM control matches the factory blower assembly and tap configuration.

Installation Guide

1. Safety First — Disconnect power at the breaker and verify zero voltage with a multimeter; allow the motor to fully stop before servicing.
2. Access — Remove the blower compartment service panel to reach the motor and control module.
3. Document — Photograph the line-voltage harness and the 16-pin control/tap connector before disconnecting.
4. Remove — Unplug both connectors and separate the control module from the motor end-shield.
5. Install — Attach the new control module, reconnect both harnesses fully seated, and confirm the correct tap selection.
6. Test — Restore power, call for fan, and verify smooth start-up and proper airflow at each speed.

Signs You Need a Replacement

• Blower won't start or only hums
• Motor runs at incorrect speed or surges
• Intermittent operation or random shutdowns
• Weak airflow with no thermostat fault
