ICP Transformer for YE024G — 24V 40VA | Ships Today

Overview

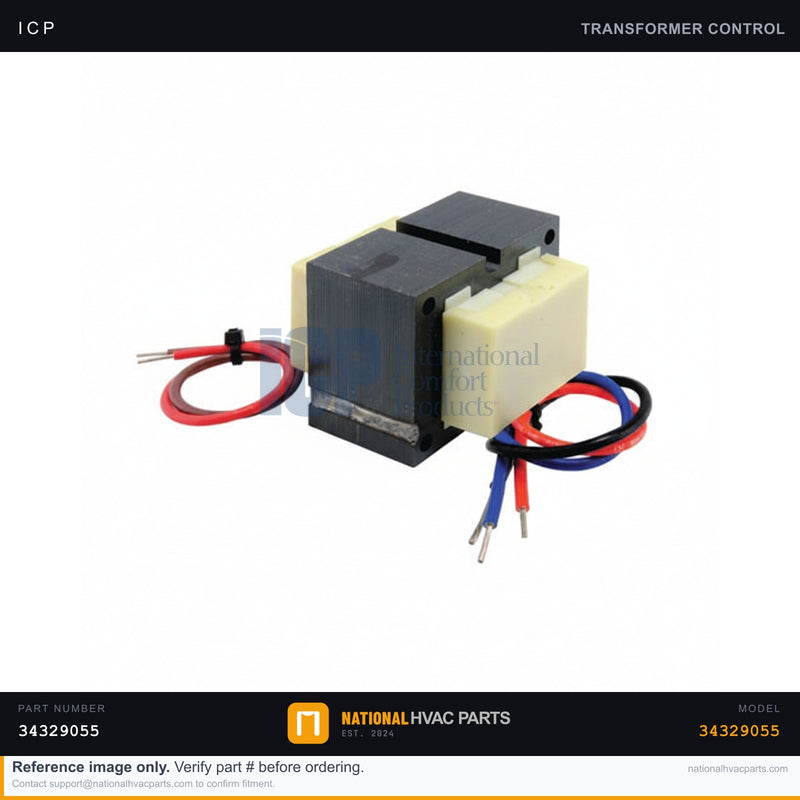

This OEM 24-volt control transformer (part #34329055) supplies low-voltage power to the control circuit of your ICP YE024G heat pump system. It steps line voltage down to the 24V needed to operate the contactor coil, defrost board, thermostat, and reversing valve solenoid. When a transformer fails — usually from a shorted control wire, a stuck contactor, or simple age — the entire low-voltage circuit goes dead: the unit won't energize, the thermostat screen may go blank, and neither heating nor cooling will start. A buzzing, overheating, or visibly scorched transformer is a clear sign of failure.

Specifications

Compatibility

Direct-fit replacement for the ICP YE024G heat pump and other ICP-family equipment (Heil, Tempstar, Comfortmaker) using the 34329055 control transformer. Always confirm the part number on your existing unit before ordering.

Installation Guide

1. Safety First — Disconnect power at the breaker and verify zero voltage with a multimeter.
2. Access — Remove the unit's control-panel service cover.
3. Document — Photograph all primary and secondary wire connections before disconnecting.
4. Remove — Disconnect the wire leads and unscrew the failed transformer from its bracket.
5. Install — Mount the new transformer and reconnect each lead exactly as photographed.
6. Test — Restore power and confirm 24V across the secondary with a multimeter.

Signs You Need a Replacement

• No 24V output / blank thermostat
• Unit will not power on in heat or cool mode
• Visible scorching, melting, or burnt-electrical smell
• Audible buzzing or humming from the transformer

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.
