What amp contactor do I need for my ICP system?

The correct replacement for ICP model YK048G — 24V Coil | Ships Today is this exact part. It is the factory-specified replacement with exact OEM specifications. Using a part with different specifications can cause equipment damage or void your warranty. You can verify this by checking the data plate on your ICP equipment which lists the model number YK048G — 24V Coil | Ships Today.

My AC clicks but the compressor does not turn on. What is wrong?

Clicking from the outdoor unit without the compressor starting usually means a worn contactor. The contactor is the relay that sends power to the compressor. When its contacts are pitted or worn, it clicks but cannot establish a solid electrical connection. Other symptoms: visible pitting or burn marks on the contactor face, AC works intermittently, or buzzing from the contactor.

ICP

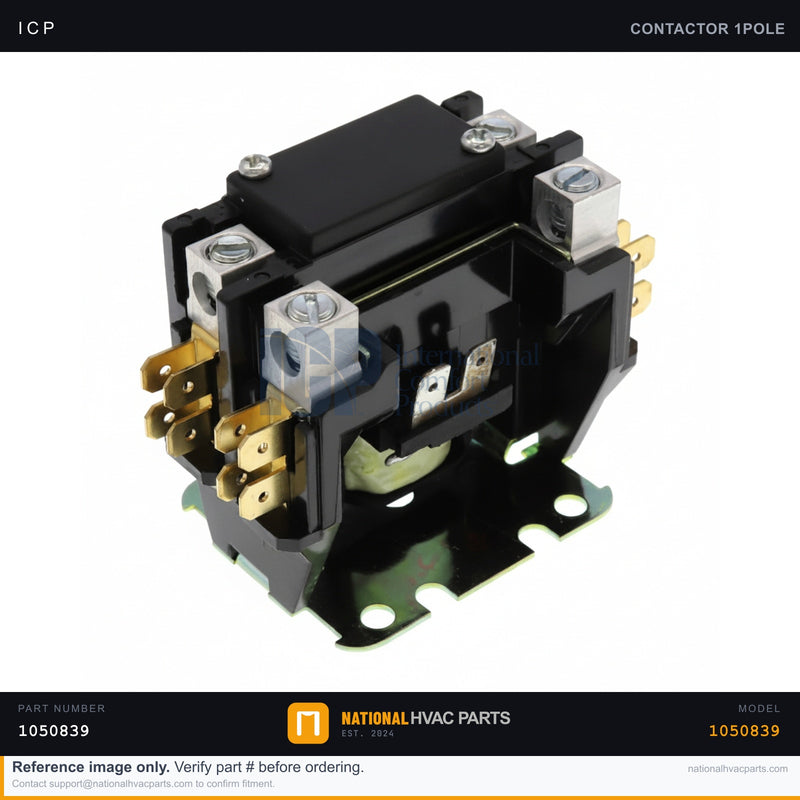

ICP Single-Pole 35A Contactor for YK048G — 24V Coil | Ships Today

Name: ICP Single-Pole 35A Contactor for YK048G — 24V Coil | Ships Today
Brand: ICP
SKU: 1050839
Price: 38.94 USD
Availability: InStock

SKU: 1050839 Brand: ICP

OEM Guaranteed

Same-Day Ship

30-Day Returns

Secure Checkout

Texas CMBL #19328542014

SAM.gov Registered

Govt POs Accepted

Overview

This OEM single-pole definite-purpose contactor (Part #1050839) energizes the compressor and outdoor fan on your ICP YK048G heat pump. Rated at 35 amps with a 24-volt coil, it closes its contacts on a thermostat call and sends line voltage to the load. Contactors fail from pitted or welded contacts, a burned-out coil, or chattering from low control voltage — leaving a unit that won't start, won't shut off, or buzzes loudly at the disconnect. A fresh contactor restores reliable starts and protects the compressor.

Specifications

Spec	Value
Part Number	1050839
Type	Single-Pole (1P) Definite Purpose
Brand	ICP
Current Rating	35A
Coil Voltage	24V

Compatibility

Direct OEM fit for the ICP / Tempstar / Heil YK048G outdoor unit and other condensing units using a 1-pole 35A 24V coil contactor. Verify amp rating, pole count, and coil voltage against the part you are removing.

Installation Guide

Safety First — Disconnect power at the outdoor disconnect and verify zero voltage with a multimeter.
Access — Remove the control-panel service cover.
Document — Photograph all wire positions before disconnecting.
Remove — Note the line, load, and 24V coil leads, then unscrew the old contactor and transfer wires one at a time.
Install — Mount the new contactor and reconnect each wire per your photo.
Test — Restore power and confirm the contacts pull in on a call for cooling.

Signs You Need a Replacement

Compressor or fan won't start, or starts intermittently
Loud buzzing or chattering at the contactor
Visibly pitted, burned, or welded contacts
24V at the coil but contacts won't close

Shipping & Returns

Ships same day before 3 PM CST. 30-day returns. Backed by the National HVAC Parts fitment guarantee.

Shipping Information

Orders placed before 3PM CST ship same business day
Standard delivery: 2-5 business days
Express shipping available at checkout
Free shipping on orders over $75
Tracking number emailed upon shipment

Return Policy

30-day returns on unused parts in original packaging
Electrical parts (capacitors, contactors, control boards) are final sale once installed
Email info@nationalhvacparts.com to initiate a return
Refunds processed within 5-7 business days

ICP Single-Pole 35A Contactor fo...

$38.94

Frequently Asked Questions

Does this Contactor fit my ICP YK048G — 24V Coil | Ships Today?

Yes. This is the factory-specified OEM contactor for the ICP YK048G — 24V Coil | Ships Today. It is a direct drop-in replacement that fits without modification. Always verify the model number on your equipment nameplate before ordering.

How do I replace the contactor on my ICP YK048G — 24V Coil | Ships Today?

Difficulty: Medium (30–45 min)
Step 1: Turn off breaker. Step 2: Open condensing unit panel. Step 3: Photograph ALL wiring on the contactor. Step 4: Label each wire with tape. Step 5: Disconnect wires and remove old contactor. Step 6: Mount new contactor, reconnect wires matching your photo. Step 7: Restore power and test.

My AC clicks but the compressor won’t turn on. What’s wrong?

Clicking from the outdoor unit without the compressor starting = worn contactor. The contactor sends power to the compressor. When its contacts are pitted, it clicks but can’t make solid contact. Look for: visible pitting/burn marks on the contactor face, intermittent operation, or buzzing.

Is this contactor compatible with Bryant or Payne too?

Many ICP parts are cross-compatible with Bryant and Payne since all three brands are manufactured by Carrier Global Corporation. The same physical part is often used across brand labels with different model numbers. To verify: check your Bryant or Payne equipment service manual for cross-compatible part numbers, or email info@nationalhvacparts.com with your model number.

Should I use OEM or aftermarket for my ICP contactor?

OEM recommended for reliability and warranty compatibility. OEM parts match exact factory specifications for proper fit, performance, and safety. While aftermarket alternatives cost less upfront, the risk of improper fit and reduced lifespan usually makes OEM the better value long-term.

How fast does National HVAC Parts ship?

Orders placed before 3:00 PM CST ship the same business day. Standard delivery is 2–5 business days anywhere in the continental United States. Express shipping available at checkout. We ship from Houston, TX to all 50 states. 30-day return policy on all parts.
