ICP Run Capacitor for WPG3424060RKC1 — 2.0 MFD Round | Ships Today

Overview

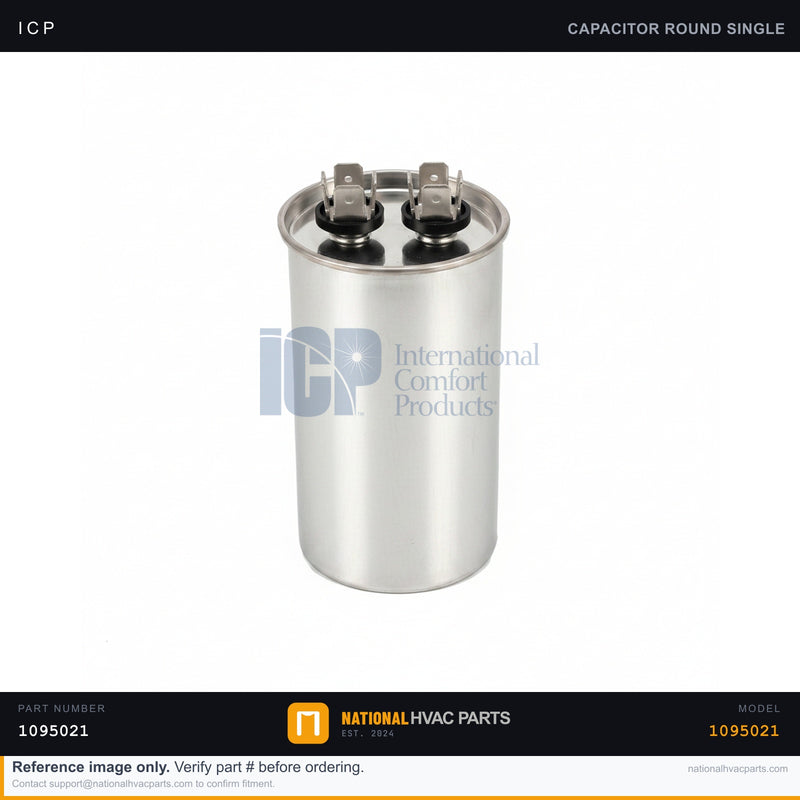

This OEM 2.0 MFD round run capacitor (part number 1095021, supplied with its mounting clamp) provides the steady phase-shift current that keeps the motor it serves running efficiently in the ICP Tempstar Heil WPG3424060RKC1. A run capacitor stores and releases energy each cycle to maintain torque; as it ages it loses microfarad capacity, causing the motor to run hot, draw high amps, hum, or fail to start. A weak or bulged capacitor is one of the most common and least expensive HVAC failures. Always replace with the exact MFD rating — an out-of-spec capacitor shortens motor life.

Specifications

Compatibility

Direct-fit OEM replacement for the ICP Tempstar Heil WPG3424060RKC1. This 2.0 MFD round capacitor and clamp are common across ICP-family equipment (Comfortmaker, Heil, Tempstar, Arcoaire); match the MFD value and voltage rating to the original before installing.

Installation Guide

1. Safety First — Disconnect power at the disconnect and breaker; verify zero voltage, then safely discharge the capacitor across its terminals with an insulated resistor.
2. Access — Remove the control/access service panel.
3. Document — Photograph the terminal wiring before disconnecting.
4. Remove — Disconnect the leads, loosen the mounting clamp, and lift out the old capacitor.
5. Install — Secure the new capacitor with its clamp and reconnect each lead exactly per your photo.
6. Test — Restore power and confirm the motor starts cleanly and runs at normal amp draw.

Signs You Need a Replacement

• Motor hums but will not start or is slow to start
• High amp draw or motor overheating and tripping
• Bulged, leaking, or swollen capacitor top
• Measured capacitance is below the 2.0 MFD rating
